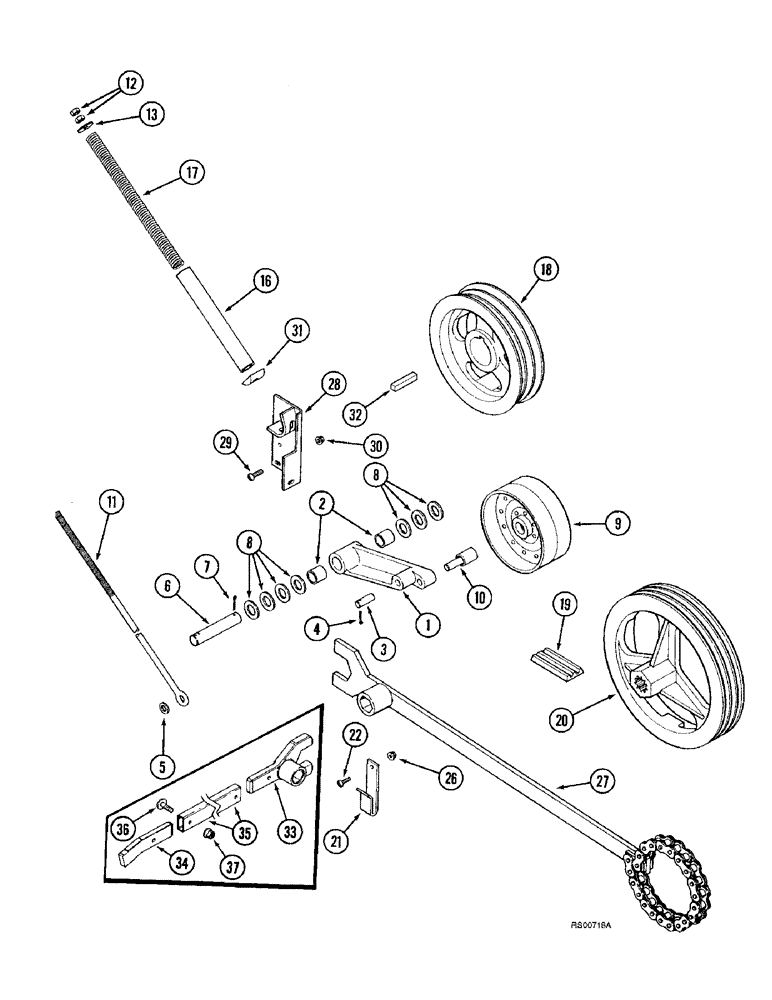

Запчасти Case IH 1680 (9A-14) - SEPARATOR DRIVE PULLEY AND IDLER (13) - FEEDER

1

188205C92

LEVER

ASSEMBLY - drive belt clutch, Includes: Ref. 2 & 3

1шт.

2

1302308C1

BUSHING,25.65mm ID x 31.85mm OD x 28.57mm L

- 1 ID x 1-1/4 OD x 1-1/8 inch wide

2шт.

3

188207C1

PIN

- clutch lever

1шт.

4

432-1216

COTTER PIN,3/16" x 1"

1шт.

5

495-81176

WASHER,21/32" x 1" x .060"

- flat, 21/32 x 1 x 3/64 inch

1шт.

6

1315229C2

PIN,25.4mm OD x 135mm L

- pivot, separator clutch arm

1шт.

7

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

2шт.

8

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

7шт.

9

174757C1

PULLEY

- idler, 8 inch OD, separator belt idler

1шт.

10

559205R91

BEARING ASSY,15.92 mm ID x 30 mm OD x 82.55 mm

- idler pulley

1шт.

11

191592C1

EYEBOLT,Hex, 1/2" - 13 x 813mm

ROD - drive tightener

1шт.

12

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

13

495-81163

WASHER,17/32" x 1 1/2" x .120"

- flat, 17/32 x 1-1/2 x 7/64 inch

1шт.

16

193286C1

TUBE

- drive tightener

1шт.

17

PO121

SPRING

- belt tightener rod

1шт.

18

191463C1

PULLEY

- separator drive, 11 inch OD

1шт.

19

191244C1

BELT,0.63" W x 145.75" L, 3 Ribs

V-BELT , Separator drive, Over center 0.630" W x 145.75" L, 3 Ribs

1шт.

20

191453C1

PULLEY

- driven, 14-3/4 inch OD

1шт.

21

1968787C1

CLIP

- rocking wrench

2шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

26

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

27

1957607C2

SPECIAL WRENCH

WRENCH - rocking, replaces 1307617C1 wrench

1шт.

28

191799C1

SUPPORT

- drive belt tightener pivot

1шт.

30

231-5146

FLANGE NUT,3/8"-16

3шт.

31

194652C1

PIVOT

- rod

1шт.

32

126-179

WOODRUFF KEY,#V, 1/2" x 2-3/4", HT

1шт.

33

1979527C1

WRENCH-HOOK

WRENCH - rocking

1шт.

34

1979751C1

BAR

- rotor rocker

1шт.

35

1979526C1

TUBE

- rocking wrench handle

1шт.

36

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

BOLT - serrated slotted truss head, 3/8 NC x 1-1/4 inch

2шт.

37

231-5146

FLANGE NUT,3/8"-16

2шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

3шт.
