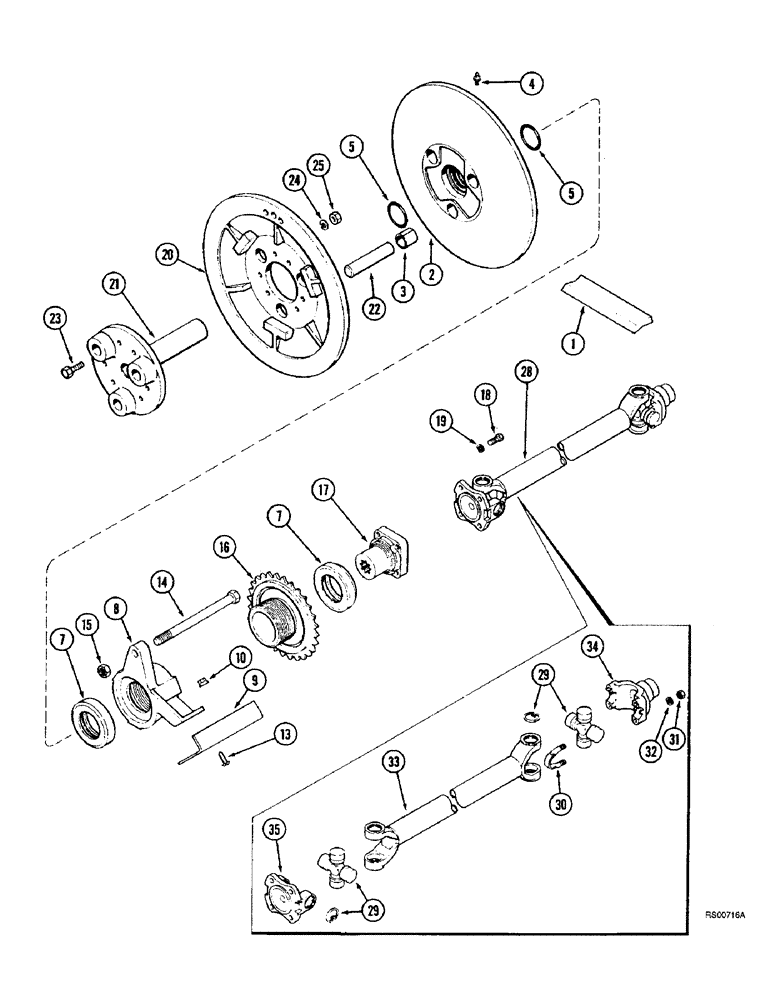

Запчасти Case IH 1680 (9A-10) - SEPARATOR JACKSHAFT DRIVE, P.I.N. JJC0028498 AND AFTER (13) - FEEDER
№
Артикул
Название
Примечание
Количество
1
193945C2
V-BELT,2554.68 mm L
Rotor variable drive, Over center, See Figure 9B-04, Item 14 2554.68 mm L
1шт.
2
1330054C1
PULLEY
ASSEMBLY - rotor drive variable, 17-1/2 inch OD, Includes: Ref. 3
1шт.
3
194665C1
BUSHING
- pulley
3шт.
4
219-86
LUBE NIPPLE,1/8" NPTF
FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch
1шт.
5
238-5226
O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro
2шт.
7
194654C91
BALL BEARING,2.75" ID x 4.481" OD x 0.87"
BEARING - jackshaft thrust
2шт.
8
194394C1
HUB
FITTING - variable pulley female
1шт.
9
188309C3
SUPPORT
- variable pulley limit switch
1шт.
10
231-5146
FLANGE NUT,3/8"-16
2шт.
14
413-12152
BOLT,Hex, 3/4" - 10 x 9-1/2", Gr 5
1шт.
15
329-1412
JAM NUT,Jam, 3/4"-10, G8
1шт.
16
194464C2
SPROCKET
- variable pulley male, 25 teeth
1шт.
17
191542C2
SPLINED COUPLING,12T
COUPLING - universal joint
1шт.
18
426-720
BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 8
- hex, 7/16 NC x 1-1/4 inch, grade 8
4шт.
19
492-11044
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
4шт.
20
188848C1
PULLEY
- rotor drive stationary, 17-1/2 inch OD
1шт.
21
188846C1
HUB
ASSEMBLY - rotor drive pulley, Includes: Ref. 22
1шт.
23
326-828
BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8
6шт.
24
392-21050
LOCK WASHER,1/2"
1/2"
6шт.
25
329-108
NUT,1/2"-13, G8
6шт.
28
191596C91
DRIVE SHAFT
JOINT ASSEMBLY - universal drive, Includes: Ref. 29 - 35
1шт.
29
1300502C1
KIT
- bearing, journal
2шт.
30
1300501C1
U-BOLT,3/8" - 24 x 1.66" W x 1.40" L
- universal joint
2шт.
31
425-116
NUT,3/8" - 24, Gr 5
Hex 3/8"-24, G5
4шт.
32
492-11038
LOCK WASHER,3/8"
4шт.
33
NSS
NOT SOLD SEPARAT
SHAFT - drive
1шт.
34
NSS
NOT SOLD SEPARAT
YOKE - drive
1шт.
35
NSS
NOT SOLD SEPARAT
FLANGE - drive
1шт.
13
477-73816
SERRATED SCREW,Sl Truss Hd, 3/8" x 1"
BOLT - serrated slotted truss head, 3/8 NC x 1 inch
2шт.
Выбрано товаров: 30
