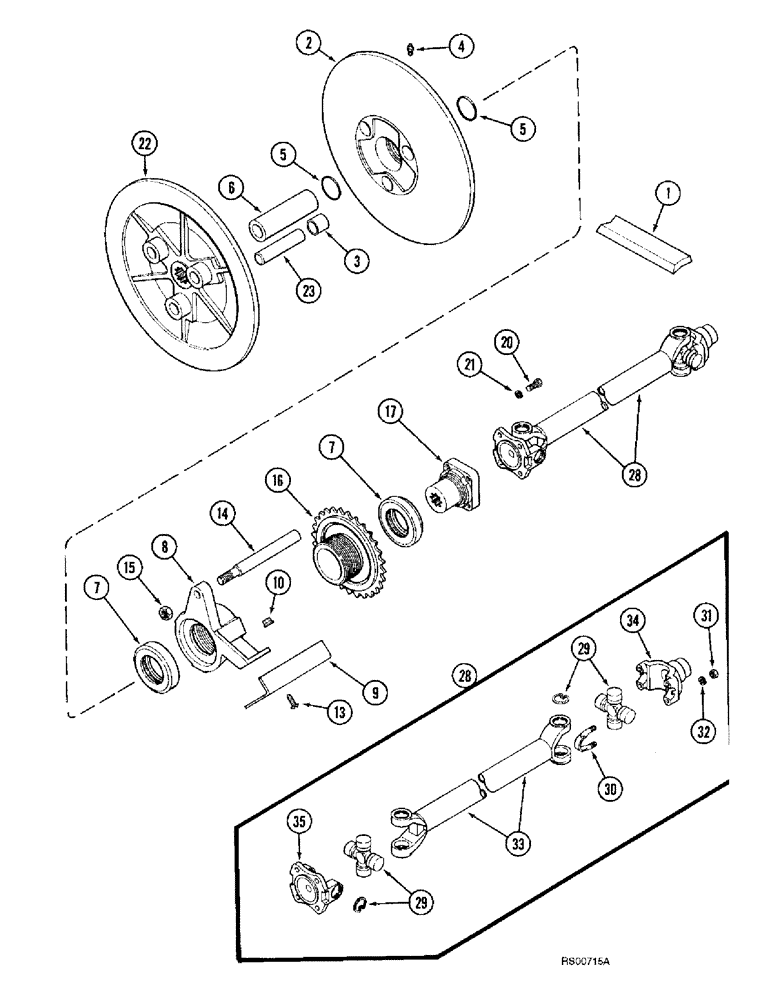

Запчасти Case IH 1680 (9A-08) - SEPARATOR JACKSHAFT DRIVE, PRIOR TO P.I.N. JJC0028498 (13) - FEEDER

1

193945C2

V-BELT,2554.68 mm L

Rotor variable drive, Over center, See Figure 9B-04, Item 14 2554.68 mm L

1шт.

2

193620C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive variable, 17.5 inch OD, Includes: Ref. 3

1шт.

3

194665C1

BUSHING

- pulley

3шт.

4

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - grease, straight, self-tap 1/8 PT x 5/8 inch

1шт.

5

238-5226

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

2шт.

6

191549C2

SLEEVE

- rotor jackshaft

1шт.

7

194654C91

BALL BEARING,2.75" ID x 4.481" OD x 0.87"

BEARING - jackshaft thrust

2шт.

8

194394C1

HUB

FITTING - variable pulley female

1шт.

9

188309C3

SUPPORT

- variable pulley limit switch

1шт.

10

231-5146

FLANGE NUT,3/8"-16

2шт.

14

194496C2

LARGE PIN

STUD - variable stop

1шт.

15

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

16

194464C2

SPROCKET

- variable pulley male, 25 teeth

1шт.

17

191542C2

SPLINED COUPLING,12T

COUPLING - universal joint

1шт.

18

238633R1

WASHER,23.11mm ID x 52.32mm OD x 4.55mm Thk

- flat, 29/32 x 2-3/64 x 1 1/64 inch

1шт.

20

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch

4шт.

21

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

22

193622C92

PULLEY ASSY.

PULLEY ASSEMBLY - rotor drive stationary, 17-1/2 inch OD, Includes: Ref. 23

1шт.

23

191544C2

PIN,28.48mm OD x 127mm L

- pulley

3шт.

28

191596C91

DRIVE SHAFT

JOINT ASSEMBLY - universal drive, Includes: Ref. 29 - 35

1шт.

29

1300502C1

KIT

- bearing, journal

2шт.

30

1300501C1

U-BOLT,3/8" - 24 x 1.66" W x 1.40" L

- universal joint

2шт.

31

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

4шт.

32

492-11038

LOCK WASHER,3/8"

4шт.

33

NSS

NOT SOLD SEPARAT

SHAFT - drive

1шт.

34

NSS

NOT SOLD SEPARAT

YOKE - drive

1шт.

35

NSS

NOT SOLD SEPARAT

FLANGE - drive

1шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
