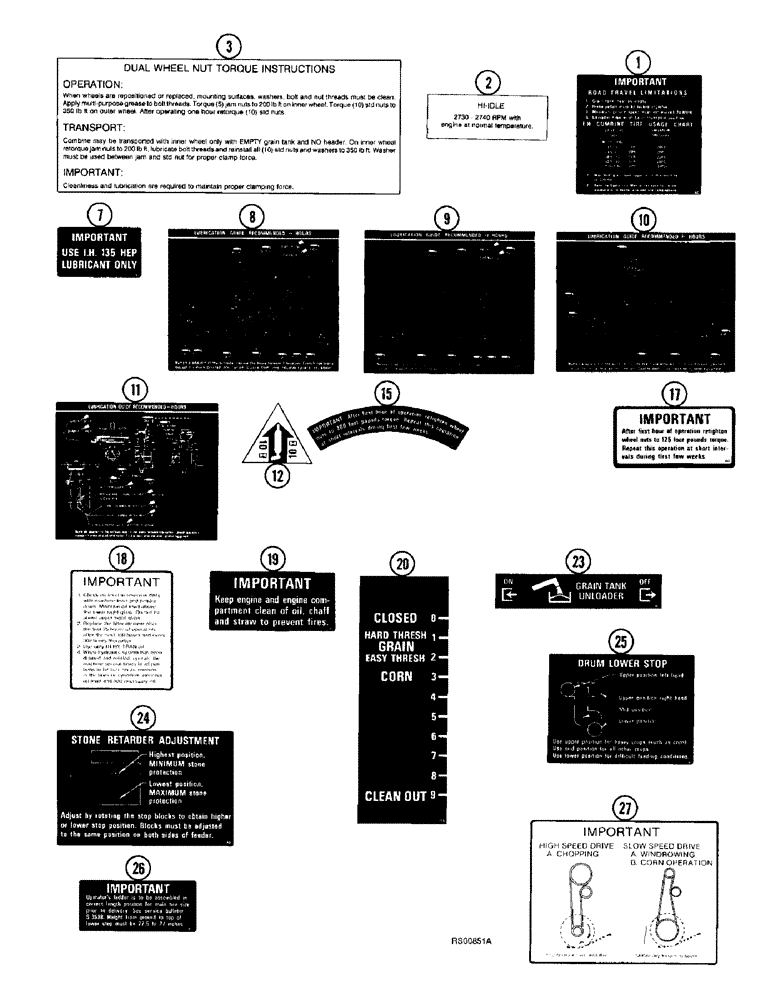

Запчасти Case IH 1680 (9H-32) - DECALS, GENERAL INSTRUCTIONS (12) - CHASSIS

1

1321322C2

DECAL

- tire chart, 208 bushel

1шт.

1

1321320C2

DECAL

- Important, road travel limitations (French)

1шт.

2

1977010C1

DECAL

- engine RPM

1шт.

3

184445C1

DECAL

- dual wheel nut torque instructions

4шт.

7

186051C1

PRODUCT GRAPHIC

DECAL - Important, use I.H. 135 HEP lubricant only

1шт.

7

1300115C1

DECAL

- Important, use I.H. 135 HEP lubricant only (French)

1шт.

8

186671C4

DECAL

- lubrication guide recommended hours, right-hand

1шт.

8

1300121C4

DECAL

- lubrication guide recommended hours, right-hand (French)

1шт.

10

186672C4

DECAL

- lubrication guide recommended hours, left-hand

1шт.

10

1300122C4

DECAL

- lubrication guide recommended hours, left-hand (French)

1шт.

11

1327687C1

DECAL

- lubrication guide recommended hours, upper

1шт.

11

1327688C2

DECAL

- lubrication guide recommended hours, upper (French)

1шт.

12

179245C1

DECAL

- lubrication - 10 hours

1шт.

15

180536C1

PRODUCT GRAPHIC

DECAL - wheel nut torque

2шт.

15

1300053C1

DECAL

- wheel nut torque

2шт.

17

185427C1

DECAL

- Important, after first hour of operation, retighten wheel bolts to 125 foot pounds torque

2шт.

17

1300112C1

DECAL

- Important, after first hour of operation retighten wheel bolts to 125 foot pounds torque (French)

2шт.

18

180180C1

PRODUCT GRAPHIC

DECAL - Important, check on level in reservoir daily

1шт.

18

1300049C1

DECAL

- Important, check on level in reservoir daily (French)

1шт.

19

173881C1

DECAL

- Important, keep engine and engine compartment clean

1шт.

19

1300039C1

DECAL

- Important, keep engine and engine compartment clean (French)

1шт.

20

188217C1

PRODUCT GRAPHIC

DECAL - concave indicator

1шт.

23

185036C1

PRODUCT GRAPHIC

DECAL - grain tank unloader

1шт.

23

1300059C1

DECAL

- grain tank unloader (French)

1шт.

24

184649C1

PRODUCT GRAPHIC

DECAL - stone retarder adjustment

2шт.

24

1300110C1

DECAL

- stone retarder adjustment (French)

2шт.

25

184863C2

PRODUCT GRAPHIC

DECAL - drum lower stop

2шт.

25

1300111C2

DECAL

- drum lower stop (French)

2шт.

26

1095361R1

DECAL

- Important, operator\qs ladder is to be assembled in correct length position

1шт.

26

1300133C1

DECAL

- Important, operator\qs ladder is to be assembled in correct length position (French)

1шт.

27

1302721C2

DECAL

- Important, high speed drive/slow speed drive

1шт.

27

1300398C2

DECAL

- Important, high speed drive/slow speed drive (French)

1шт.
