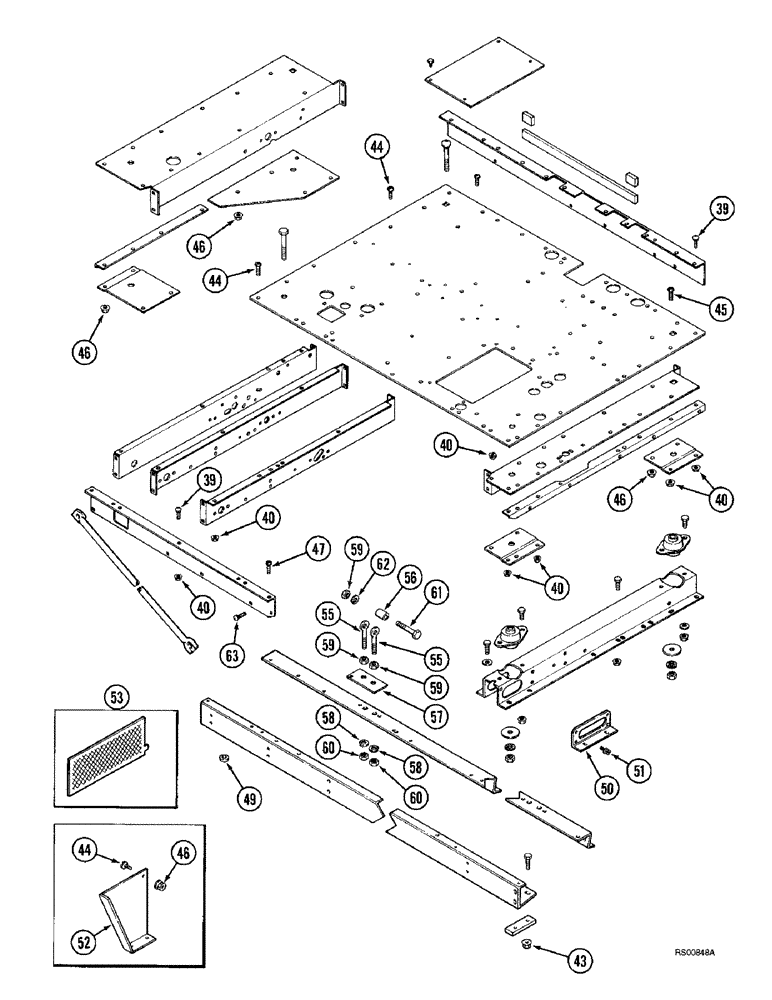

Запчасти Case IH 1680 (9H-26) - OPERATORS PLATFORM (CONTD) (12) - CHASSIS

39

411-58

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1/2", Gr 2

BOLT - carriage, 5/16 NC x 1/2 inch, grade 2

20шт.

40

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

32шт.

41

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

4шт.

42

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

4шт.

43

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

44

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

11шт.

46

231-5146

FLANGE NUT,3/8"-16

31шт.

47

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

48

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.

49

HA4457

SPACER

- 1/2 x 5/8 inch

2шт.

50

1301442C1

SUPPORT

BRACKET - platform side support

4шт.

51

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

16шт.

52

196993C2

SUPPORT

- platform front angle

1шт.

53

1284365C2

REFLECTOR

- amber

1шт.

55

165648C2

BOLT,3/4" - 10 x 4 1/2"

EYEBOLT - leveling

4шт.

56

591070R1

SPACER,3/4" Pipe x 1 7/16"

- pipe, 3/4 x 1-7/16 inch

2шт.

57

196592C3

BAR

- platform spacer

2шт.

58

492-11075

LOCK WASHER,3/4"

3/4"

6шт.

59

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

6шт.

60

425-1412

JAM NUT,Jam, 3/4"-10, G5

- hex, jam, 3/4 inch NC

4шт.

61

25754R1

BOLT,Hex, 3/4" - 10 x 4 1/4", Gr 8

- hex, 3/4 NC x 4-1/4 inch

2шт.

62

493-41078

LOCK WASHER,Ext Tooth, 3/4"

WASHER - external tooth lock, 3/4 inch

2шт.

63

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

BOLT CARRIAGE, Short NK, 5/16"-18 x 1/2", G5, Full Thd

10шт.

45

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
