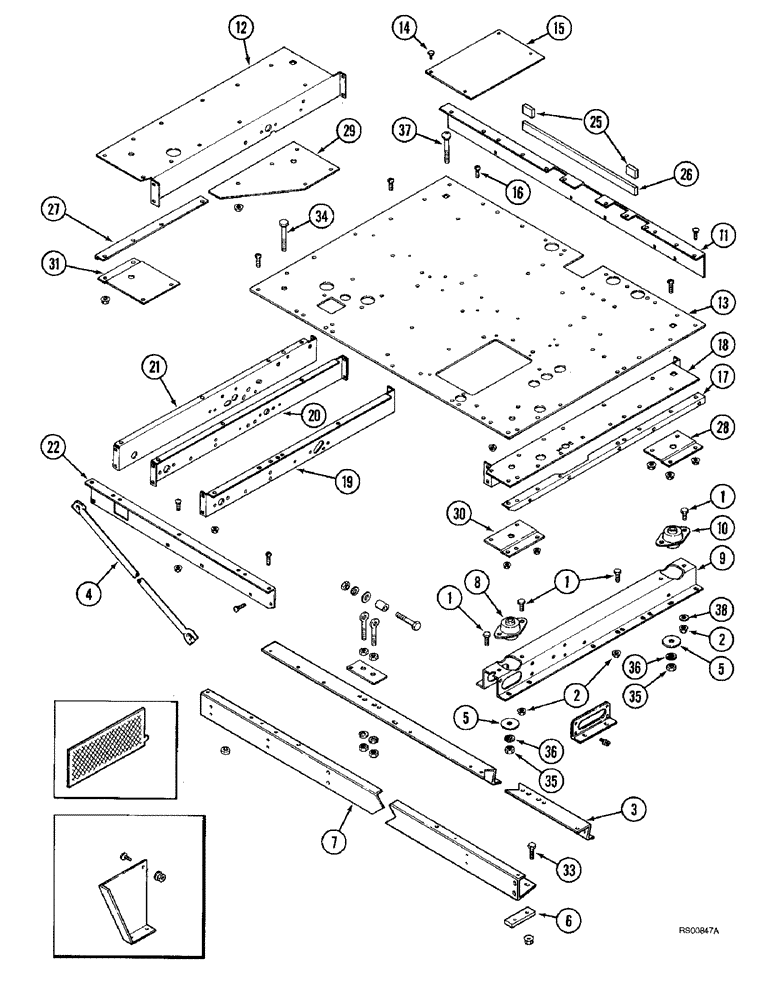

Запчасти Case IH 1680 (9H-24) - OPERATORS PLATFORM (12) - CHASSIS

1

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

32шт.

2

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

32шт.

3

195522C4

SUPPORT

- operators platform

1шт.

4

187645C2

ROD

- operators platform extension

1шт.

5

196591C1

WASHER

- flat, special

4шт.

6

193428C1

BAR

- rear mounting channel, 5/8 inch

2шт.

7

193427C3

SUPPORT

- operators platform, rear mounting

1шт.

8

196950C2

MOUNTING PARTS

INSULATOR - vibration, rear

2шт.

9

195507C6

SUPPORT

- operators platform, side

2шт.

10

117722C4

INSULATOR

- vibration, front

2шт.

11

1327564C2

SUPPORT

- operators platform, front

1шт.

12

195520C3

SUPPORT

- operators platform, left-hand

1шт.

13

1321937C4

PLATFORM

- operators

1шт.

14

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

4шт.

15

193029C2

PLATE

- brake access rear

1шт.

16

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

11шт.

17

196969C4

SUPPORT

- platform stiffener, right-hand

1шт.

18

195518C8

SUPPORT

- operators platform, right-hand

1шт.

19

195519C4

SUPPORT

- operators platform, right-hand center

1шт.

20

195521C3

SUPPORT

- operators platform, center

1шт.

21

195557C7

SUPPORT

- operators platform, left-hand center

1шт.

22

195516C4

SUPPORT

- operators platform, rear

1шт.

25

187884C1

SEALING STRIP,50mm L

- 51 mm (2 inch) long, cut from 87281C1 bulk seal, see below, cab sill to front support

2шт.

26

187885C1

SEALING STRIP

- 660 mm (26 inch) long, cut from 87281C1 bulk seal, see below, cab sill to front support

1шт.

27

183680C1

ANGLE

- stiffener, left-hand

1шт.

28

183668C2

PLATE

- platform, right-hand front

1шт.

29

183669C2

PLATE

- platform, left-hand front

1шт.

30

183678C1

PLATE

- platform, right-hand front

1шт.

31

183679C1

PLATE

- platform, left-hand rear

1шт.

33

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

10шт.

34

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

2шт.

35

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

4шт.

36

492-11075

LOCK WASHER,3/4"

3/4"

4шт.

37

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch

2шт.

38

495-81085

WASHER,1.16" ID x 1.62" OD x 0.06" Thk

- flat, 1-5/32 x 1-5/8 x 3/64 inch

4шт.

87281C1

RUBBER STRIP,38mm W x 749mm L x 19mm Thk

- bulk, 15240 mm (600 inch) long

1шт.
