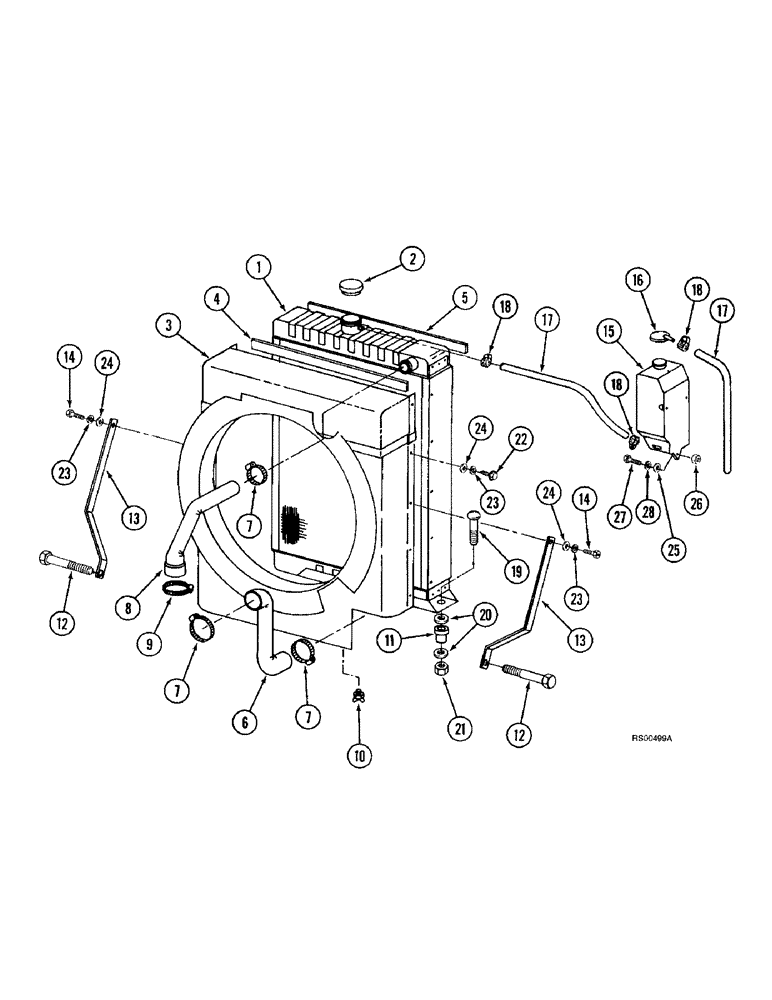

Запчасти Case IH 1680 (2-02) - RADIATOR AND RESERVOIR TANK (01) - ENGINE

1

A189212

RADIATOR

ASSEMBLY - engine cooling, replaces 1265697C91 radiator assembly, Includes: Ref. 2

1шт.

2

121951C1

CAP

- radiator pressure, 10 PSI, replaces 130704C1 cap

1шт.

3

1275702C2

GUARD

SHROUD - fan

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - 914 mm (36 inch) long, cut from 1974883CX bulk seal, see below, radiator baffle

2шт.

5

NSS

NOT SOLD SEPARAT

SEAL - 635 mm (25 inch) long, cut from F43996 bulk seal, see below, radiator, top and bottom

2шт.

6

121759C1

RADIATOR HOSE,2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

Outlet lower 2.00" ID, 2.62" ID x 5.10", SAE 20R4 CLASS D-2

1шт.

7

214-1436

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

CLAMP, HOSE, , Adj #36, 1.81/2.75 Type F Worm

3шт.

8

1275755C1

RADIATOR HOSE,50.80 mm ID, 57.15 mm ID x 363.00 mm

Inlet Upper 50.80 mm ID, 57.15 mm ID x 363.00 mm

1шт.

9

214-1452

HOSE CLAMP,#52, 2.81" - 3.75", Type F Worm

CLAMP - adj, 2-13/16 - 3-3/4 inch dia

1шт.

10

86982771

VALVE

- drain, 1/4 inch PT

1шт.

11

R29799

SHOCK ABSORBER

INSULATOR - rubber, replaces 400159R1 insulator

2шт.

12

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- hex, 5/8 NC x 4 inch

2шт.

13

121984C1

BRACE

- radiator

2шт.

14

187-1071

SELF-TAP SCREW,Hex Hd, 5/16" x 1 1/4"

SCREW - self-tapping, hex head, 5/16 NC x 1-1/4 inch

2шт.

15

437703C2

TANK

RESERVOIR - coolant recovery

1шт.

16

437702C1

CAP

- reservoir tank

1шт.

17

NSS

NOT SOLD SEPARAT

HOSE - 1092 mm (43 inch) long, cut from 87086C1 bulk hose, see below, reservoir to radiator and overflow

2шт.

18

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia

3шт.

19

111-422

CARRIAGE BOLT,Short NK, 7/16"-14 x 2", G2

BOLT, CARRIAGE, Short NK, 7/16"-14 x 2", G2

2шт.

20

495-81014

WASHER,.469" x 2" x .120"

- flat, 15/32 x 2 x 1/8 inch

4шт.

21

231-4117

LOCK NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC

2шт.

22

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

8шт.

23

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

24

495-81116

WASHER,8.74mm ID x 25.4mm OD x 1.7mm Thk

- flat, 11/32 x 1 x 3/64 inch

8шт.

25

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

3шт.

26

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

27

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

28

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

1974883CX

SEAL

- bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long

1шт.

F43996

RUBBER SEAL,25.4mm W x 932.179mm L x 19.05mm Thk

SEAL - bulk, adhesive-backed, 19 (3/4) x 25 (1) x 932 mm (36-3/4 inch) long

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.
