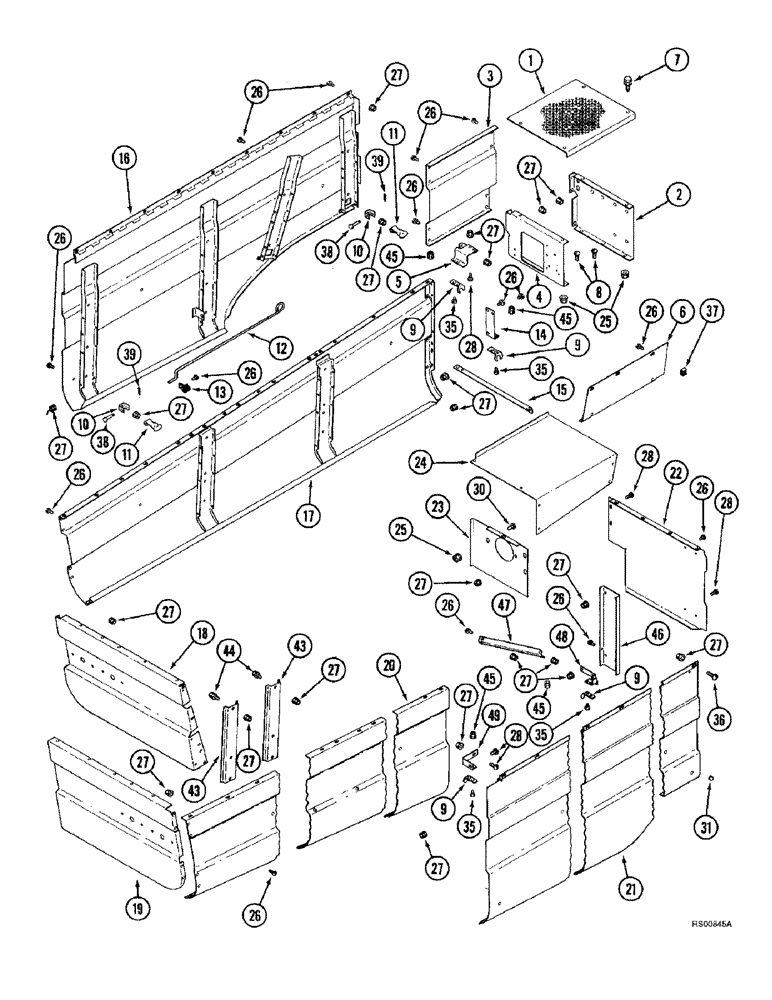

Запчасти Case IH 1680 (9H-20) - SHIELDS, SUPPORTS AND TRIM (12) - CHASSIS

1

198559C1

COVER

SUPPORT - valve box top

1шт.

2

1301066C2

SUPPORT

- valve box

1шт.

3

193052C1

SHEET

SUPPORT - valve box left-hand side

1шт.

4

193060C6

SUPPORT

- valve box, rear

1шт.

5

182834C2

SUPPORT

- latch, left-hand front

1шт.

6

186559C2

SUPPORT ASSY.

SUPPORT - right-hand front cab bottom

1шт.

7

281-34912

SELF-TAP SCREW,Hex Washer, 3/8" - 16 x 3/4"

SCREW - self-tapping, hex washer head, 3/8 NC x 3/4 inch

4шт.

8

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

9

L105124

LATCH HOOK

HOOK - latch

4шт.

10

188103C1

BRACKET

- hood anchor

4шт.

11

494307C1

LATCH

HOOK - hold down, latch

4шт.

12

186570C1

ROD

- lower door

2шт.

13

363660R1

CLIP

- trim sheet brace

2шт.

14

188185C1

SUPPORT

- left-hand trim rear catch

1шт.

15

194641C1

ANGLE

- shield support

1шт.

16

191152C1

SHIELD

SUPPORT - grain tank trim, left-hand front

1шт.

17

194624C2

SHIELD

- rear trim, right-hand

1шт.

ref # 17 is left hand per print - kl 10/13/99

1шт.

18

104148A3

SUPPORT

- tail lamp, left-hand

1шт.

19

193812C5

SHEET

SUPPORT - tail lamp, right-hand

1шт.

20

194625C7

PANEL

SHIELD - rear trim, right-hand

1шт.

21

191153C2

SUPPORT

- grain tank trim, right-hand front

1шт.

22

191146C2

SUPPORT

- lower right-hand front

1шт.

23

194491C4

SUPPORT

- gear case, front

1шт.

24

191141C1

SUPPORT

- feeder drive upper

1шт.

25

231-5146

FLANGE NUT,3/8"-16

8шт.

26

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

63шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

100шт.

28

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

33шт.

29

488837C1

SPRING NUT

- speed, 5/16 inch

6шт.

31

147483C1

PLUG

- button

8шт.

35

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

8шт.

36

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

9шт.

37

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC

3шт.

38

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

4шт.

39

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

4шт.

40

1251832C1

BOLT

HANDLE - assist

1шт.

41

495-81021

WASHER,17/32" x 1" x .120"

- flat, 17/32 x 1 x 7/64 inch

2шт.

42

832-41312

NUT,M12 x 1.75, Cl 10

NUT - hex, self-locking, 12 mm - 1.75, class 10

2шт.

43

1319563C1

SUPPORT

- handle

2шт.

44

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

45

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

46

194640C3

CONDUIT

SUPPORT - shield, right-hand front

1шт.

47

194639C2

ANGLE

BRACKET - shield support

1шт.

48

1345118C1

SUPPORT

BRACKET - front right-hand latch

1шт.

49

188097C1

SUPPORT

BRACKET - rear right-hand latch

1шт.

50

150100C1

SPRING NUT

- Tinnerman, special

3шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

2шт.
