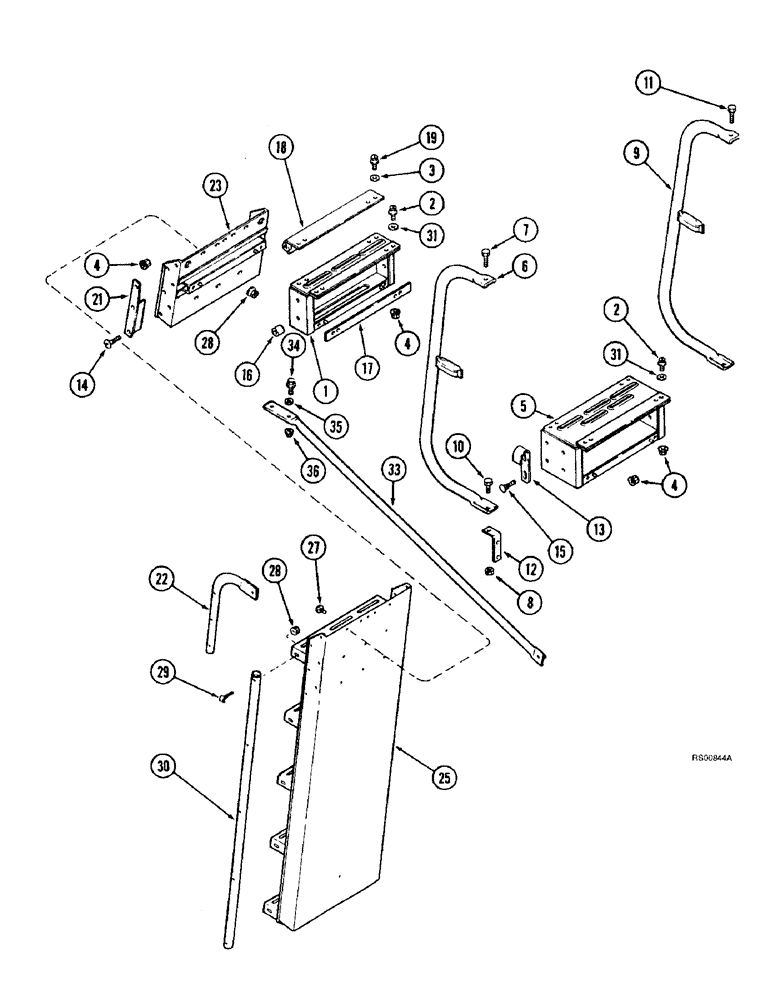

Запчасти Case IH 1680 (9H-18) - FIXED LADDER AND EXTENSION (12) - CHASSIS

1

198478C1

SUPPORT

- operators platform extension (For 3-1/2 inch extension)

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

16шт.

3

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

10шт.

4

231-5146

FLANGE NUT,3/8"-16

1шт.

5

198482C2

SUPPORT ASSY.

SUPPORT - operators platform extension (1 used with 7 inch extension; 3 used with dual wheels)

1шт.

6

196625C1

RAIL

- hand, front short extension (For use with 14 inch and shorter extension) (For use with axle extension)

1шт.

6

196626C1

RAIL

- hand, front long extension (For use with 17-1/2 inch and longer extension)

1шт.

7

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

1шт.

8

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

9

196633C2

GRAB RAIL

RAIL - hand, rear short extension (For use with 14 inch and shorter extension) (For use with axle extension)

1шт.

9

196634C2

GRAB RAIL

RAIL - hand, rear long extension (For use with 17-1/2 inch and longer extension) (For use with dual wheels)

1шт.

10

326-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

1шт.

11

24621R1

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 8

1шт.

12

196846C2

ANGLE

SUPPORT - hand rail extension (For use with 10-1/2 inch and 14 inch extension) (For use with axle extension)

1шт.

13

196977C2

SUPPORT

- hand rail extension hook (For use with 10-1/2 inch and 14 inch extension) (For use with axle extension)

2шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

10шт.

15

433-632

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 2", G5

2шт.

16

645342C1

SPACER,10.34mm ID x 15.87mm OD x 25.4mm L

- 3/8 ID x 1 inch

2шт.

17

187712C1

SHIM

BAR - shim, platform extension, 0.053 inch thick

1шт.

18

196832C1

SUPPORT

- ladder attaching

1шт.

19

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

20

196836C1

SUPPORT

- ladder side, left-hand

1шт.

21

196837C1

SUPPORT

- ladder side, right-hand

1шт.

22

1317397C1

ROD

HANDRAIL - ladder support, upper

2шт.

23

1318804C2

SUPPORT

- ladder, upper

1шт.

24

1978738C1

HAIR PIN COTTER

3/16"

2шт.

25

1317520C91

LADDER

- pivoting (With decal)

1шт.

2754442R1

PRODUCT GRAPHIC

DECAL - Caution, keep off while machine is in motion

1шт.

27

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

3шт.

28

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

13шт.

29

196955C1

BOLT,Curved Hd, 5/16" - 18 x 1.50", Cl 5

- curved head, 5/16 NC x 1-1/2 inch

10шт.

30

1318785C1

TUBE,26.8 mm ID, 28.58 mm OD

HANDRAIL - ladder support, lower

2шт.

31

495-81140

WASHER,13/32" x 1 1/4" x .060"

- flat, 13/32 x 1-1/4 x 1/16 inch

8шт.

33

184395C1

STEM

SUPPORT - ladder platform extension (For use with extra wide and dual wheel axles)

1шт.

34

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

35

495-91167

WASHER,13.49mm ID x 50.8mm OD x 3.4mm Thk

- flat, 17/32 x 2 x 7/64 inch

2шт.

34

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
