Запчасти Case IH 1680 (9H-08) - SEPARATOR, HOOD (12) - CHASSIS

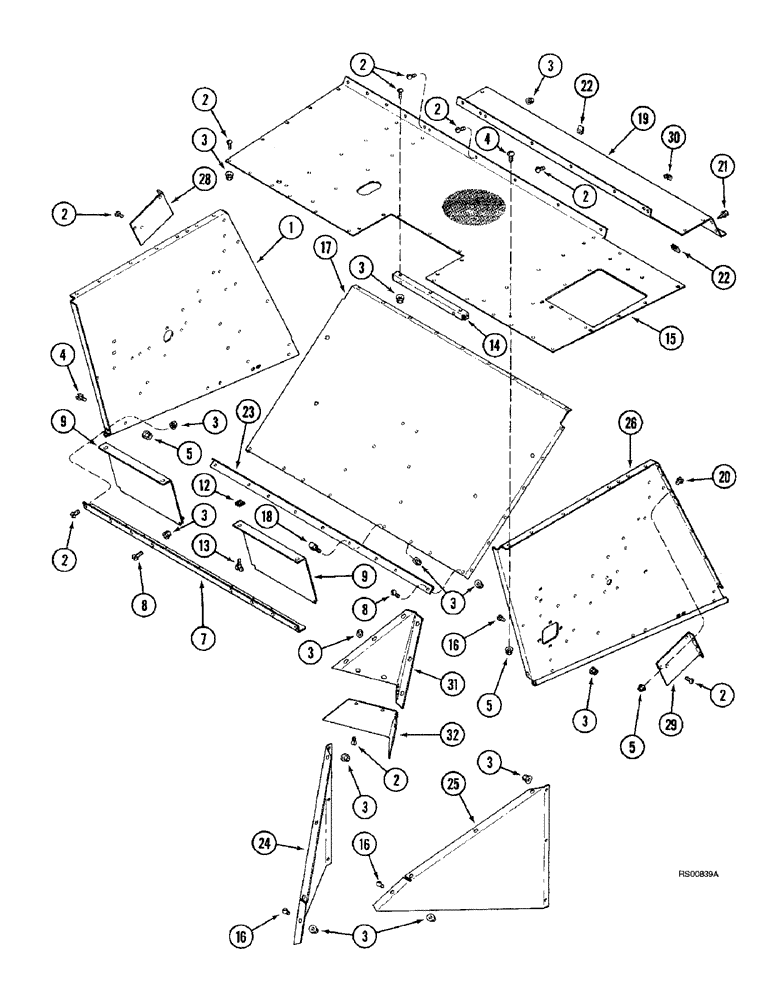

Схема запчастей Case IH 1680 - (9H-08) - SEPARATOR, HOOD (12) - CHASSIS
2
26
3
22
29
21
32
16
3
3
2
16
28
16
19
3
18
5
5
3
31
2
22
4
25
5
8
2
3
24
14
8
3
9
12
17
2
3
2
3
3
30
23
7
3
2
9
4
1
15
20
2

Артикул

Название

Примечание

Количество

1

192378C9

SHEET

SIDE - separator, left-hand

1шт.

2

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

56шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

81шт.

5

231-5146

FLANGE NUT,3/8"-16

2шт.

7

192304C2

RAIL

ANGLE - rear support

1шт.

8

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

6шт.

9

1300295C91

PANEL

SUPPORT - rear hood access

2шт.

12

488837C1

SPRING NUT

- speed, 5/16 inch

4шт.

13

183-123

THUMB SCREW

- thumb with shoulder, 5/16 NC x 3/4 inch

4шт.

14

186971C1

ANGLE

- rear deck support

1шт.

15

1317744C6

SHEET

SUPPORT - rear deck

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

10шт.

17

192306C7

DEFLECTOR

- straw discharge

1шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

9шт.

19

1979213C1

SUPPORT ASSY.

SUPPORT - engine deck, replaces 1317745C1 support

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

6шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

4шт.

22

541310R1

SPRING NUT

- speed, 5/16 inch

11шт.

23

194306C1

ANGLE

- deflector stiffener

1шт.

24

1302107C1

DEFLECTOR

SUPPORT - corner, left-hand

1шт.

25

1302108C1

DEFLECTOR

SUPPORT - corner, right-hand

1шт.

26

1302698C93

SUPPORT

SIDE - separator, right-hand, includes decals

1шт.

28

185104C1

SUPPORT

- separator hood, left-hand

1шт.

29

185105C1

SUPPORT

- separator hood, right-hand

1шт.

30

131-113

SPRING NUT,J, Ret, 5/16"-18

Speed grip J, Ret, 5/16"-18

2шт.

31

1319485C1

DEFLECTOR

- rear hood, not used on rice combines

1шт.

32

1321019C1

DEFLECTOR

- guard, not used on rice combines

1шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

BOLT - serrated slotted truss head, 3/8 NC x 1 inch

6шт.

Выбрано товаров: 28
