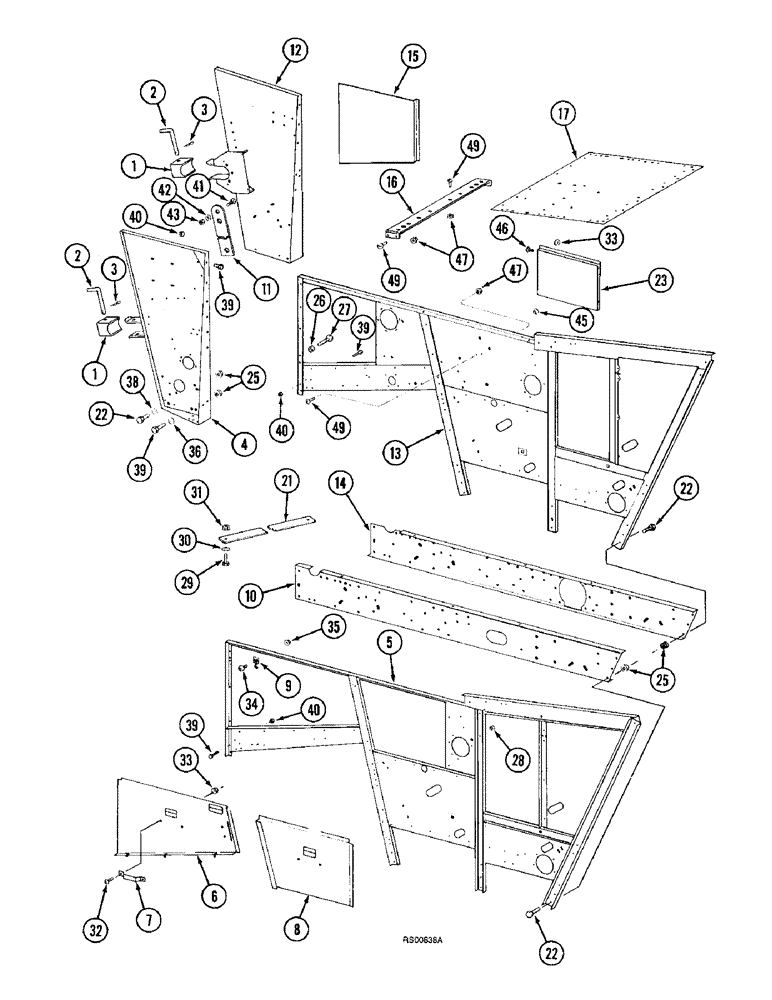

Запчасти Case IH 1680 (9H-06) - SEPARATOR, DOORS, SIDES AND SUPPORTS (12) - CHASSIS

1

1989327C1

RETAINER

BLOCK - feeder pivot

2шт.

2

192533C2

ROD

- feeder pivot block

2шт.

3

1978738C1

HAIR PIN COTTER

3/16"

2шт.

4

120869A1

SUPPORT ASSY.

POST - left-hand front, includes decal

1шт.

5

185130C4

SIDE ASSY.

SIDE - separator, left-hand

1шт.

6

182524C91

DOOR

- separator, front left-hand

1шт.

7

160638C1

HANDLE

- door, separator

3шт.

8

183020C91

DOOR

- separator, left-hand

1шт.

9

167800C1

CLIP

- door retaining clip

14шт.

10

1327695C8

SUPPORT

- separator, main, left-hand

1шт.

11

1308946C1

BAR

- front post diagonal

2шт.

12

193854C2

POST

- separator, right-hand

1шт.

13

1300266C91

SIDE ASSY.

SIDE - separator, right-hand

1шт.

14

1317554C2

SILL

SUPPORT - separator

1шт.

15

182526C91

DOOR

- separator, front right-hand

1шт.

16

195317C1

SUPPORT

- engine deck

1шт.

17

192605C1

SUPPORT

PLATE - engine deck

1шт.

21

186018C1

STRAP

BAR - diagonal support

2шт.

22

20739R1

BOLT,Hex, 5/8" - 11 x 1 1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch, grade 8

40шт.

23

181085C2

DOOR

- separator

2шт.

25

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

40шт.

26

272897R1

SPACER

- 1/2 x 1 inch pipe

1шт.

27

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

1шт.

28

353-252

PLUG,1"

- button, 1 inch

1шт.

29

426-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 8

- hex, 1/2 NC x 1-1/2 inch, grade 8

5шт.

30

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

5шт.

31

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex flange, self-locking, special, 1/2 inch NC, grade 8

5шт.

32

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

6шт.

33

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

16шт.

34

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

14шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

14шт.

36

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened

4шт.

38

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/2 x 1/8 inch

8шт.

39

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

21шт.

40

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

21шт.

41

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

4шт.

42

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

43

425-1010

NUT,5/8"-11, G5

4шт.

45

432366

HOLE PLUG BUTTON,1 3/8"

PLUG - button, 1-3/8 inch dia

1шт.

45

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

46

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

10шт.

47

231-5146

FLANGE NUT,3/8"-16

21шт.

49

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

21шт.
