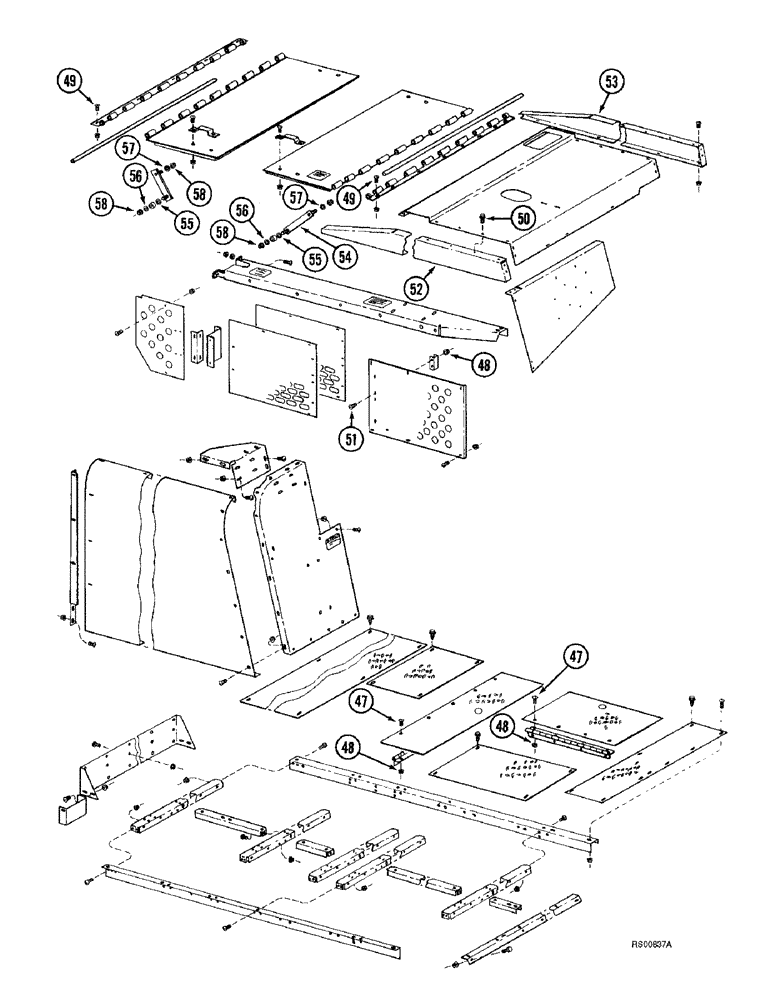

Запчасти Case IH 1680 (9H-04) - ENGINE SHIELD AND SERVICE DECK (CONTD) (12) - CHASSIS

47

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

18шт.

48

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

26шт.

49

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

7шт.

50

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

14шт.

51

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

8шт.

52

1327832C2

SUPPORT

- door top left-hand

1шт.

53

1327833C1

SUPPORT

- door top right-hand

1шт.

54

1319793C1

LINK ASSY.

LINK - door hold-up, rear

1шт.

55

567532R1

WASHER

- flat, special, 21/64 x 1/2 x 5/32 inch

2шт.

56

495-81024

WASHER,17/32" x 1 1/4" x .060"

- flat, 17/32 x 1-1/4 x 1/16 inch

2шт.

57

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

4шт.

58

231-5315

FLANGE NUT,Flg, 5/16"-18

NUT, LOCK, Flg, 5/16"-18

4шт.
