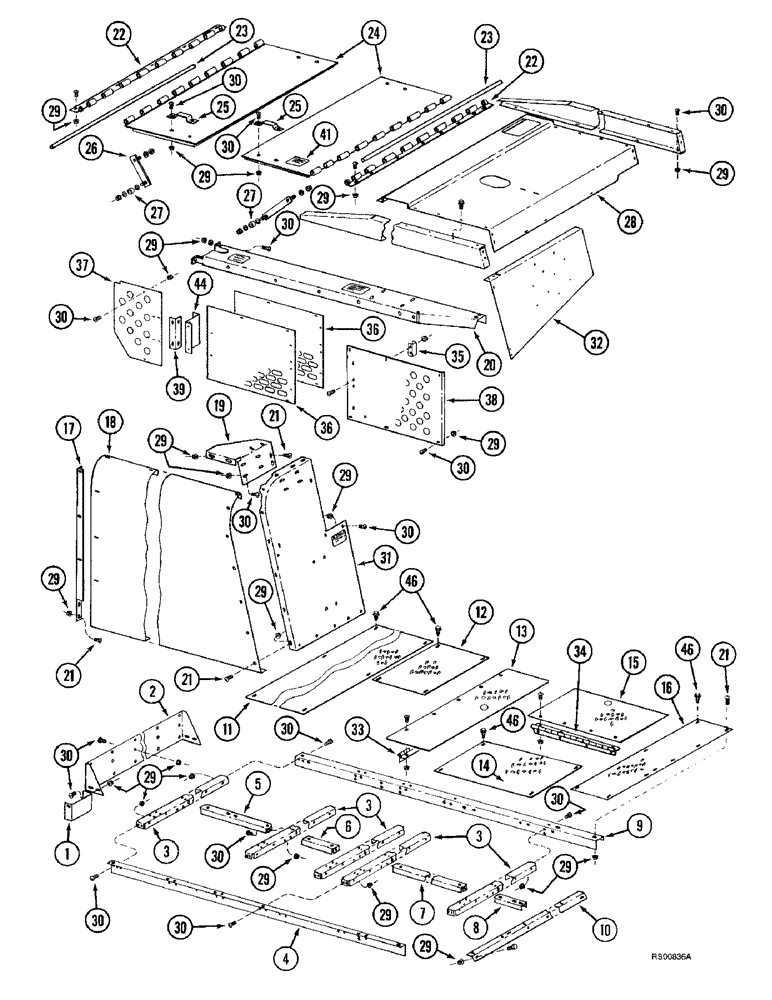

Запчасти Case IH 1680 (9H-02) - ENGINE SHIELD AND SERVICE DECK (12) - CHASSIS

1

186105C1

CHANNEL

BRACKET - grain tank, left-hand upper rear

1шт.

2

193435C3

SUPPORT

- engine service deck

1шт.

3

192959C6

SUPPORT

- deck

5шт.

4

186569C5

ANGLE

- deck support, left-hand

1шт.

5

188275C1

SUPPORT

- deck

2шт.

6

194461C1

SUPPORT

- deck

1шт.

7

194460C1

SUPPORT

- deck

1шт.

8

194458C1

SUPPORT

- deck

1шт.

9

192961C7

SUPPORT

- right-hand deck

1шт.

10

193146C4

ANGLE

- engine deck, rear support

1шт.

11

192595C2

PLATE

- engine compartment, front

1шт.

12

194455C2

PLATE

- engine compartment

1шт.

13

186694C2

DOOR

- separator housing drive

1шт.

14

188096C2

PLATE

- engine deck

1шт.

15

186692C2

DOOR

- separator drive housing

1шт.

16

188208C3

BAR

PLATE - engine compartment

1шт.

17

186106C1

CHANNEL

ANGLE - shield stiffener, upper left-hand

1шт.

18

191158C3

SUPPORT

- rear upper left-hand trim

1шт.

19

195356C1

SUPPORT

- shield

1шт.

20

1338069C1

SUPPORT

- door and hood

1шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

22шт.

22

194477C2

HINGE

- rotor cover door, front

2шт.

23

194478C1

ROD

- rotor door hinge

2шт.

24

182523C92

DOOR ASSY.

DOOR - engine and rotor drive

2шт.

25

160638C1

HANDLE

- door

2шт.

26

1302413C1

PROP

LINK - front, door hold up

1шт.

27

568257R1

SPACER,1/2" Tube x 3/8"

- 1/2 x 3/8 inch

2шт.

28

1319767C2

SUPPORT ASSY.

SUPPORT - top cover rear

1шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

116шт.

30

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

85шт.

31

182529C93

SUPPORT

- rear engine left-hand

1шт.

32

1319792C1

SUPPORT

- air cleaner

1шт.

33

186695C1

HINGE

- door

1шт.

34

186693C1

HINGE

- door

1шт.

35

196438C1

SUPPORT

- clutch oil cooler, front

1шт.

36

1319860C1

PLATE

- oil cooler

2шт.

37

1345275C1

SHIELD

PLATE - oil cooler, replaces 196442C2 plate

1шт.

38

196448C5

PROTECTION PLATE

SUPPORT - rear clutch oil cooler

1шт.

39

196446C2

ANGLE

- clutch oil cooler support

1шт.

44

1319696C1

BRACKET

ANGLE - cooler shield support

2шт.

45

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

46

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

15шт.
