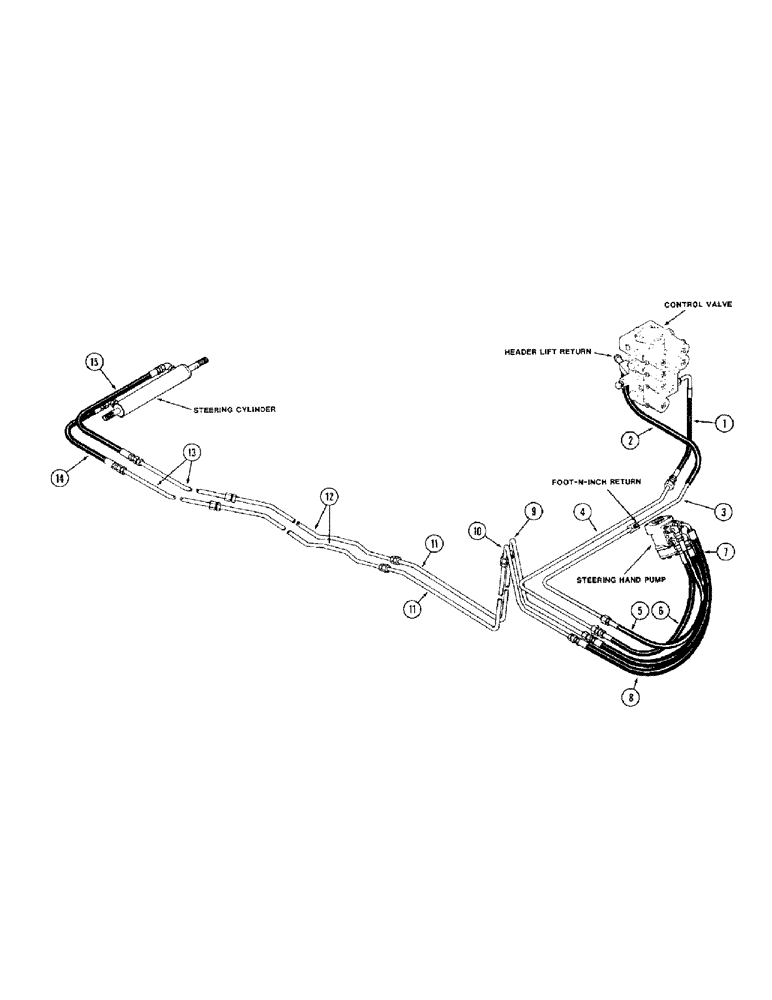

Запчасти Case IH 1680 (1-28) - PICTORIAL INDEX, STEERING SYSTEM (00) - PICTORIAL INDEX

1

Steering Pressure Hose, Page 5-5

1шт.

2

Steering Return Hose, Page 5-5

1шт.

3

Steering Return Tube, Page 5-5

1шт.

4

Steering Pressure Tube, Page 5-5

1шт.

5

Steering Hand Pump Return Hose, Page 5-5

1шт.

6

Steering Hand Pump Pressure Hose, Page 5-5

1шт.

7

Steering Hand Pump, Left Hose, Page 5-7

1шт.

8

Steering Hand Pump, Right Hose, Page 5-7

1шт.

9

Steering, Forward, Upper Inside Tube, Page 5-7

1шт.

10

Steering, Forward, Upper Inside Tube, Page 5-7

1шт.

11

Steering, Intermediate, Forward Tube, Page 5-7

1шт.

12

Steering, Intermediate, Rear Tube, 5-7

1шт.

13

Steering, Rear Tube, Page 5-7

1шт.

14

Cylinder, Lower Hose, Page 5-7

1шт.

15

Steering, Upper Hose, Page 5-7

1шт.
