Запчасти Case IH 1680 (9G-42) - HEATING AND AIR CONDITONING SYSTEM, CAB (10) - CAB & AIR CONDITIONING

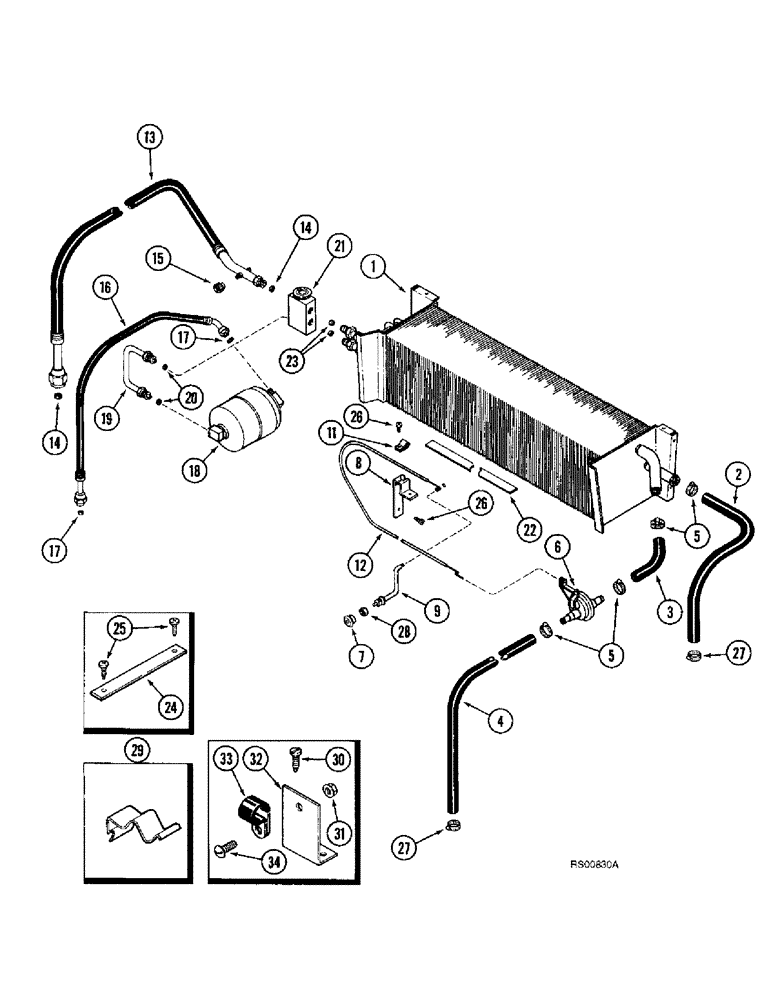

Схема запчастей Case IH 1680 - (9G-42) - HEATING AND AIR CONDITONING SYSTEM, CAB (10) - CAB & AIR CONDITIONING
21
34
30
5
14
4
28
12
17
6
27
15
5
14
2
27
1
3
31
16
24
8
11
25
18
23
9
17
20
22
13
26
7
29
32
19
26
33

Артикул

Название

Примечание

Количество

1

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, part list Figure 9G-34

1шт.

2

NSS

NOT SOLD SEPARAT

HOSE - 3302 mm (130 inch) long, cut from 97252CX bulk hose, see below, heater to chassis junction

1шт.

3

NSS

NOT SOLD SEPARAT

HOSE - 127 mm (5 inch) long, cut from 97252CX bulk hose, see below, Serial Range: heater-valve

1шт.

4

NSS

NOT SOLD SEPARAT

HOSE - 2921 mm (115 inch) long, cut from 97252CX bulk hose, see below, heater to valve to chassis junction

1шт.

5

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable #10, 0.56/1.06 Type F Worm

4шт.

6

3234102R92

VALVE

- heater control

1шт.

7

111282C1

KNOB

- control

1шт.

8

1283445C2

BRACKET

SUPPORT - cable, heater control valve

1шт.

9

1281809C1

ARM

- heater control

1шт.

10

100-3325

SNAP RING,#25, .207" Dia, E-Type

Ring, Retaining, #25, .207" Dia, E-Type

2шт.

11

1283334C1

CLIP

- mounting, heater cable

1шт.

12

1276220C3

CABLE

- control, heater valve

1шт.

13

1276164C1

HOSE

ASSEMBLY - 2700 mm (106 inch) long, Includes: Ref. 14 & 15

1шт.

14

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

2шт.

15

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

16

1276163C2

HOSE

- 3000 mm (118 inch) long, Includes: Ref. 17

1шт.

17

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

18

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning, See Figure 9G-34, item 14

1шт.

19

1250438C1

TUBE ASSY.

TUBE - receiver-drier, Includes: Ref. 20

1шт.

20

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

2шт.

21

REF

INSTRUCTION

VALVE - expansion, See Figure 9G-34

1шт.

22

NSS

NOT SOLD SEPARAT

TAPE - 2438 mm (96 inch) long, cut from 118468C1 bulk tape, see below, insulation

1шт.

23

REF

INSTRUCTION

O-RING - 7/16 ID x 1/16 inch wide, See Figure 9G-34. items 32 and 33

2шт.

24

1321363C2

STRAP

- retaining, hose

2шт.

25

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

4шт.

26

260-1356

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan Phillips, No. 10-16 x 3/8 inch

3шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

109311H

JAM NUT

- hex, jam, 7/16-28 NF

1шт.

29

3233746R1

CLIP

- cable

1шт.

30

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

SCREW, SELF TAP, Cross Pan Hd, M4.8 x 19, Coated

2шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

98158C1

BRACKET

- heater valve support

1шт.

33

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type, Closed 1", Insul, 3/8" Bolt

1шт.

34

116494C1

SCREW,Sl Serr Truss Hd, 3/8" - 16 x 1/2"

1шт.

97252CX

HOSE

- bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.

118468C1

TAPE

- insulation, bulk, 9144 mm (360 inch) long

1шт.

Выбрано товаров: 36
