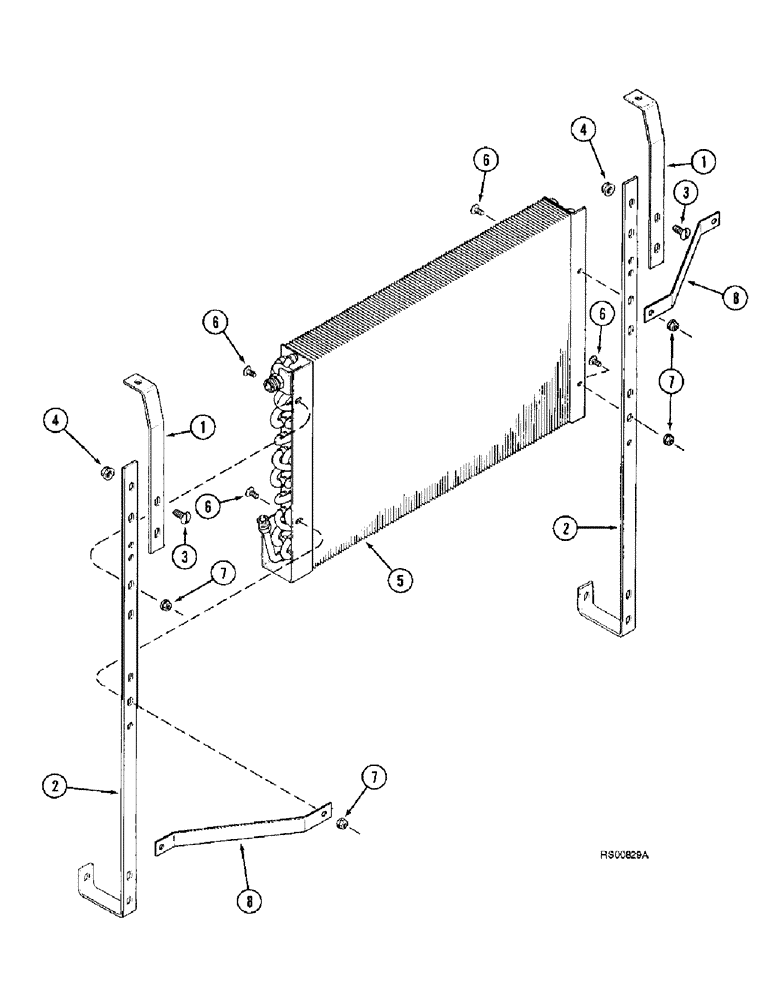

Запчасти Case IH 1680 (9G-40) - HEATING AND AIR CONDITIONING SYSTEM, CONDENSER COIL AND SUPPORTS (10) - CAB & AIR CONDITIONING

1

1281758C2

BRACKET

SUPPORT - condenser upper

2шт.

2

1281759C2

BRACKET

SUPPORT - condenser lower

2шт.

3

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

8шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

8шт.

5

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

6

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

BOLT - serrated slotted truss head, 1/4 NC x 1/2 inch

4шт.

7

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

8

1329945C1

BRACKET

- condenser

2шт.
