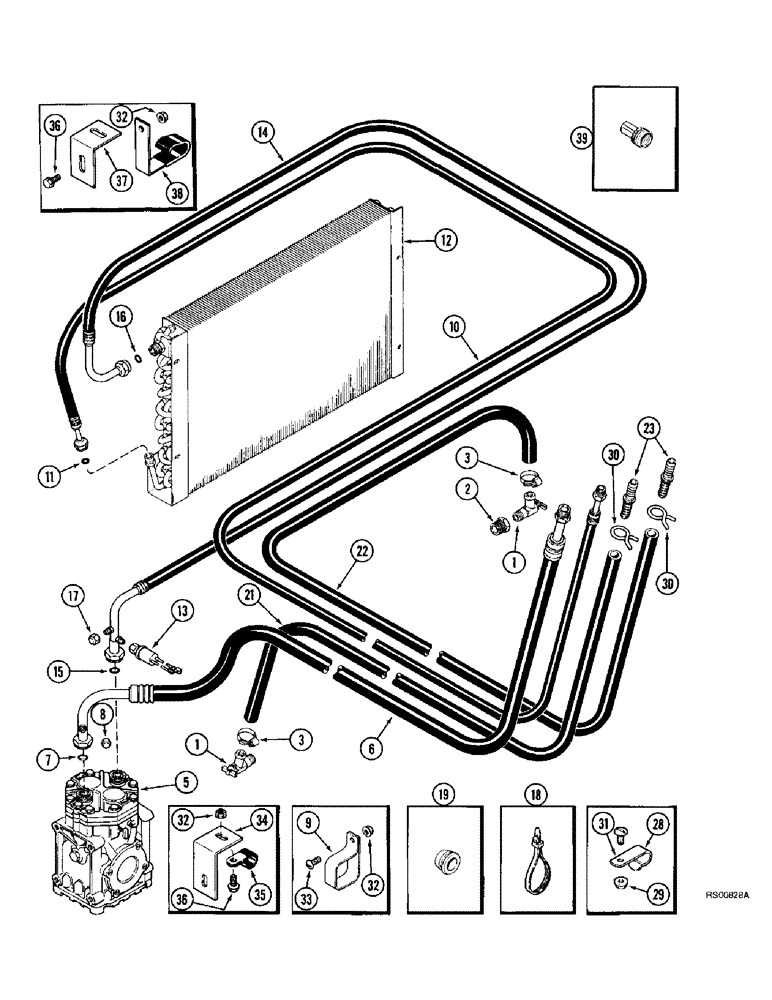

Запчасти Case IH 1680 (9G-38) - HEATING AND AIR CONDITIONING SYSTEM, CHASSIS CONNECTIONS (10) - CAB & AIR CONDITIONING

1

301803R1

SHUT-OFF VALVE

VALVE - shutoff, heater

2шт.

2

217-44

REDUCER,1/2" - 14 NPT x 3/8" - 18 NPT

REDUCER, 1/2"-14 NPTF x 3/8"-18 Fem NPTF

1шт.

3

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

5

1255750C91

COMPRESSOR

COMPRESSOR ASSEMBLY - air conditioning, parts list Figure 9G-48

1шт.

5

1924008C2

REMAN-A/C COMPRESSOR

Remanufactured Compressor Assy

1шт.

5

1924009C1

CORE-A/C COMPRESSOR

Return Number

1шт.

6

1276165C1

HOSE

HOSE ASSEMBLY - 5105 mm (201 inch) long, compressor to cab, Includes: Ref. 7 & 8

1шт.

7

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

8

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

1шт.

9

154695C2

CLAMP

CLAMP - square, models with heater only

1шт.

9

1301387C2

CLIP

CLAMP - square, 2 inch ID, models with heater and air conditioner

1шт.

10

1276162C3

HOSE

HOSE ASSEMBLY - 6096 mm (240 inch) long, condenser to cab, Includes: Ref. 11

1шт.

11

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

O-RING, -011, 70 Duro, .301" ID x .070" Thk

1шт.

12

183901C2

CONDENSER

COIL - air conditioner condenser

1шт.

13

111266C1

SWITCH, A/C HIGH PRE

SWITCH - high pressure

1шт.

14

1276161C2

HOSE

HOSE ASSEMBLY - compressor to condenser, Includes: Ref. 15 - 17

1шт.

15

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

O-RING, -015, 70 Duro, .551" ID x .070" Thk

1шт.

16

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

O-RING, -013, 70 Duro, .426" ID x .070" Thk

1шт.

17

222-981

TUBE NUT,Cap, 3/8"-24, 45 Degree Fl

CAP - hex, 7/16-20 inch female 45 degree flare

2шт.

18

306132C1

CABLE TIE,14.5" L

CABLE STRAP STRAP - tie, 14 inch

1шт.

18

702093C1

CABLE TIE

CABLE STRAP STRAP - tie, 3 inch maximum

1шт.

19

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 5/8 inch ID

3шт.

19

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 3/4 inch ID

3шт.

19

198827C1

GROMMET,22.22mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 7/8 inch ID

2шт.

19

198828C1

GROMMET,25.4mm ID x 41.1mm OD x 26.9mm Thk

GROMMET - 1 inch ID

2шт.

21

NSS

NOT SOLD SEPARAT

HOSE - 6477 mm (255 inch) long, cut from 97252CX bulk hose, see below, heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - 7569 mm (298 inch) long, cut from 97252CX bulk hose, see below, heater

1шт.

23

1301342C1

FITTING

ADAPTER - straight, special

2шт.

28

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

1шт.

29

231-5146

FLANGE NUT,3/8"-16

NUT, Flg, USR, 3/8"-16

1шт.

30

313318R1

HOSE CLAMP,#14, 7/8", Spring

CLAMP - No. 14, Type E spring wire

2шт.

31

66498C1

CLIP

CLIP - retaining

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

33

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

SCREW - serrated slotted truss head, 5/16 NC x 3/4"

1шт.

34

194756C2

ANGLE

ANGLE - clamp mounting, front

1шт.

35

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

CLAMP, 1 1/2", Insul, 3/8" Bolt

1шт.

36

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

BOLT - hex serrated flange, 5/16 NC x 3/4 inch

2шт.

37

1301560C1

SUPPORT

BRACKET - mounting

1шт.

38

1324905C1

CLIP

CLIP - air conditioner hoses

1шт.

39

118185C1

CAP ASSY.

CAP - stem

1шт.

97252CX

HOSE

HOSE - bulk, 16 (5/8) x 25 (1) x 15240 mm (600 inch) long

1шт.
