Запчасти Case IH 1680 (9G-34) - HEATING AND AIR CONDITIONING SYSTEM, EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING

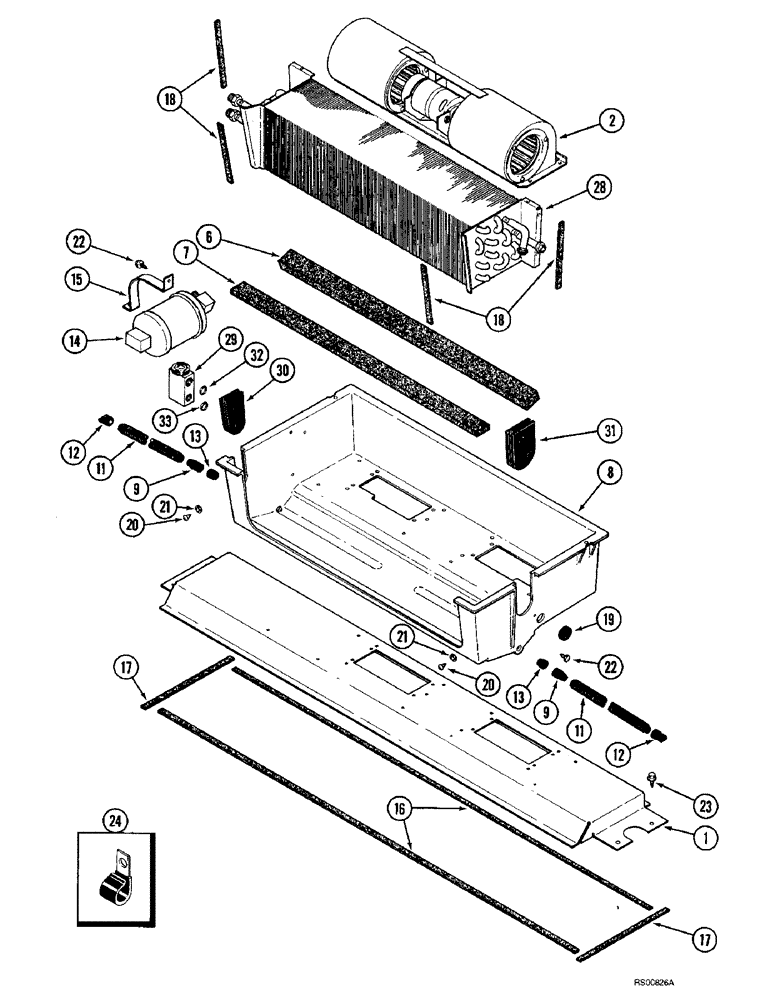

Схема запчастей Case IH 1680 - (9G-34) - HEATING AND AIR CONDITIONING SYSTEM, EVAPORATOR HEATER CORE AND BLOWER MOUNTING (10) - CAB & AIR CONDITIONING
24
20
17
12
17
21
7
11
18
28
9
33
21
22
18
19
32
11
6
14
31
1
12
29
15
23
8
9
16
30
20
13
2
22
13

Артикул

Название

Примечание

Количество

1

1276238C1

SUPPORT

- mounting

1шт.

2

1255878C91

BLOWER ASSY.

BLOWER ASSEMBLY - cab pressurizer, parts list Figure 9G-36

1шт.

6

84123C1

STRIP

SEAL - 750 mm (29-1/2 inch) long, core, front

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - 725 mm (28-1/2 inch) long, cut from 1974883CX bulk seal, see below,core, rear

1шт.

8

135776C2

HOUSING

- blower

1шт.

9

1250522C3

FITTING

FITTING - straight, special

2шт.

10

NSS

NOT SOLD SEPARAT

HOSE - 2286 mm (90 inch) long, cut from 198091C1 bulk hose, see below, condensate left-hand

1шт.

11

NSS

NOT SOLD SEPARAT

HOSE - 3404 mm (134 inch) long, cut from 198091C1 bulk hose, see below, condensate right-hand

1шт.

12

109239C2

CHECK VALVE

VALVE, CHECK

2шт.

13

195806C1

GROMMET

- 3/4 inch ID

2шт.

13

195800C1

GROMMET

- protective, models without air conditioner

2шт.

14

1990758C2

RECEIVER-DRYER

RECEIVER-DRIER - air conditioning

1шт.

15

1250439C1

CLAMP

- receiver-drier

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - 1270 mm (50 inch) long, cut from 187874C1 bulk seal, see below, support and headliner

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - 254 mm (10 inch) long, cut from 187874C1 bulk seal, see below, support and headliner

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - 165 mm (6-1/2 inch) long, cut from 187874C1 bulk seal, see below, Serial Range: core-housing

1шт.

19

83931C1

GROMMET

- blower harness

1шт.

20

143309C1

SELF-TAP SCREW,Cross Pan Hd, #10 - 16 x 1/2"

SCREW - self-tapping, pan Phillips head, No. 10-16 x 1/2 inch

4шт.

21

395-31022

WASHER,#10

- flat, 7/32 x 1/2 x 1/16 inch

4шт.

22

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW - self-tapping, truss head, No. 10-16 x 3/4 inch

12шт.

23

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

4шт.

24

362126R1

CLIP

CLAMP - hose

3шт.

28

1974632C3

EVAPORATOR

CORE ASSEMBLY - heater and evaporator, replaces 79675C92 core assembly, Includes: Ref. 29 - 33

1шт.

29

98370C3

VALVE

- expansion, 1-1/2 inch

1шт.

29

118321C1

VALVE

- expansion, bulbless, 1-1/2 inch, used with 79675C92 core assembly

1шт.

29

118321C1GV

VALVE

- expansion, bulbless, 1-1/2 inch, used with 79675C92 core assembly

1шт.

30

1250463C2

GROMMET

- rubber

1шт.

31

1250464C2

GROMMET

- rubber

1шт.

32

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk

1шт.

33

238-5013

O-RING,0.07" Thk x 0.426" ID, -13, Cl 5, 75 Duro

-013, 70 Duro, .426" ID x .070" Thk

1шт.

1974883CX

SEAL

- bulk, adhesive-backed, 13 (1/2) x 38 (1-1/2) x 15240 mm (600 inch) long

1шт.

198091C1

HOSE,12.95mm ID x 15240mm L

- bulk, 13 (1/2) ID x 15240 mm (600 inch) long

1шт.

187874C1

GASKET

SEAL - bulk, adhesive backed, 3 (1/8) x 10 (3/8) x 15240 mm (600 inch) long

1шт.

Выбрано товаров: 33
