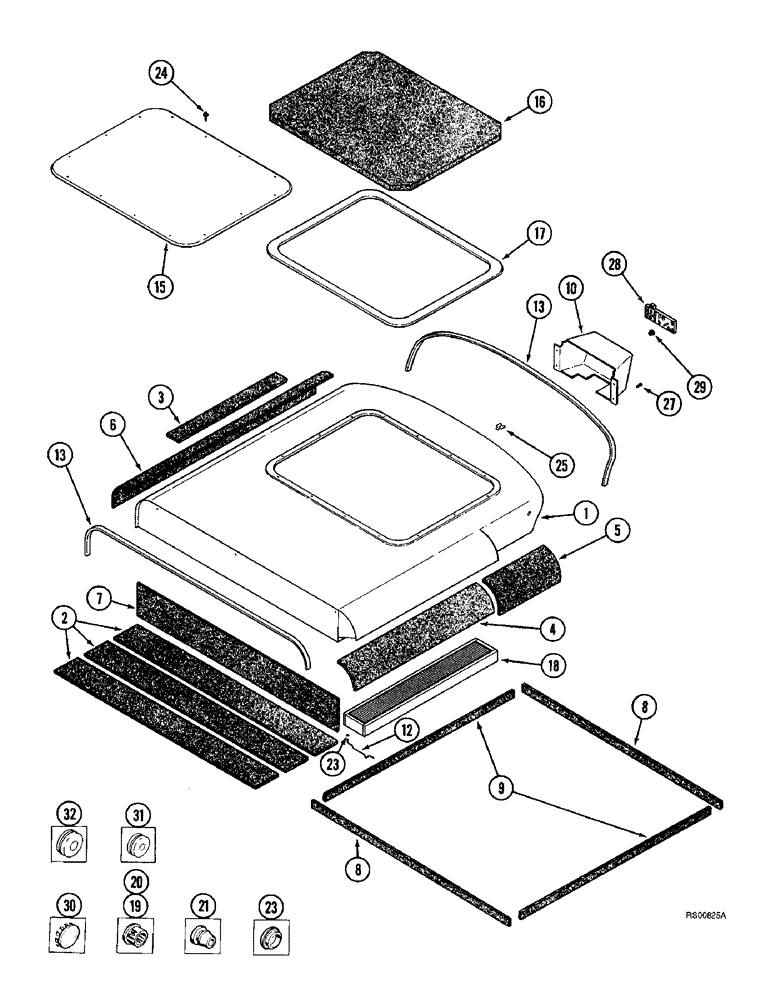

Запчасти Case IH 1680 (9G-32) - CAB, ROOF (10) - CAB & AIR CONDITIONING

1

1344179C1

ROOF

ASSEMBLY - cab, replaces 1276124C4 roof assembly, Includes: Ref. 2 - 7

1шт.

2

NSS

NOT SOLD SEPARAT

INSULATION - 305 mm (12 inch) long, cut from 1327515C2 bulk seal insulation, see below, top

3шт.

3

NSS

NOT SOLD SEPARAT

INSULATION - 305 mm (12 inch) long, cut from 1327515C2 bulk seal insulation, see below, left-hand top

1шт.

4

NSS

NOT SOLD SEPARAT

INSULATION - 305 mm (12 inch) long, cut from 1327515C2 bulk seal insulation, see below, right-hand rear

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATION - 305 mm (12 inch) long cut from 1327515C2 bulk seal insulation, see below, right-hand front

1шт.

6

NSS

NOT SOLD SEPARAT

INSULATION - 305 mm (12 inch) long, cut from 1327515C2 bulk seal insulation, see below, left-hand side

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATION - 1524 mm (60 inch) cut from 1327515C2 bulk seal insulation, see below, rear

1шт.

8

NSS

NOT SOLD SEPARAT

TRIM - 1372 mm (54 inch) long, cut from 182747C1 bulk trim, see below, roof sides

2шт.

9

NSS

NOT SOLD SEPARAT

TRIM - 1448 mm (57 inch) long, cut from 182747C1 bulk trim, see below, roof front and rear

2шт.

10

1281510C2

COVER

- windshield wiper motor

1шт.

12

117727C2

ROD

- filter latch

3шт.

13

NSS

NOT SOLD SEPARAT

TRIM - 1829 mm (72 inch) long, cut from 1327666C1 bulk trim, see below, trim front and rear

2шт.

15

143006C3

PANEL

- roof

1шт.

16

1276340C2

INSULATOR

COVER - insulation, access cover

1шт.

17

83872C2

SEAL

- access cover

1шт.

18

143481C2

AIR CLEANER

FILTER - air

1шт.

19

179093

HOLE PLUG BUTTON,9/32"

8шт.

20

353-406

PLUG,Dome, .625" hole, Nylon

- button, 5/8 inch

2шт.

20

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

21

198825C1

GROMMET,15.88mm ID x 41.1mm OD x 26.9mm Thk

- 5/8 inch ID

1шт.

23

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

24

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

14шт.

25

445406

SPRING NUT,Tinn, 1/4"-14

- spring, 1/4 inch

14шт.

27

1327767C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 16mm

- self-tapping, hex washer head, polyseal, 5/16 NC x 5/8 inch

4шт.

28

A181900

EMBLEM

- Case IH

1шт.

29

1324788C1

NUT

- self threading, 1/4 inch

2шт.

30

472429C1

PLUG

Plastic, 3/4" Diameter Hole

2шт.

31

1321769C1

GROMMET

- rubber, 5/8 inch diameter hole

1шт.

32

128157

GROMMET,3/8" ID x 27/32" x .062", Diag Cut

- rubber, 3/8 x 27/32 x 5/16 inch

1шт.

33

118084C1

SEALING WASHER

- rubber

3шт.

1327515C2

INSULATOR

SEAL - bulk sheet, 1372 (54) x 3048 (120) x 13 mm (1/2 inch) thick

1шт.

182747C1

DOOR SEAL

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

1327666C1

SEAL

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.
