Запчасти Case IH 1680 (9G-28) - CAB, INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING

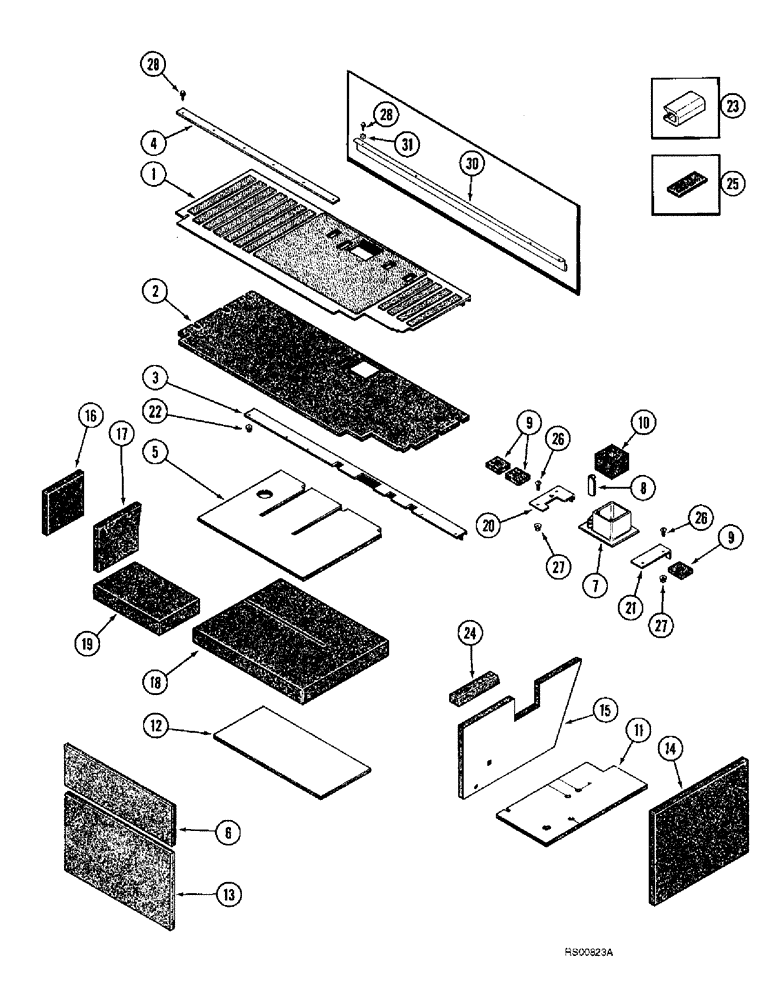

Схема запчастей Case IH 1680 - (9G-28) - CAB, INSULATION AND FLOOR MAT (10) - CAB & AIR CONDITIONING
28
21
5
26
31
15
12
4
18
2
23
28
25
20
7
27
1
27
14
3
22
19
6
13
17
26
24
9
8
9
16
10
30
11

Артикул

Название

Примечание

Количество

1

1329711C3

MAT

- floor

1шт.

2

1326885C1

INSULATOR

PAD - insulation, floor mat

1шт.

3

1327603C1

SUPPORT

- floor mat front retainer

1шт.

4

91796C1

STRIP

- floor mat hold down, if used

1шт.

5

98123C4

SHEET ASSY.

SUPPORT - seat platform

1шт.

6

98008C2

INSULATOR

PAD - insulation, center rear support

1шт.

7

198075C1

INSULATOR

PAD - insulation, steering pedestal

1шт.

8

187581C1

ANGLE

- steering pedestal

1шт.

9

1321935C1

SEAL

- pedal

3шт.

10

1324844C1

SEAL

- steering pedestal

1шт.

11

196587C7

INSULATOR

PAD - insulation, right-hand, cover

1шт.

12

91793C2

INSULATOR

PAD - insulation, center, cover

1шт.

13

91790C2

INSULATOR

PAD - insulation, center rear

1шт.

14

1301219C2

SHEET

PAD - insulation, outer cover

1шт.

15

91797C1

INSULATOR

PAD - insulation, right-hand, inner, cover

1шт.

16

196598C2

SHEET

PAD - insulation, left-hand, outer, cover

1шт.

17

1322927C2

INSULATOR

PAD - insulation, left-hand panel

1шт.

18

91791C2

INSULATOR

- center sound

1шт.

item # 18 PER FEC D1481, REMOVE CENTER SOUND SHEET FROM BENEATH OPERATOR CAB SEAT. TEST SHOW- ED NO INCREASE IN SOUND

1шт.

LEVEL WITH PAD REMOVED. DIS- CONTINUED 91791C2.

1шт.

19

91792C3

SHEET ASSY.

PAD - insulation, manual box

1шт.

20

1327567C1

PLATE

- boot hold-down, left-hand

1шт.

21

1327568C1

PLATE

- boot hold-down, right-hand

1шт.

22

231-5146

FLANGE NUT,3/8"-16

5шт.

23

NSS

NOT SOLD SEPARAT

TRIM - 686 mm (27 inch) long, cut from 1330108CX bulk trim, see below, rear inside, Serial Range: edge-cab

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - 375 mm (14-3/4 inch) long, cut from 1330108CX bulk trim, see below, left-hand inside, Serial Range: edge-cab

1шт.

23

NSS

NOT SOLD SEPARAT

TRIM - 152 mm (6 inch) long, cut from 1330108CX bulk trim, see below, vertical flange under right-hand door

1шт.

24

1288795C1

STRIP

SEAL - throttle lever

1шт.

25

1301236C1

SEALING STRIP

- 787 mm (31 inch) long

1шт.

26

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

6шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

28

111618C2

SELF-TAP SCREW,Hex Flng, 1/4" - 14 x 1"

- self-tapping, hex washer head, 1/4 NC x 1 inch

6шт.

30

1338051C1

BRACKET

- hold-down, if used

1шт.

31

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16"), If used 1/4", SAE

6шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

Выбрано товаров: 35
