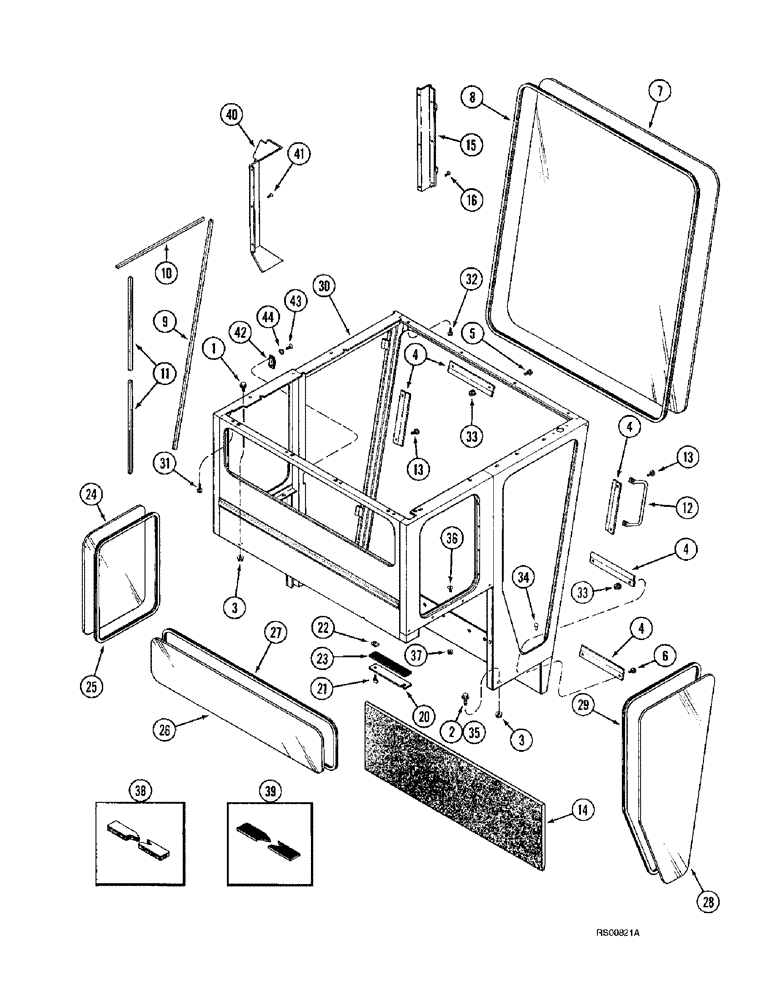

Запчасти Case IH 1680 (9G-24) - CAB, FRAME (10) - CAB & AIR CONDITIONING

1330154C92

CAB

ASSEMBLY - operators, with heater and air conditioner, Includes: Ref. 1 - 30

1шт.

1

1327763C1

SCREW,Hex Wshr Hd, 3/8" - 16 x 3/4"

- hex washer head, 3/8 NC x 3/4 inch

8шт.

2

1327764C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/4"

BOLT - hex flange, polyseal, 3/8 NC x 1-1/4 inch

9шт.

3

1327765C1

LOCK NUT

- hex flange, self-locking, 3/8 inch NC

18шт.

4

196742C2

SUPPORT

- windshield retainer

7шт.

5

25653R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 8

- hex, 5/16 NC x 1/2 inch

2шт.

6

25228R1

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

- hex, 5/16 NC x 3/4 inch, grade 8

8шт.

7

1957276C1

GLASS

- cab windshield

1шт.

8

NSS

NOT SOLD SEPARAT

STRIP - 5715 mm (225 inch) long, cut from 198131C2 bulk strip, see below, windshield glass

1шт.

9

NSS

NOT SOLD SEPARAT

STRIP - 1372 mm (54 inch) long, cut from 198131C2 bulk strip, see below, cab door opening front

1шт.

10

NSS

NOT SOLD SEPARAT

STRIP - 660 mm (26 inch) long, cut from 1330108CX bulk strip, see below, cab door opening top

1шт.

11

NSS

NOT SOLD SEPARAT

STRIP - 610 mm (24 inch) long, cut from 1330108CX bulk seal, see below, cab door opening rear

2шт.

12

1321545C1

HANDLE

- grab

1шт.

13

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

2шт.

14

1321286C3

LINING

SHEET - foam insulation

1шт.

15

1276309C1

SUPPORT

- filler

1шт.

16

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, No. 10 NC x 3/8 inch

6шт.

20

1301129C1

DOOR

- clean out

1шт.

21

377363R2

THUMB SCREW,1/4" - 20 x 3/4"

- clean out cover

2шт.

22

1301128C1

NUT

- thumb screw

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - 246 mm (9-11/16 inch) long, cut from 1300025C1 bulk strip, see below, seal, clean out door

1шт.

24

198244C1

GLASS

- left-hand rear

1шт.

25

NSS

NOT SOLD SEPARAT

STRIP - 2210 mm (87 inch) long, cut from 198131C2 bulk strip, see below, seal, cab left-hand rear glass

1шт.

26

198247C1

GLASS

- cab rear

1шт.

27

NSS

NOT SOLD SEPARAT

STRIP - 3124 mm (123 inch) long, cut from 198131C2 bulk strip, see below, seal, cab rear glass

1шт.

28

198184C1

GLASS

- cab, right-hand front

1шт.

29

NSS

NOT SOLD SEPARAT

STRIP - 3302 mm (130 inch) long, cut from 198131C2 bulk strip, see below, seal, right-hand front glass

1шт.

30

NSS

NOT SOLD SEPARAT

CAB - operator, order cab assembly (Order 1330154C92)

1шт.

198131C2

SEAL, GLASS

SEAL - bulk, 3048 mm (120 inch) long

1шт.

1330108CX

SEAL,304.8mm L

TRIM - edge, bulk, 15240 mm (600 inch) long

1шт.

1300025C1

GASKET

STRIP - seal, 305 mm (12 inch) long

1шт.

31

1327768C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 38mm

- self-tapping, special, 5/16 inch

10шт.

32

1327545C1

SELF-TAP SCREW,Hex Wshr Hd, 5/16" - 18 x 32mm

- self-tapping, special, 5/16 inch

4шт.

33

1330064C1

FLANGE NUT

- hex flange, self-locking, polyseal, 5/16 inch NC

6шт.

34

1329797C1

PLUG

- rubber

1шт.

35

1330146C1

BOLT,Hex Wshr Hd, 3/8" - 16 x 1 1/2"

- hex washer head, special, 3/8 NC x 1-1/2 inch

2шт.

36

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

3шт.

37

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

38

1301236C1

SEALING STRIP

- 787 mm (31 inch) long

1шт.

39

198600C2

SEALING STRIP

SEAL - 3962 mm (156 inch) long

1шт.

40

1276305C1

SUPPORT

- hose cover

1шт.

41

261-1456

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, No. 10 NC x 3/8 inch

6шт.

42

392801R3

LATCH

STRIKER - door catch, if used

1шт.

43

442-1258

SCREW,Cross Oval Hd, 1/4"-20 x 1/2"

- machine, oval Phillips, 1/4 NC x 1/2 inch

2шт.

44

493-51026

LOCK WASHER,Ext Csk Tooth, 1/4"

WASHER - countersunk, external tooth lock, 1/4 inch

2шт.
