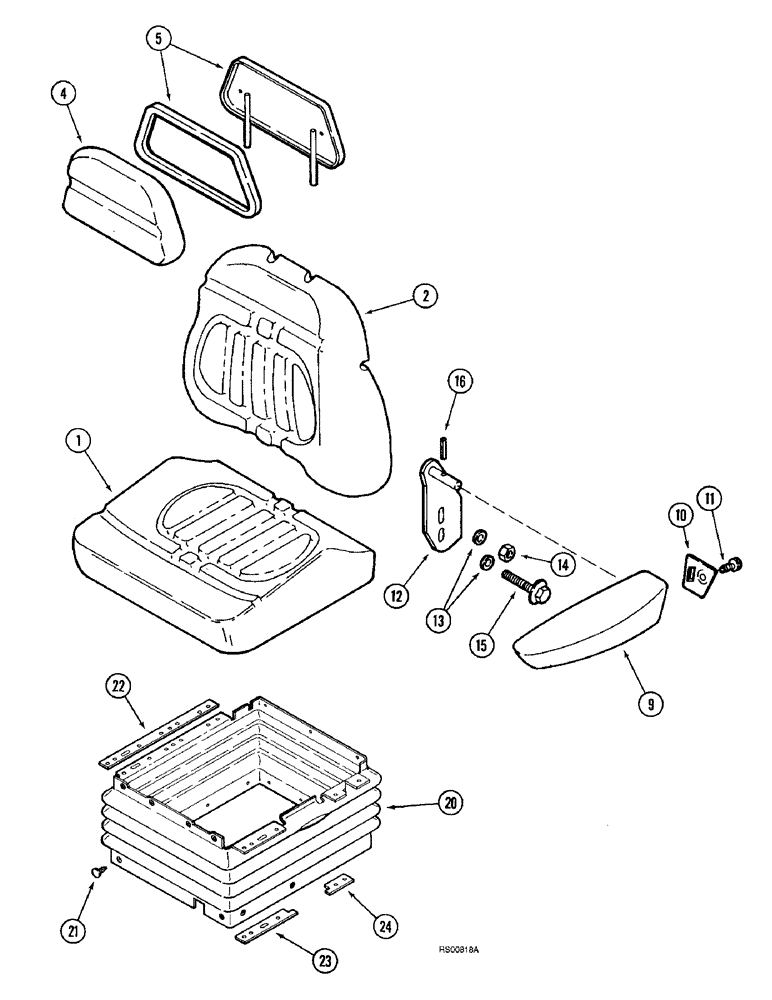

Запчасти Case IH 1680 (9G-18) - OPERATORS SEAT, GRAMMER, CUSHIONS (10) - CAB & AIR CONDITIONING

91788C91

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 24, 1 - 18 on Figure 9G-20 and 1 - 50 on Figure 9G-22

1шт.

98141C1

KIT

- cushion repair, Includes: Ref. 1 & 2

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

98143C1

KIT

- extension, repair, Includes: Ref. 4 & 5

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - extension, backrest

1шт.

5

NSS

NOT SOLD SEPARAT

SUPPORT - cushion

1шт.

98142C1

ARMREST ASSY.

KIT - arm rest, repair, Includes: Ref. 9 - 15

1шт.

9

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

10

NSS

NOT SOLD SEPARAT

COVER - armrest, left

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW - cover retaining

1шт.

12

NSS

NOT SOLD SEPARAT

SUPPORT - armrest

1шт.

13

NSS

NOT SOLD SEPARAT

WASHER - flat

2шт.

14

60-4845T1

NUT

- hex, self locking, 8 mm

1шт.

15

60-4843T1

SCREW

BOLT - hex, 8 - 1.25 x 18 mm

1шт.

16

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

98150C1

KIT

- suspension bellows, repair, Includes: Ref. 20 - 24

1шт.

20

NSS

NOT SOLD SEPARAT

COVER - suspension

1шт.

21

60-1613T1

FASTENER

- snap

25шт.

22

60-1632T1

PLATE

- cover strip, right-hand

1шт.

23

60-4912T1

PLATE

- cover strip, left-hand front

1шт.

24

60-4913T1

PLATE

- cover strip, left-hand rear

1шт.

98140C1

KIT

- seat top, includes all parts above suspension

1шт.

98147C1

KIT

- seat chassis, repair, includes all parts above suspension except for armrest, backrest, seat cushion and backrest extension

1шт.
