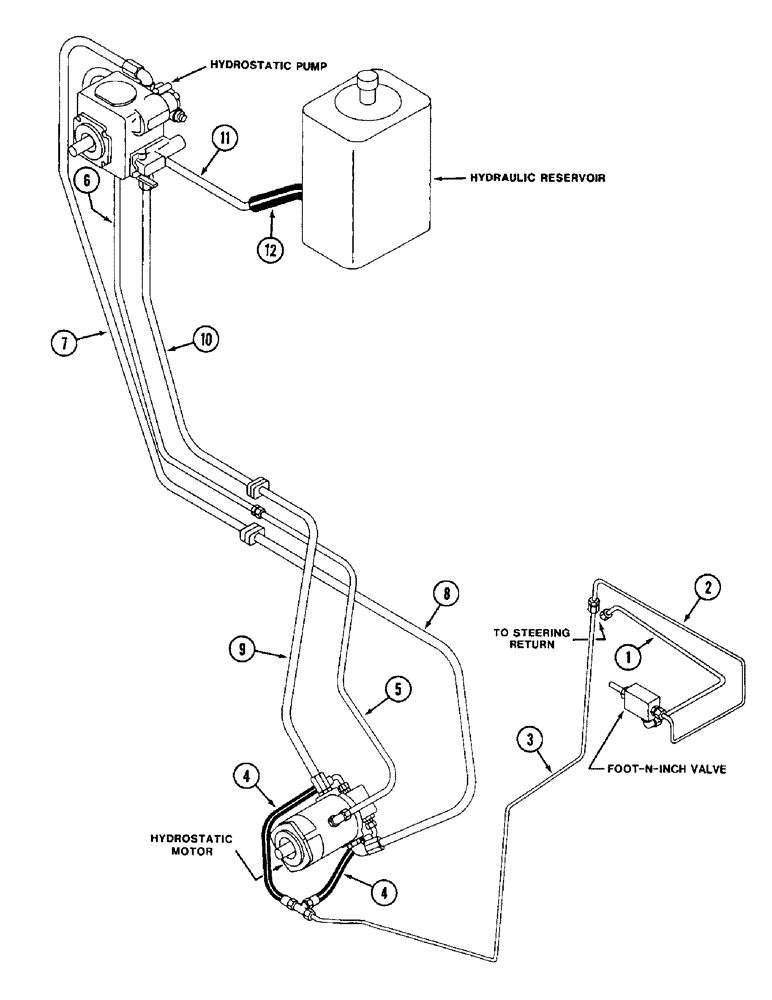

Запчасти Case IH 1680 (1-24) - PICTORIAL INDEX, SINGLE SPEED PROPULSION CIRCUIT (00) - PICTORIAL INDEX

1

Foot-N-Inch Valve Return Tube, Page 6-17

1шт.

2

Foot-N-Inch Upper Tube, Page 6-17

1шт.

3

Foot-N-Inch Lower Tube, Page 6-17

1шт.

4

Foot-N-Inch Hose, Page 6-17

1шт.

5

Bleed Lower Tube, Page 6-11

1шт.

6

Bleed Upper Tube, Page 6-11

1шт.

7

Drive Reverse Upper Pressure Tube, Page 6-11

1шт.

8

Drive Reverse Lower Pressure Tube, Page 6-11

1шт.

9

Drive Forward Lower Pressure Tube, Page 6-11

1шт.

10

Drive Forward Upper Pressure Tube, Page 6-11

1шт.

11

Charge Suction Tube, Page 8-7

1шт.

12

Charge Suction Hose, Page 8-7

1шт.
