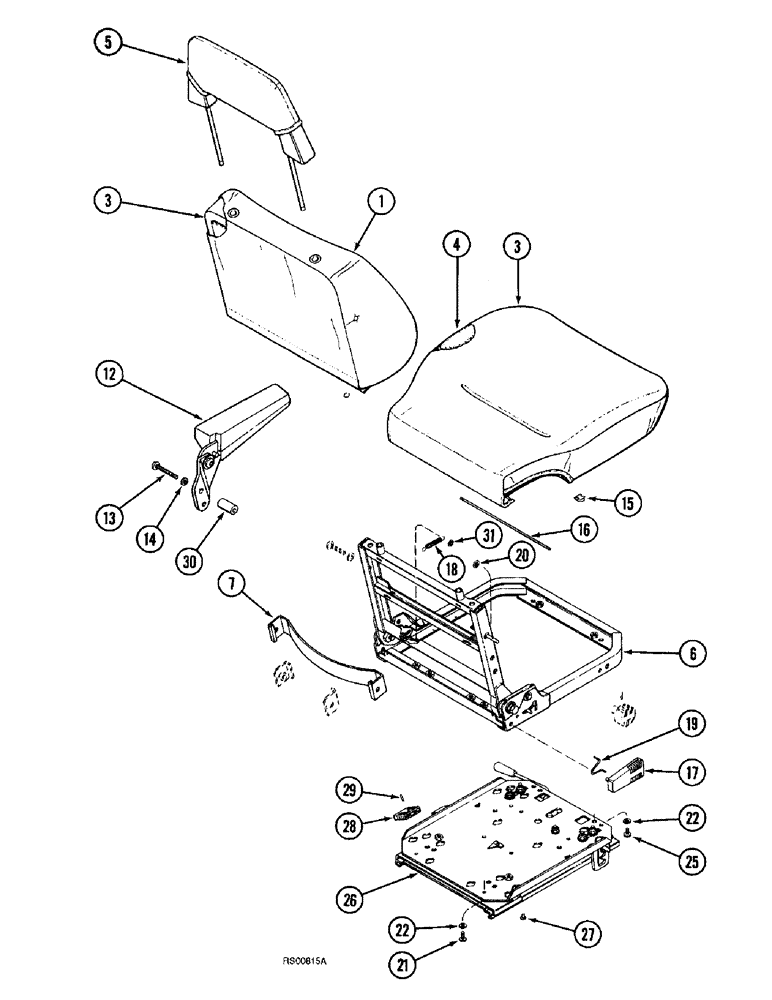

Запчасти Case IH 1680 (9G-12) - OPERATOR SEAT, BOSTROM, CUSHION AND FRAME (10) - CAB & AIR CONDITIONING

91789C91

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 31, 1 - 6 on Figure 9G-14 and 1 - 39 on Figure 9G-16

1шт.

1990651C2

SEAT

ASSEMBLY - mechanical suspension, Includes: Ref. 1 - 31

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - backrest cushion

1шт.

2

NSS

NOT SOLD SEPARAT

CUSHION - backrest foam

1шт.

3

NSS

NOT SOLD SEPARAT

COVER - seat cushion

1шт.

4

NSS

NOT SOLD SEPARAT

CUSHION - seat foam

1шт.

5

NSS

NOT SOLD SEPARAT

EXTENSION - backrest

1шт.

6

NSS

NOT SOLD SEPARAT

FRAME - seat

1шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT - lumbar

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

12

NSS

NOT SOLD SEPARAT

ARMREST - seat

1шт.

Part of Arm Rest Service Kit, P/N 1954466C1

1шт.

13

NSS

NOT SOLD SEPARAT

SCREW - retaining, 8 x 60 mm

2шт.

Part of Arm Rest Service Kit, P/N 1954466C1

1шт.

14

NSS

NOT SOLD SEPARAT

WASHER - lock, 8 mm

2шт.

Part of Arm Rest Service Kit, P/N 1954466C1

1шт.

15

NSS

NOT SOLD SEPARAT

CLIP - retaining, D type

15шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

16

NSS

NOT SOLD SEPARAT

ROD - pouch

1шт.

17

NSS

NOT SOLD SEPARAT

HANDLE - recline

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING - tension

2шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

19

NSS

NOT SOLD SEPARAT

SPRING - adjusting

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

20

NSS

NOT SOLD SEPARAT

RETAINER - spring

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 20 mm

2шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - lock, 6 mm

4шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW - retaining, 6 x 16 mm

2шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

26

NSS

NOT SOLD SEPARAT

SLIDER ASSEMBLY - seat

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

27

NSS

NOT SOLD SEPARAT

BUTTON - slider

2шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

28

NSS

NOT SOLD SEPARAT

HANDLE - slider

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

29

NSS

NOT SOLD SEPARAT

PIN - roll

1шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

30

NSS

NOT SOLD SEPARAT

SPACER - armrest retaining

2шт.

Part of Top Seat Service Kit, P/N 1954469C1

1шт.

Part of Arm Rest Service Kit, P/N 1954466C1

1шт.

31

NSS

NOT SOLD SEPARAT

RETAINER - recliner

1шт.

Part of Miscellaneous Service Kit, P/N 1954471C1

1шт.

1954471C1

KIT

- service, miscellaneous, Includes: ref. nos 15, 17, 18, 19, 20, 27 and 31, Includes items on Figures 9G-14 and 9G-16

1шт.

1954469C1

KIT

- service, top, seat, Includes: ref. nos. 7, 15, 17, 18, 19, 20, 21, 22, 25, 26, 27, 28, 29 and 31 and Figure 9G-14

1шт.

1954466C1

KIT

- service, arm rest, Includes: ref. nos. 12, 13, 14, 30

1шт.

1954472C1

KIT

- service, trim, includes items 1, 3, 15 and 16 on this Figure

1шт.
