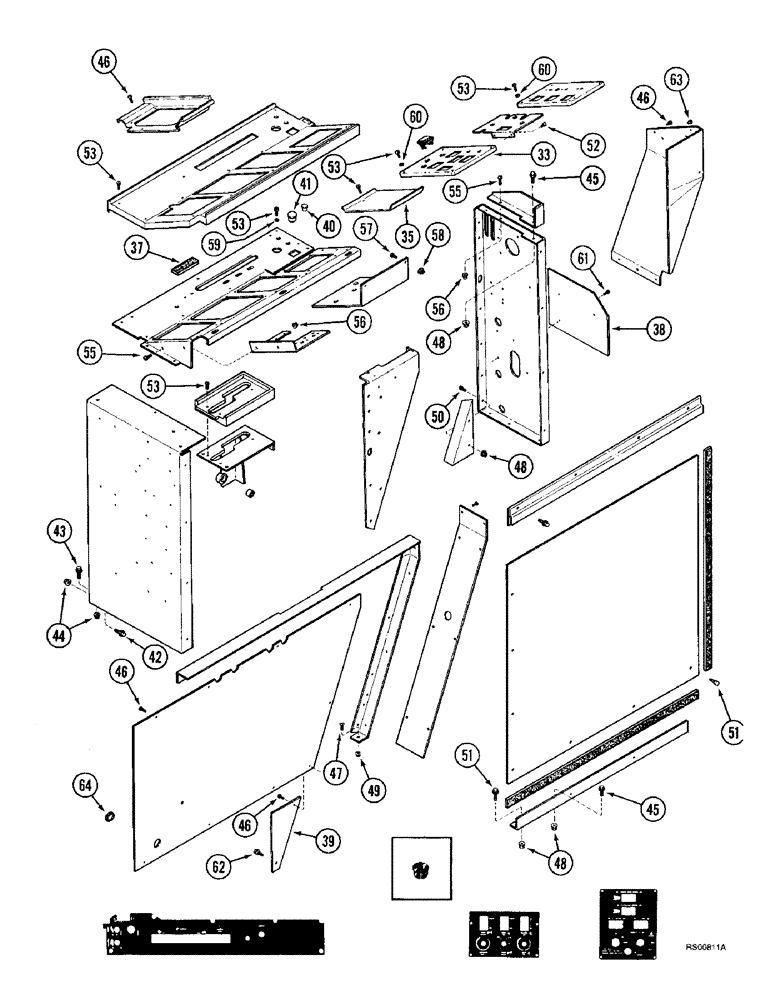

Запчасти Case IH 1680 (9G-04) - CAB, RIGHT-HAND CONSOLE (CONTD) (10) - CAB & AIR CONDITIONING

33

1276211C1

PANEL

- machine control, replaces 1324967C1 panel

1шт.

35

187573C1

COVER

- fuse panel

1шт.

37

NSS

NOT SOLD SEPARAT

SEAL - 3 inch, cut from 195917C1 bulk seal, see below, console cover

2шт.

38

1327985C1

PLATE

- hole cover

1шт.

39

91705C1

PLATE

BAR - right-hand lower console

1шт.

40

353-402

PLUG,Dome, .375" hole, Nylon

2шт.

41

183617C1

PLUG

- right-hand console

1шт.

42

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

2шт.

43

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

2шт.

44

231-5146

FLANGE NUT,3/8"-16

4шт.

45

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

10шт.

46

143306C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - pan head cross slotted, No. 10-16 x 1/2 inch

32шт.

47

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

BOLT - serrated slotted truss head, 5/16 NC x 1/2 inch

1шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

14шт.

49

1254276C1

PUSH-ON NUT

- push-on type, 5/16 inch

1шт.

50

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

51

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

52

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tapping, hex head, 1/4 NC x 1/2 inch

10шт.

53

24613R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 3/4"

SCREW - oval head, No. 10-16 x 3/4 inch

23шт.

55

477-82512

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"

BOLT - serrated slotted truss head, 1/4 NC x 3/4 inch

3шт.

56

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

57

340-11012

SCREW,Cross Pan Hd, #10-24 x 3/4"

- machine, pan Phillips, No. 10 NC x 3/4 inch

4шт.

58

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

59

495-81117

WASHER,.344" x 1" x .120"

- flat, 11/32 x 1 x 7/64 inch

3шт.

60

1329968C1

WASHER

- oval head (Black)

8шт.

61

261-2478

SELF-TAP SCREW,1/4 -20x1/2 F Pan

SCREW - self-tapping, pan Phillips, 1/4 NC x 1/2 inch

3шт.

62

281-14816

SELF-TAP SCREW,HWH, 5/16" - 18 x 1"

SCREW - self-tapping, hex washer head, 5/16 NC x 1 inch

1шт.

63

1321784C1

PLUG

- nylon, 5/16 inch

2шт.

64

353-403

PLUG,Dome, .437" hole, Nylon

1шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 15240 mm (600 inch) long

1шт.
