Запчасти Case IH 1680 (9G-02) - CAB, RIGHT CONSOLE (10) - CAB & AIR CONDITIONING

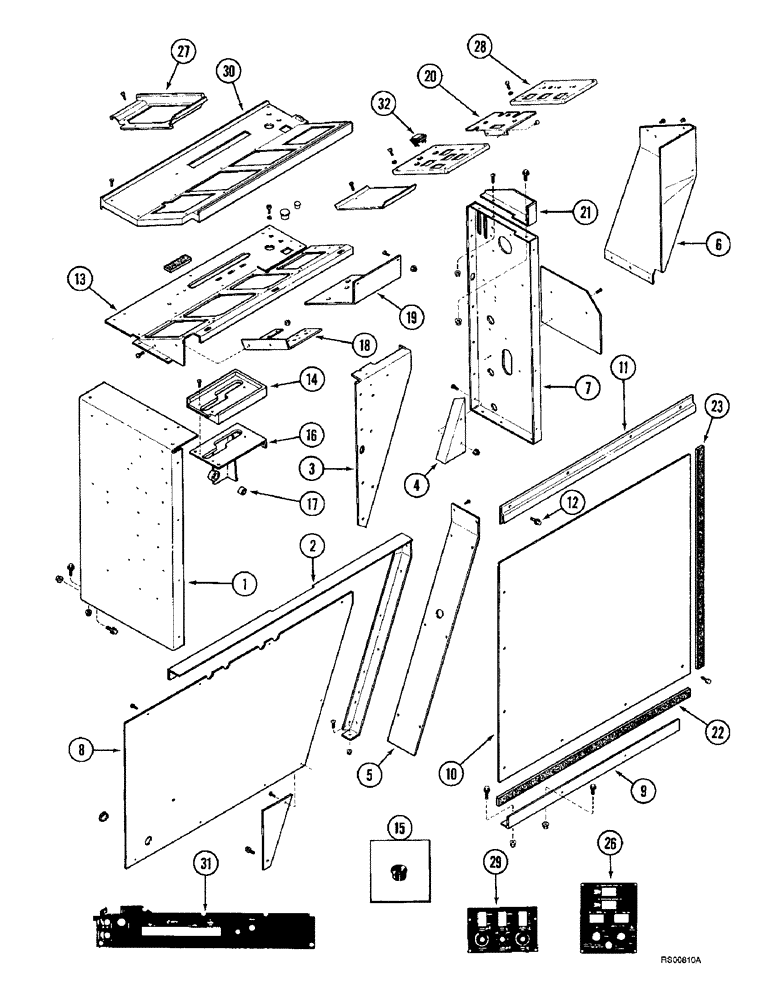

Схема запчастей Case IH 1680 - (9G-02) - CAB, RIGHT CONSOLE (10) - CAB & AIR CONDITIONING
26
12
30
16
3
18
28
15
14
6
13
9
11
10
21
31
20
7
17
4
32
19
1
8
5
29
2
27
23
22

Артикул

Название

Примечание

Количество

1

1321966C3

SUPPORT

- console, rear

1шт.

2

193031C3

SUPPORT

FRAME - console, right-hand front

1шт.

3

195992C2

SUPPORT

- console extension

1шт.

4

195991C1

SUPPORT

- console extension, lower

1шт.

5

193034C1

SUPPORT

- console extension, front

1шт.

6

1283101C2

SUPPORT

- console extension, lower front

1шт.

7

1987556C2

COVER

SUPPORT - console, front

1шт.

8

91704C3

LARGE PLATE

PLATE - right console inner

1шт.

9

193033C2

ANGLE

- lower

1шт.

10

1301218C1

PLATE

- right-hand console

1шт.

11

1301334C1

SUPPORT

- outer cover, right-hand

1шт.

12

281-34712

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

4шт.

13

1301210C6

SUPPORT

- upper console, right-hand

1шт.

14

198988C1

COVER

- hydrostatic drive support

1шт.

15

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- 3/4 inch ID

2шт.

16

193277C91

SUPPORT ASSY.

SUPPORT ASSEMBLY - hydrostatic drive, Includes: Ref. 17

1шт.

17

165704C1

BUSHING

- tightener lever

1шт.

18

1280162C3

SUPPORT

- fuse block

1шт.

19

1280424C1

BRACKET

SUPPORT - rear lamp machine control

1шт.

20

1280422C1

BRACKET

SUPPORT - rear lamp front control

1шт.

21

1327501C1

SUPPORT

- front panel

1шт.

22

NSS

NOT SOLD SEPARAT

STRIP - 686 mm (27 inch) long, cut from 195917C1 bulk seal, see below, right-hand console cover

2шт.

23

NSS

NOT SOLD SEPARAT

STRIP - 686 mm (27 inch) long, cut from 195917C1 bulk seal, see below, right-hand console cover

2шт.

26

1280167C2

DECAL

- control panel

1шт.

27

1280125C1

FRAME

- control panel

1шт.

28

1280158C2

PANEL

- control, front, replaces 1324968C1 panel

1шт.

29

1280159C1

DECAL

- header control panel

1шт.

30

87366C1

COVER

- instrument panel, replaces 1324972C1 cover

1шт.

31

1327827C2

DECAL

- right-hand console

1шт.

32

245334C1

PLUG

- panel switch cover

5шт.

195917C1

GASKET

SEAL - bulk, foam, adhesive-backed, 15240 mm (600 inch) long

1шт.

Выбрано товаров: 31
