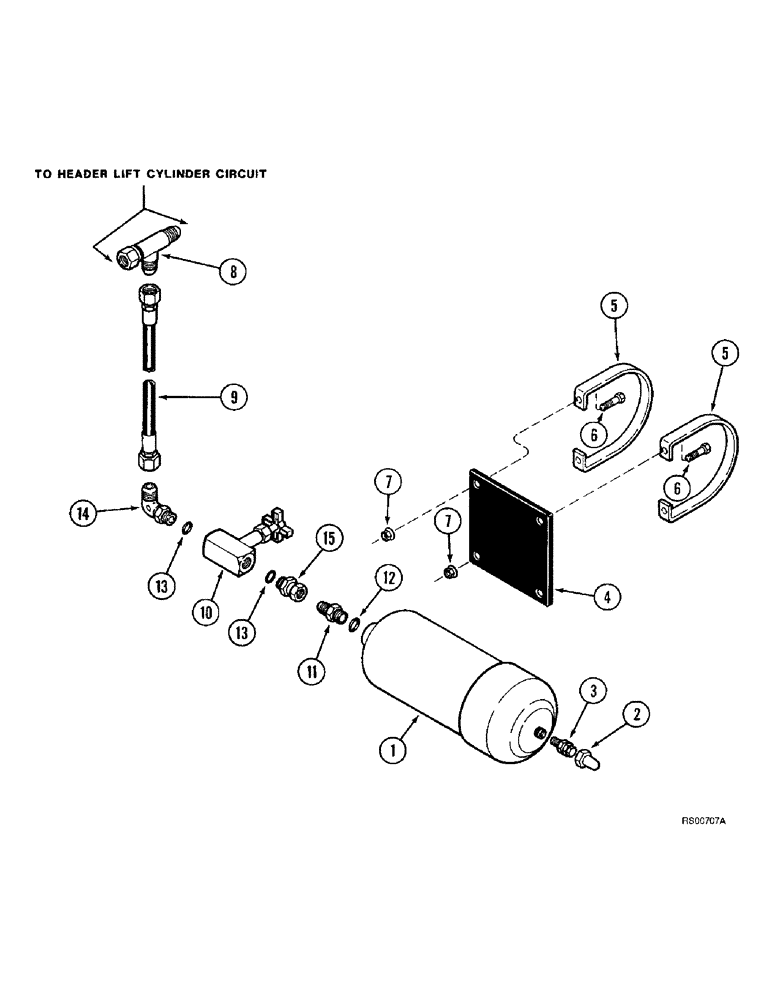

Запчасти Case IH 1680 (8-80) - ACCUMULATOR, 84927C91 (07) - HYDRAULICS

1

84927C91

TANK

ASSEMBLY - accumulator, no longer available and is replaced by all the parts listed on Figure 8-82, Includes: Ref. 2 & 3

1шт.

2

172131C1

GUARD

- valve

1шт.

3

172130C91

VALVE

- accumulator

1шт.

4

196821C1

STRIP

CUSHION - accumulator

1шт.

5

172133C1

SUPPORT

- accumulator

2шт.

6

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

8

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel

1шт.

9

381173R91

HOSE,12.7mm ID x 209.55mm L, SAE 100R1

- 736 mm (29 inch) long

1шт.

10

183510C1

VALVE

- needle

1шт.

11

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 12

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring boss, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

1327736C1

ELBOW

ADAPTER - straight, special, female x O-ring boss, Includes: Ref. 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
