Запчасти Case IH 1680 (8-74) - FEEDER CLUTCH VALVE, CONTROL CONCEPTS (07) - HYDRAULICS

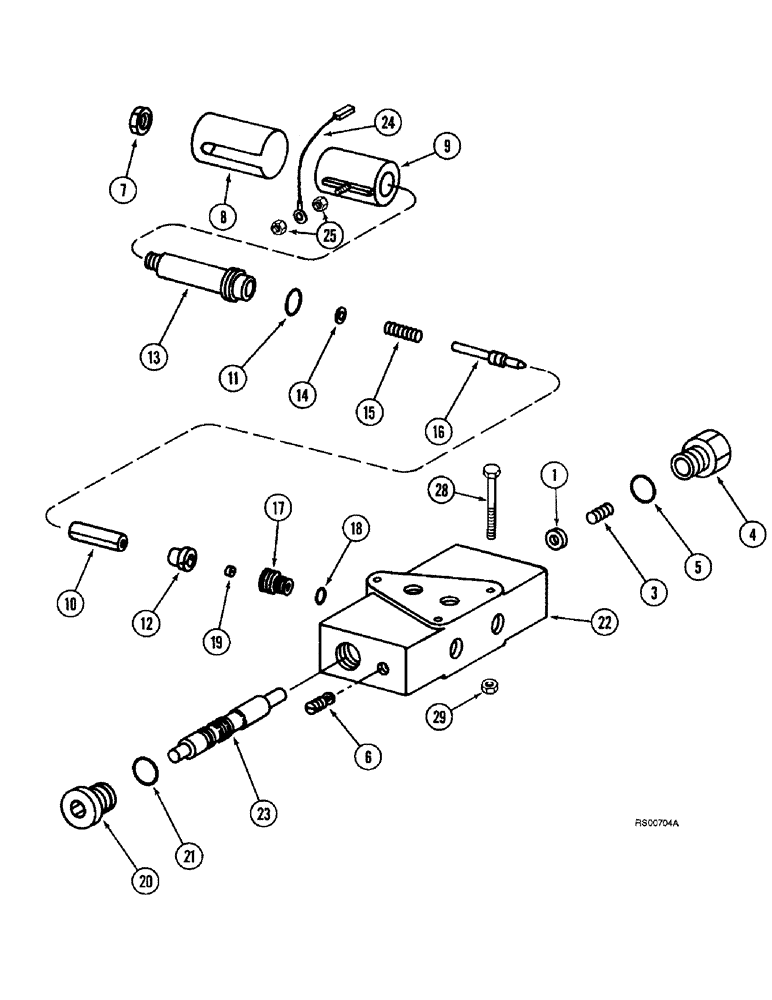

Схема запчастей Case IH 1680 - (8-74) - FEEDER CLUTCH VALVE, CONTROL CONCEPTS (07) - HYDRAULICS
7
19
21
22
3
16
23
28
24
5
11
4
18
8
12
17
13
10
29
1
9
20
6
15
25
14

Артикул

Название

Примечание

Количество

1301171C91

VALVE

ASSEMBLY - feeder and separator clutch, Includes: Ref. 1 - 25

1шт.

1

1301687C1

WASHER

- spring

1шт.

3

1301728C1

SPRING

- valve

1шт.

4

1301686C1

CAP

PLUG - hex, special

1шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

6

1301631C1

PLUG,5/16" - 24 x 14.80mm, Slotted, HT

PLUG - valve body

1шт.

7

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

1шт.

8

1301632C1

CAP

COVER - coil

1шт.

9

1301730C1

VALVE

COIL - valve

1шт.

10

1301648C1

ARMATURE

- valve

1шт.

11

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

12

1301624C1

BUSHING

- poppet

1шт.

13

1301627C3

SLEEVE

- poppet

1шт.

14

1301642C1

WASHER

- spring retaining

1шт.

15

1301729C1

SPRING

- poppet

1шт.

16

1301647C1

POPPET

- valve

1шт.

17

1301625C1

ORIFICE

- valve

1шт.

18

238-6010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

19

1301649C1

PLUG

PLUG - orifice

1шт.

20

1301688C1

PLUG

- spool

1шт.

21

529909R1

O-RING,1.78mm Thk x 2.54mm ID

- 7/64 ID x 1/4 inch wide

1шт.

22

NSS

NOT SOLD SEPARAT

BODY - valve

1шт.

23

NSS

NOT SOLD SEPARAT

SPOOL - valve

1шт.

24

187736C1

CABLE

- separator clutch valve

1шт.

25

225-14210

NUT,#10-32

2шт.

Выбрано товаров: 25
