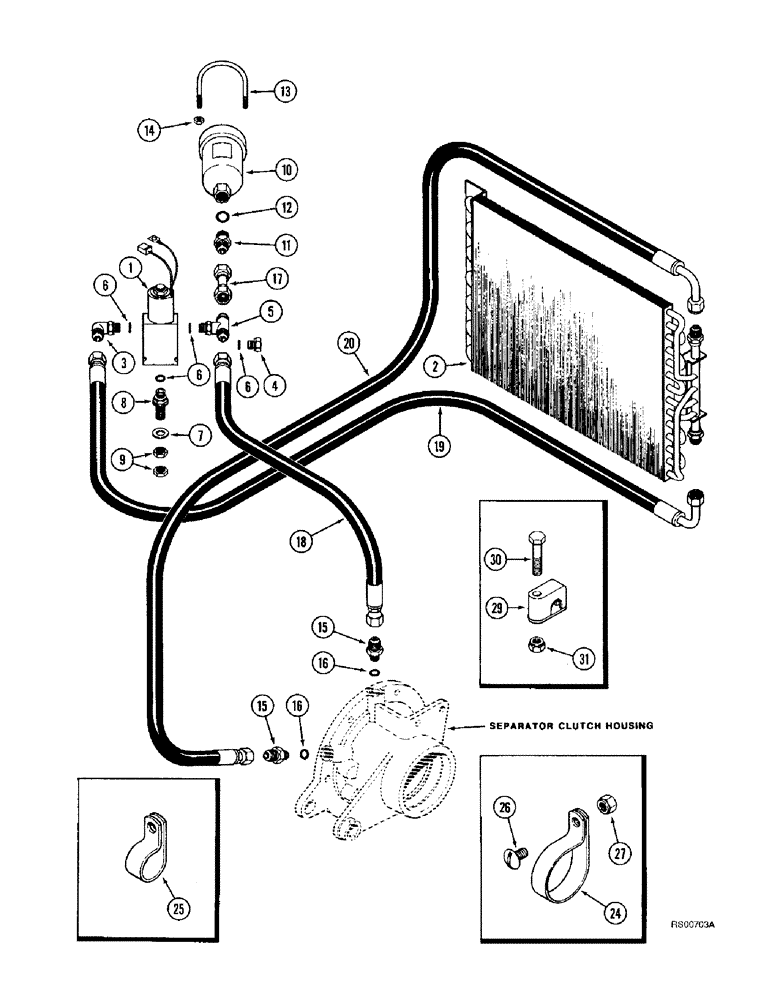

Запчасти Case IH 1680 (8-72) - SEPARATOR CLUTCH SYSTEM (07) - HYDRAULICS

1

187505C91

VALVE

ASSEMBLY - separator clutch, parts list Figure 8-76

1шт.

2

183747C1

OIL COOLER

COOLER - oil

1шт.

3

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree, 3/4-16 flare x 9/16-18 inch adj O-ring boss, Includes: Ref. 3A

1шт.

4

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 4A Hex Hd, 9/16"-18 ORB

1шт.

5

183774C1

TEE

- separator clutch

1шт.

7

156276C1

WASHER

- rubber, special, 1/2 x 1 x 1/16 inch

1шт.

8

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, 9/16-18 inch flare x bulkhead flare, Includes: Ref. 8A

1шт.

9

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

10

1346058C1

ACCUMULATOR

- separator clutch, replaces 183776C2 accumulator

1шт.

11

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 12

1шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

13

186505C1

BOLT,U, 1/4" - 20 x 3.2"

U-BOLT - absorber mounting

1шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

15

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 3/4-16 flare x 9/16-18 inch O-ring boss, Includes: Ref. 16

2шт.

17

183775C1

HYD TUBE

TUBE - separator clutch accumulator

1шт.

18

D69797

HOSE

- 457 mm (18 inch) long, valve to gear case, replaces 183773C1 hose

1шт.

19

183525C1

HOSE

- 1145 mm (45 inch) long, Serial Range: cooler-valve

1шт.

20

183748C2

HOSE,12.7mm ID x 1460.5mm L, SAE 100R1

- 1460 mm (57-1/2 inch) long, gear case to oil cooler

1шт.

24

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

1шт.

25

515-23254

CLAMP,1", Insul, 3/8" Bolt

P-type 1", Insul, 3/8" Bolt

1шт.

26

1270468C1

SELF-TAP SCREW,Cross Pan Hd, 5/16" - 18 x 1/2"

SCREW - cross slotted pan head lock, 5/16 NC x 1/2 inch

2шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

29

196447C1

CLAMP

- mounting

2шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

30

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

3a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

4a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

8a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
