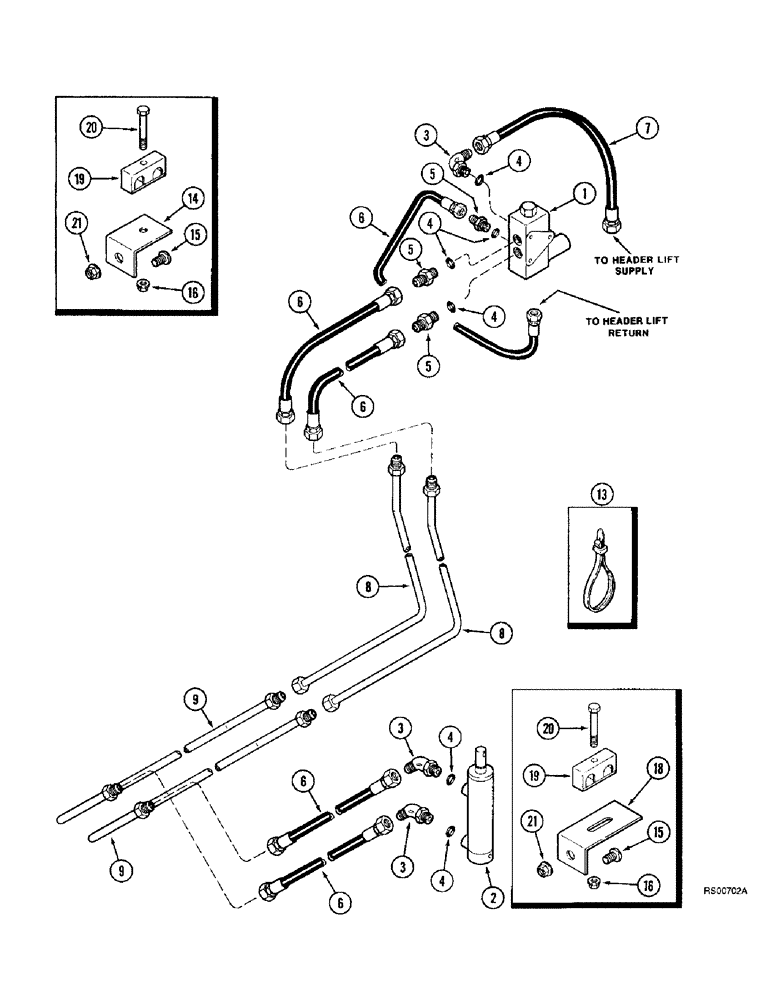

Запчасти Case IH 1680 (8-70) - FEEDER CLUTCH SYSTEM, CONCEPTS CONTROL (07) - HYDRAULICS

1

187505C91

VALVE

ASSEMBLY - feeder clutch, parts list Figure 8-76

1шт.

2

133405C92

CYLINDER

ASSEMBLY - 51 (2) ID x 63 mm (2-1/2 inch) stroke, feeder clutch, parts list Figure 8-78

1шт.

2

87337239R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), PRIOR TO JJC0045689, Assembly, 51 (2) ID x 63 mm (2-1/2 inch) stroke, feeder clutch (1/86-12/92), Reman for New PN 133405C92

1шт.

2

87337239C

CORE-HYD CYLINDER

Return Number

1шт.

3

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 45 degree, 9/16-18 inch flare x adj O-ring boss, Includes: Ref. 4

3шт.

5

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 5A

3шт.

6

1280792C1

HYDRAULIC HOSE,9.52 mm ID x 535.00 mm

9.52 mm ID x 535.00 mm

5шт.

7

632455R91

HOSE

- 355 mm (14 inch) long

1шт.

8

187815C1

HYD TUBE

TUBE - feeder clutch, upper

2шт.

9

187816C1

HYD TUBE

TUBE - feeder clutch, lower

2шт.

13

702093C1

CABLE TIE

STRAP - tie

1шт.

14

187834C1

ANGLE

BRACKET - feeder clutch tube upper

2шт.

15

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

5шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

5шт.

18

187833C1

SUPPORT

- mounting

3шт.

19

183825C1

CLAMP

- clutch tubes

5шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

20

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

5шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

5a

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
