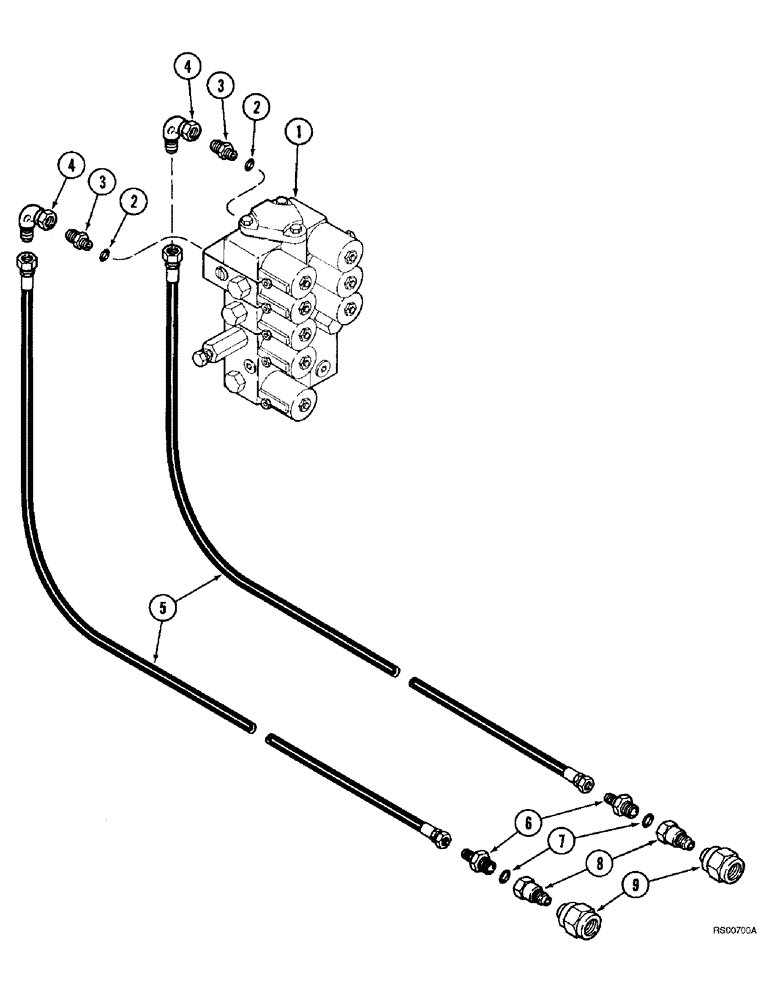

Запчасти Case IH 1680 (8-66) - REEL POSITION AND SPEED SYSTEM, COMBINES WITH 825 HEADER, NOT NORTH AMERICA (07) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - reel drive, See Figure 8-32

1шт.

2

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch flare x O-ring boss, Incl. Ref. 3

2шт.

4

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel

2шт.

5

1301350C2

HYDRAULIC HOSE

HOSE - 3048 mm (120 inch) long

2шт.

6

218-5354

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

FITTING, 9/16"-18, 37° x 7/8"-14, O-Ring, Includes Ref. 7

2шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

8

3161090R1

COUPLING, BREAK AWAY

COUPLING - male, 7/8-14 inch thread

2шт.

9

3177270R1

COUPLING, BREAK AWAY

COUPLING - female

2шт.

3

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
