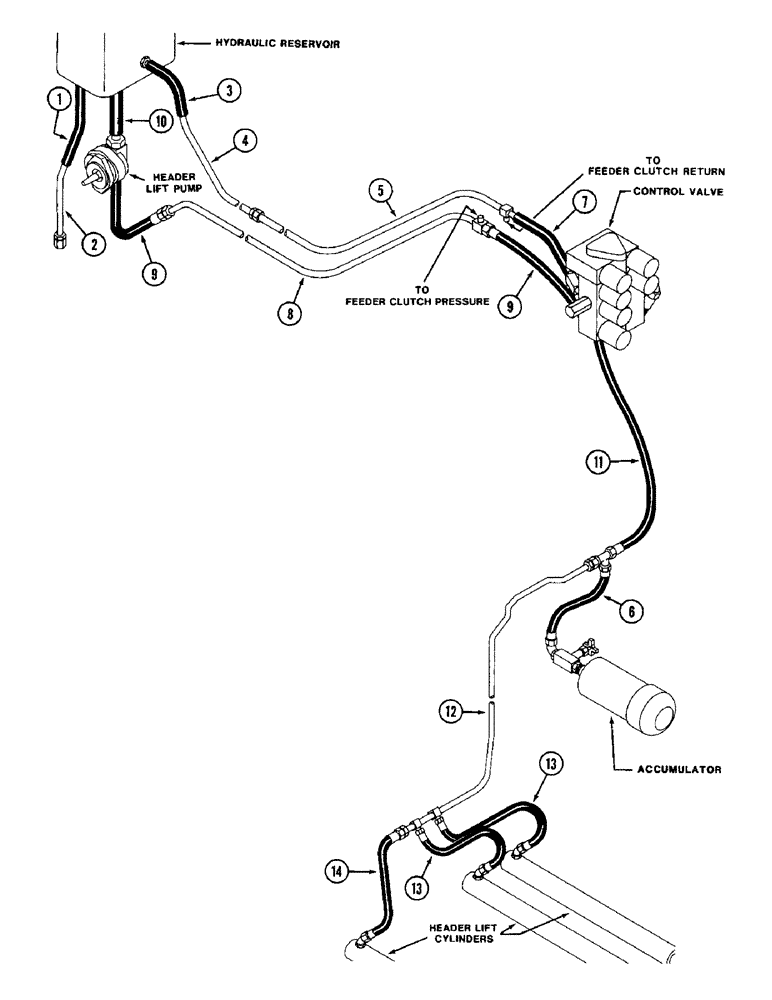

Запчасти Case IH 1680 (1-20) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Reservoir Drain Hose, Page 8-5

1шт.

2

Reservoir Drain Tube, Page 8-5

1шт.

3

Header Lift Return, Rear Hose, Page 8-15

1шт.

4

Header Lift Return, Rear Tube, Page 8-15

1шт.

5

Header Lift Return, Front Tube, Page 8-15

1шт.

6

Accumulator Hose, Page 8-81

1шт.

7

Header Lift Return Front Hose, Page 8-13

1шт.

8

Header Lift Pressure Tube, Page 8-13

1шт.

9

Header Lift Pressure Hoses, Page 8-13

1шт.

10

Header Lift Suction Hose, Page 8-13

1шт.

11

Header Lift Hose, Page 8-21

1шт.

12

Header Lift Cylinder Tube, Page 8-21

1шт.

13

Header Lift Cylinder Hose, Page 8-21

1шт.

14

Header Lift Cylinder Hose, Page 8-21

1шт.
