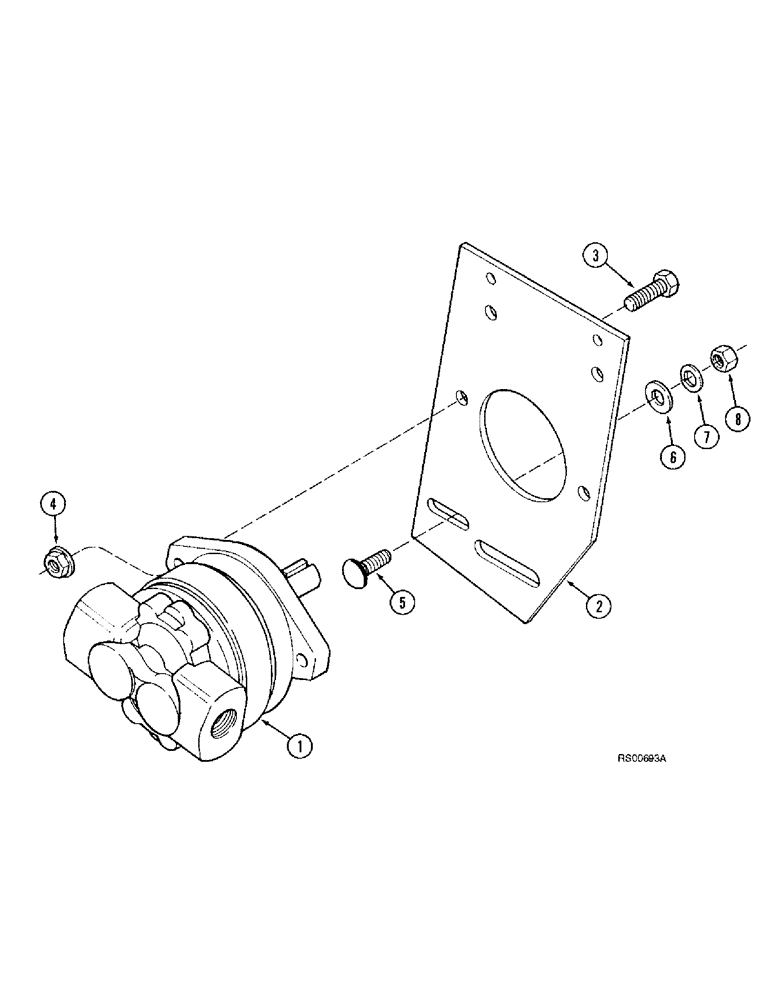

Запчасти Case IH 1680 (8-52) - HYDRAULIC REEL DRIVE PUMP MOUNTING (07) - HYDRAULICS

1

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, parts list Figure 8-54

1шт.

2

1315486C1

PLATE

- pump mounting

1шт.

3

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

5

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

3шт.

6

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.
