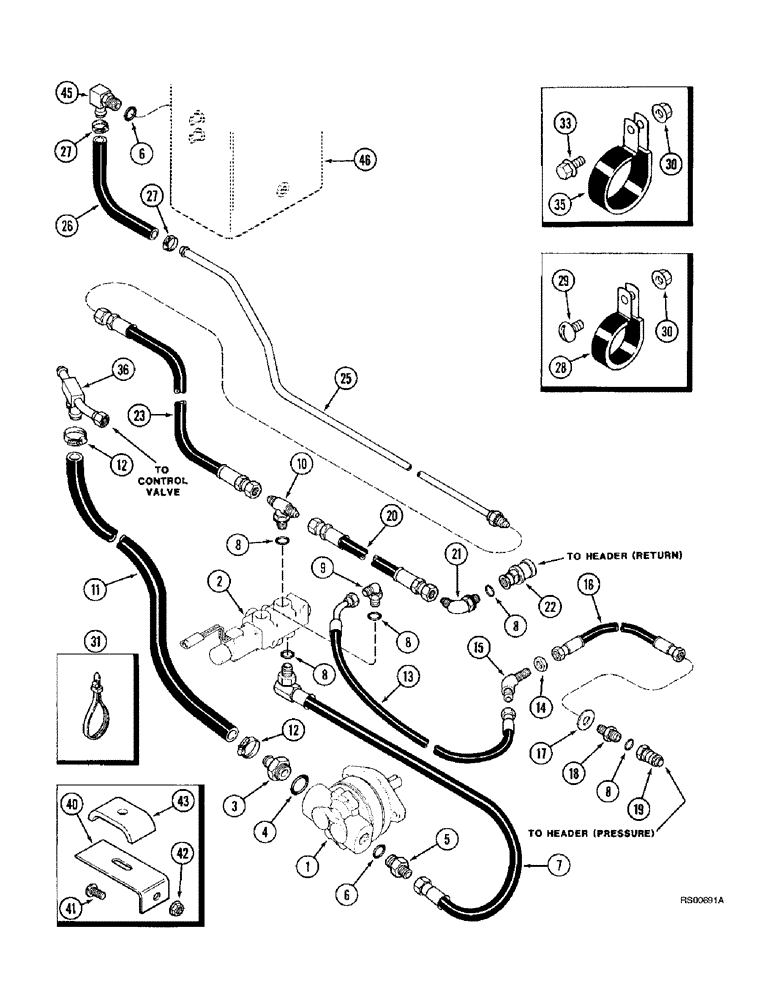

Запчасти Case IH 1680 (8-48) - HYDRAULIC REEL DRIVE SYSTEM (07) - HYDRAULICS

1

1272640C91

HYDRAULIC PUMP,46.7 CC

PUMP ASSEMBLY - reel drive, parts list Figure 8-54

1шт.

2

1272619C93

VALVE

ASSEMBLY - hydraulic, parts list Figure 8-56

1шт.

3

1282383C1

FITTING,1-5/8" - 12 ORB x

- beaded tube, 1 inch ID hose

1шт.

4

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

20-1, 90 Duro, 1.475" ID x .118" Thk

1шт.

5

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 6

1шт.

6

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

7

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- 900 mm (35 inch) long

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

9

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss, Includes: Ref. 9A

1шт.

9a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

10

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adj O-ring branch x flare x flare, Includes: Ref. 10A

1шт.

10a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

11

1322376C1

LARGE HOSE,25.4mm ID x 2500mm L

HOSE - 2500 mm (98-7/16 inch) long, reel drive suction

1шт.

12

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adj, 1-1/16 - 2 inch dia

2шт.

13

1327609C1

HOSE

- 533 mm (20 inch) long, reel drive pressure

1шт.

14

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, Blkhd, 3/4"-16

1шт.

15

1321284C1

FITTING

UNION - bulkhead, 45 degree

1шт.

16

1327580C1

HOSE

- 1040 mm (40-5/16 inch) long, steering hand pump pressure

1шт.

17

1345266C1

WASHER

- lock, white, special

1шт.

18

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 18A 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

18a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

19

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF, See Figure 8-88

1шт.

20

1327579C1

HOSE

- 330 mm (13 inch) long, return (54-1/2 inch feeder)

1шт.

20

1327610C1

HOSE

- 470 mm (18-1/2 inch) long, return (60 inch feeder)

1шт.

21

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 21A

1шт.

21a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

5шт.

22

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch, See Figure 8-88

1шт.

23

1327576C1

HOSE

- 2108 mm (82 inch) long, return

1шт.

25

1322451C1

HYD TUBE

TUBE - reel drive return

1шт.

26

NSS

NOT SOLD SEPARAT

HOSE - 610 mm (14 inch) long, cut from S118576X bulk hose, see below, return

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

2шт.

28

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

P-type 3/4", Insul, 3/8" Bolt

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

BOLT - serrated slotted truss head, 3/8 NC x 3/4 inch

3шт.

30

231-5146

FLANGE NUT,3/8"-16

12шт.

31

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

1шт.

33

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

35

515-25476

CLAMP,1 7/8", Insul, 1/2" Bolt

P-type 1 7/8", Insul, 1/2" Bolt

3шт.

36

REF

INSTRUCTION

TUBE - return manifold, See Figure 8-14, item 11

1шт.

40

187833C1

SUPPORT

- mounting

2шт.

41

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

42

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

43

165601C1

CLAMP

- reservoir drain tube

4шт.

45

217-363

FITTING,90 Degree Elbow, 5/8" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, 90°, 5/8" Hose x 1 1/16"-12 ORB Beaded

1шт.

46

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-02

1шт.

S118576X

LARGE HOSE,15.88mm ID x 7620mm L

HOSE - bulk, 16 (5/8) ID x 7620 mm (300 inch) long

1шт.
