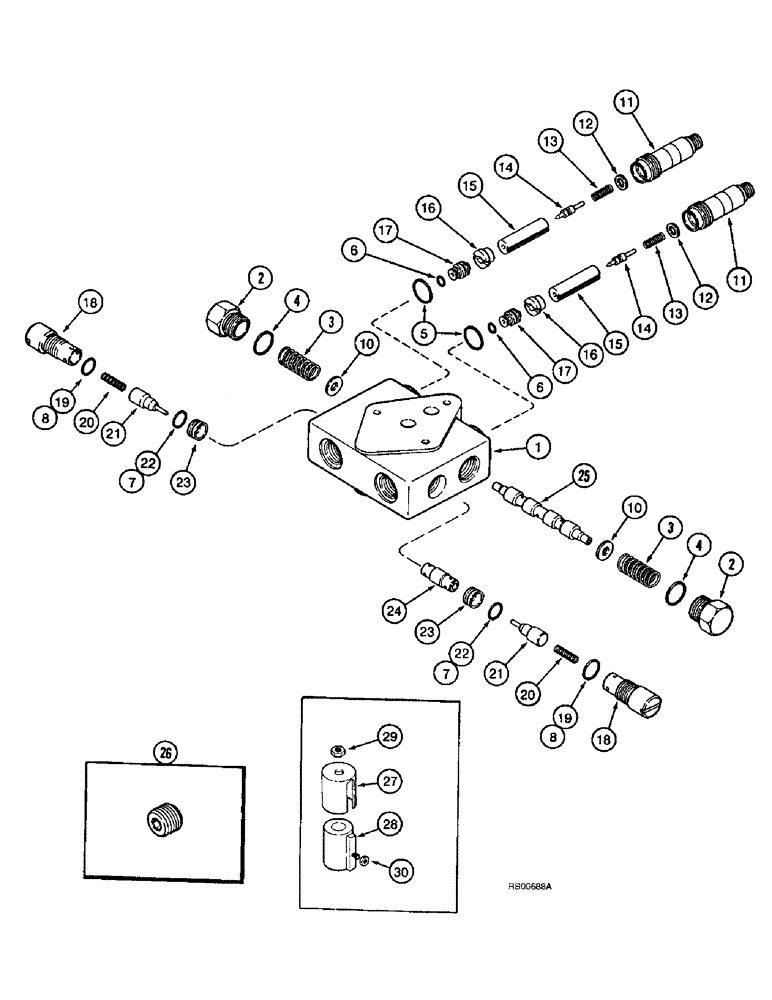

Запчасти Case IH 1680 (8-42) - DOUBLE PILOTED VALVE, FOR UNLOADER AUGER SWING AND REEL FORE/AFT 1267035C94 (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1267035C94
VALVE
ASSEMBLY - double piloted, replaces 1267035C92 valve assembly, no longer available, for service, order 124857A1 valve assembly, Figure 8-44, Includes: Ref. 1 - 30
1-2шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
1301686C1
CAP
PLUG - hex, special
2шт.
3
1301689C1
SPRING
- spool
2шт.
1282278C2
SEAL KIT
KIT - valve seal, Includes: Ref. 4 - 9
1шт.
4
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
2шт.
5
238-6019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
2шт.
6
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
2шт.
7
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
8
238-6114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
1шт.
10
1301687C1
WASHER
- spring
2шт.
11
1301627C2
SLEEVE
- poppet
2шт.
12
1301642C1
WASHER
- spring retaining
2шт.
13
1301640C1
SPRING
- poppet
2шт.
14
110550A1
VALVE POPPET
POPPET - valve
2шт.
15
1301648C1
ARMATURE
- valve
2шт.
16
1301624C1
BUSHING
- poppet
2шт.
17
1301625C1
ORIFICE
- valve
2шт.
1986831C2
PACKAGE
KIT - cross check valve, Includes: Ref. 18 - 23
2шт.
18
NSS
NOT SOLD SEPARAT
BODY - check valve
1шт.
19
238-6114
O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro
1шт.
20
1272887C1
SPRING
- poppet
1шт.
21
1986831C1
CHECK VALVE
POPPET - valve
2шт.
22
238-6014
O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro
1шт.
23
NSS
NOT SOLD SEPARAT
SEAT - valve
1шт.
24
1267162C1
VALVE
SPOOL - shuttle
1шт.
25
NSS
NOT SOLD SEPARAT
SPOOL - valve
1шт.
26
1301637C1
ORIFICE
- valve
2шт.
27
1301632C1
CAP
COVER - coil
2шт.
28
1301633C1
COIL
- valve
2шт.
29
107825
NUT,Stamped, 1/2"-20
- hex, 1/2 inch NF
2шт.
30
225-20210
NUT,#10-32, Brass
2шт.
9
237-6006
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk, Not used in this application
1шт.
Выбрано товаров: 33
