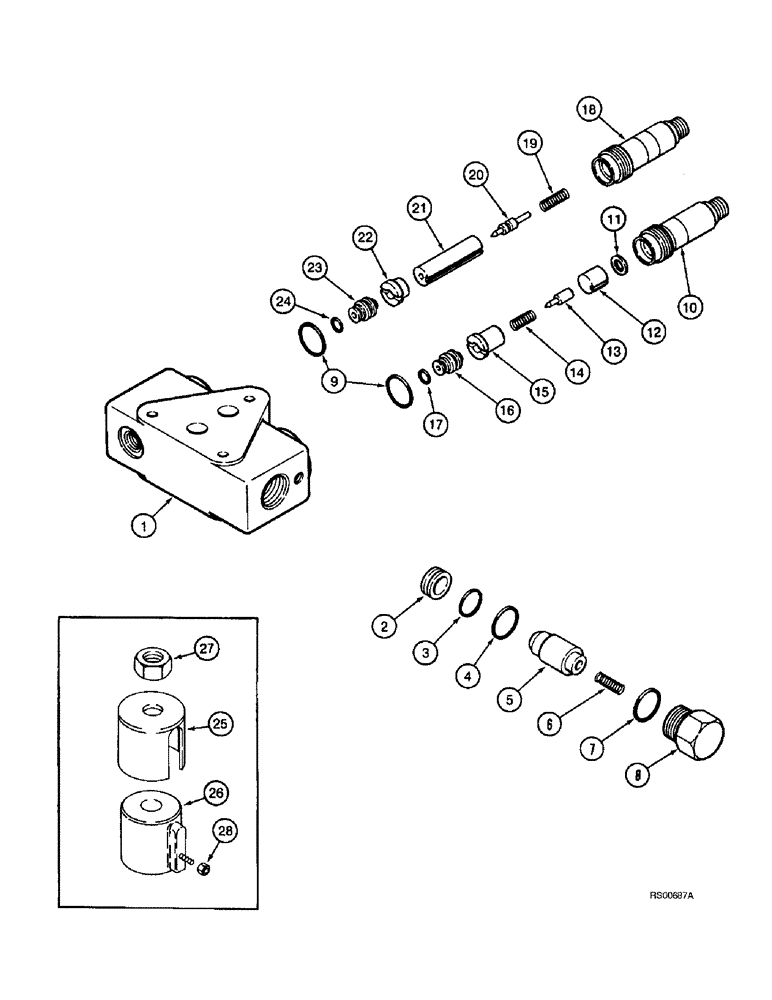

Запчасти Case IH 1680 (8-40) - UNLOAD/SINGLE BI-DIRECTIONAL VALVE, FOR REEL LIFT, 107981A3 (07) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
107981A3
VALVE
ASSEMBLY - unload/single bi-directional, reel lift, Includes: Ref. 1 - 28
1шт.
1
NSS
NOT SOLD SEPARAT
BODY - valve
1шт.
2
107966A1
SEAT
- poppet
1шт.
3
238-6015
O-RING,0.07" Thk x 0.551" ID, -15, Cl 6, 90 Duro
1шт.
Part of valve seal kit P/N 1282280C1
1шт.
4
238-5018
O-RING,0.07" Thk x 0.739" ID, -18, Cl 5, 75 Duro
-018, 70 Duro, .739" ID x .070" Thk
1шт.
Part of valve seal kit P/N 1282280C1
1шт.
5
107970A1
VALVE POPPET
POPPET - valve
1шт.
6
107967A1
SPRING
- poppet
2шт.
7
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
10-1, 90 Duro, .755" ID x .097" Thk
1шт.
Part of valve seal kit P/N 1282280C1
1шт.
8
107968A1
PLUG
- hex, special
1шт.
9
238-6019
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
2шт.
Part of valve seal kit P/N 1282280C1
1шт.
107972A1
VALVE
SOLENOID ASSEMBLY - valve (normally open), Includes: Ref. 10 - 17
1шт.
10
1301641C3
TRANSMISSION SLEEVE
SLEEVE - poppet
1шт.
11
1301642C1
WASHER
- spring retaining
1шт.
12
1301643C1
VALVE
ARMATURE - valve
1шт.
13
1301644C2
SPOOL
POPPET - valve
1шт.
14
1301821C1
SPRING
- poppet
1шт.
15
1301646C2
BUSHING,6.35mm ID x 15.88mm OD x 25.8mm L
- poppet
1шт.
16
1301639C1
PISTON
ORIFICE - valve, 0.055 inch opening
1шт.
17
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
Part of valve seal kit P/N 1282280C1
1шт.
112988A1
VALVE
SOLENOID ASSEMBLY - valve (normally closed), Includes: Ref. 18 - 28
1шт.
18
1301627C3
SLEEVE
- poppet
1шт.
19
1301640C1
SPRING
- poppet
1шт.
20
110550A1
VALVE POPPET
POPPET - valve
1шт.
21
1301648C1
ARMATURE
- valve
1шт.
22
1301624C1
BUSHING
- poppet
1шт.
23
1346430C1
RESTRICTOR
ORIFICE - valve, 0.062 inch opening
1шт.
24
238-6010
O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro
1шт.
Part of valve seal kit P/N 1282280C1
1шт.
25
1301632C1
CAP
COVER - coil
2шт.
26
1301633C1
COIL
- valve
2шт.
27
107825
NUT,Stamped, 1/2"-20
- hex, 1/2 inch NF
2шт.
28
225-20210
NUT,#10-32, Brass
2шт.
1282280C1
O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro
KIT - valve seal, Includes: Ref. 3, 4, 7, 9, 17 and 24. Also includes (1) 529909R1, O-ring, which is not used in this application.
1шт.
Выбрано товаров: 38
