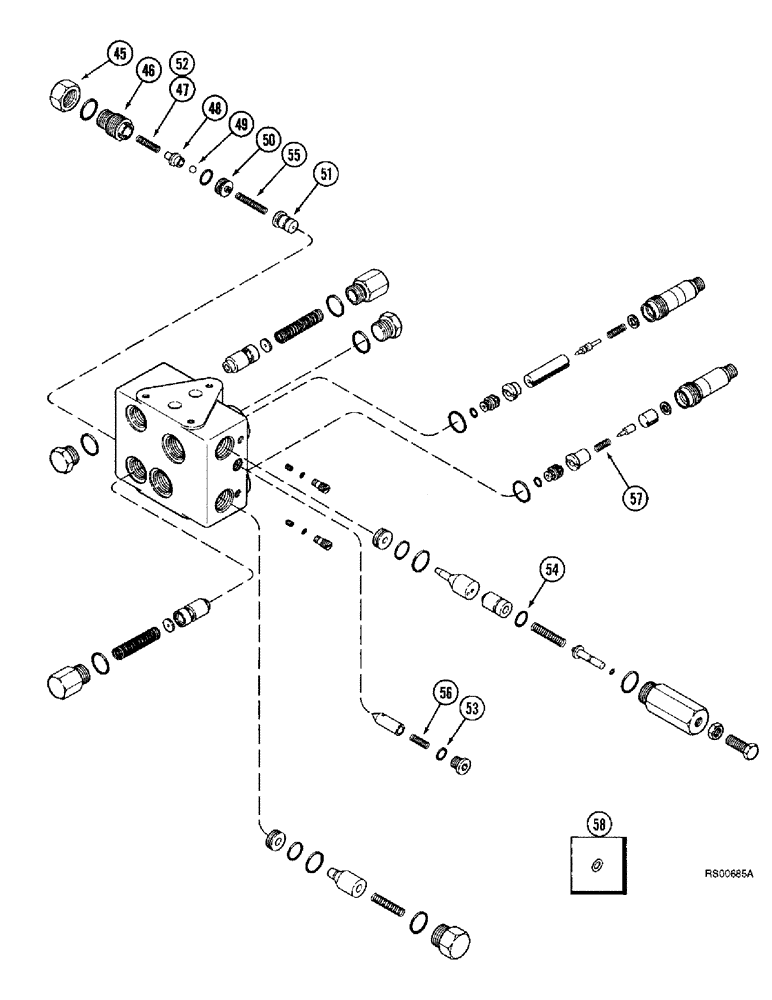

Запчасти Case IH 1680 (8-36) - HEADER VALVE (CONTD) (07) - HYDRAULICS

REF

INSTRUCTION

VALVE ASSEMBLY - header, prior to P.I.N. JJC0038001, Includes: Ref. 45 - 58 and 1 - 44 on Figure 8-34

1шт.

REF

INSTRUCTION

VALVE ASSEMBLY - header, P.I.N. JJC0038001 and after

1шт.

45

1301674C1

NUT

- hex, special, 1 inch

2шт.

46

1301675C1

PLUG,7/8" - 14 - 11/16" - 16 x 33.30mm

PLUG - valve

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

47

1272403C1

SPRING

- poppet

1шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

48

1301677C1

PIN

GUIDE - spring

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

49

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch, grade 24

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

50

1301654C1

NUT

ORIFICE - valve

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

51

1301678C1

VALVE

POPPET - valve

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

52

1301636C1

SPRING

- poppet

1шт.

53

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

Part of seal kit P/N 1282279C2

1шт.

54

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

-014, 70 Duro, .489" ID x .070" Thk

1шт.

Part of seal kit P/N 1282279C2

1шт.

55

1301679C2

SPRING

- orifice

2шт.

Used on valve assembly 1267036C92, prior to P.I.N. JJC0038001 only.

1шт.

56

1301729C1

SPRING

- poppet

1шт.

57

1301821C1

SPRING

- poppet

1шт.

530575R91

SHIM KIT

KIT - shim, Includes: Ref. 58

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.005 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.007 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.020 inch

1шт.

58

NSS

NOT SOLD SEPARAT

SHIM - relief valve 0.042 inch

1шт.

1282279C2

SEAL KIT

KIT - seal, Includes: Ref . 53 and 54 on Figures 8-34 and 8-36

1шт.
