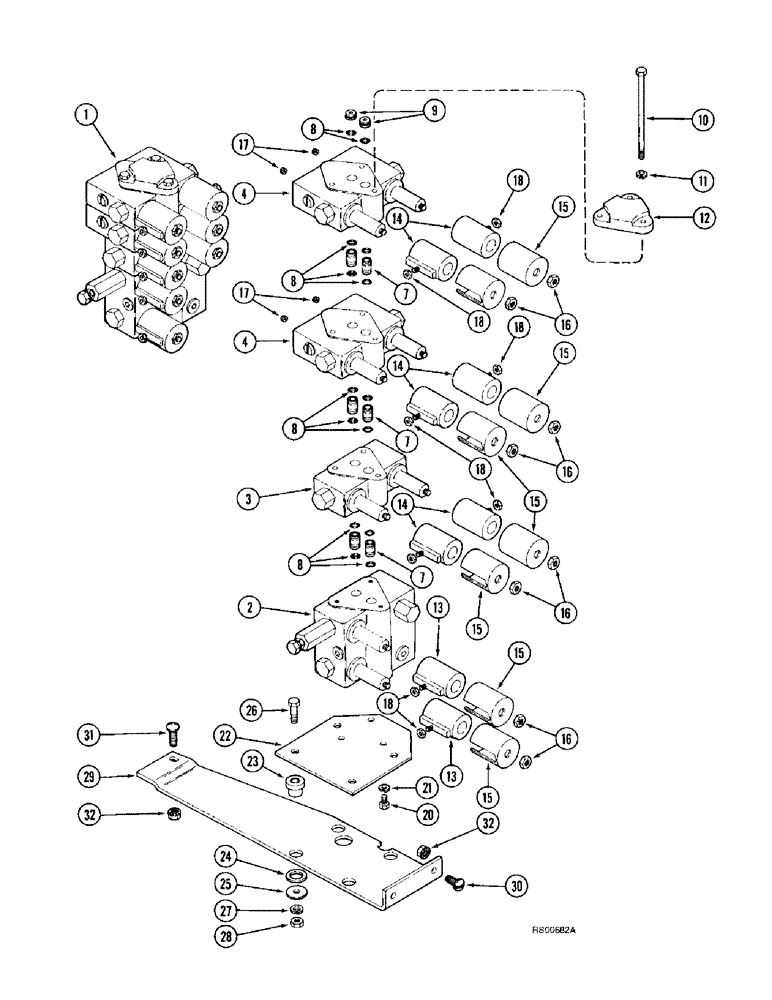

Запчасти Case IH 1680 (8-30) - CONTROL VALVE AND MOUNTING, WITH FORE AND AFT REEL CONTROL (07) - HYDRAULICS

1

NSS

NOT SOLD SEPARAT

VALVE ASSEMBLY - control, order components 2 - 18, Includes: Ref. 2 - 18

1шт.

2

REF

INSTRUCTION

VALVE ASSEMBLY - header, See Figure 8-35 for correct assembly

1шт.

3

REF

INSTRUCTION

VALVE ASSEMBLY - unload single/bi-directional, See Figure 8-38 or 8-40 for correct assembly

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - double piloted, See Figures 8-42 and 8-44

2шт.

7

1301630C2

TUBE,.344" ID, .5" OD, 15" Length

- through

6шт.

8

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

14шт.

9

1301634C2

PLUG

- cap

2шт.

10

413-468

BOLT,Hex, 1/4" - 20 x 4-1/4", Gr 5

- hex, 1/4 NC x 4-1/2 inch

3шт.

11

493-41026

LOCK WASHER,Ext Tooth, 1/4"

WASHER - external tooth lock, 1/4 inch

3шт.

12

85258C1

CAP

- end

1шт.

13

1301730C1

VALVE

COIL - valve

2шт.

14

1301633C1

COIL

- valve

6шт.

15

1301632C1

CAP

COVER - coil

8шт.

16

107825

NUT,Stamped, 1/2"-20

- hex, 1/2 inch NF

8шт.

17

1301637C1

ORIFICE

- valve

4шт.

18

225-20210

NUT,#10-32, Brass

8шт.

20

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

3шт.

21

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

22

183683C1

BAR

PLATE - control valve mounting

1шт.

23

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

INSULATOR - rubber

4шт.

24

495-81039

WASHER,25/32" x 1 1/4" x .120"

- flat, 25/32 x 1-1/4 x 7/64 inch

4шт.

25

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch

4шт.

26

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

- hex, 3/8 NC x 1-3/4 inch

4шт.

27

492-11038

LOCK WASHER,3/8"

4шт.

28

425-106

NUT,3/8"-16, Cl 5

4шт.

29

183684C1

SUPPORT

- control valve

1шт.

30

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

2шт.

31

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

BOLT - serrated slotted truss head, 5/16 NC x 1 inch

1шт.

32

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.
