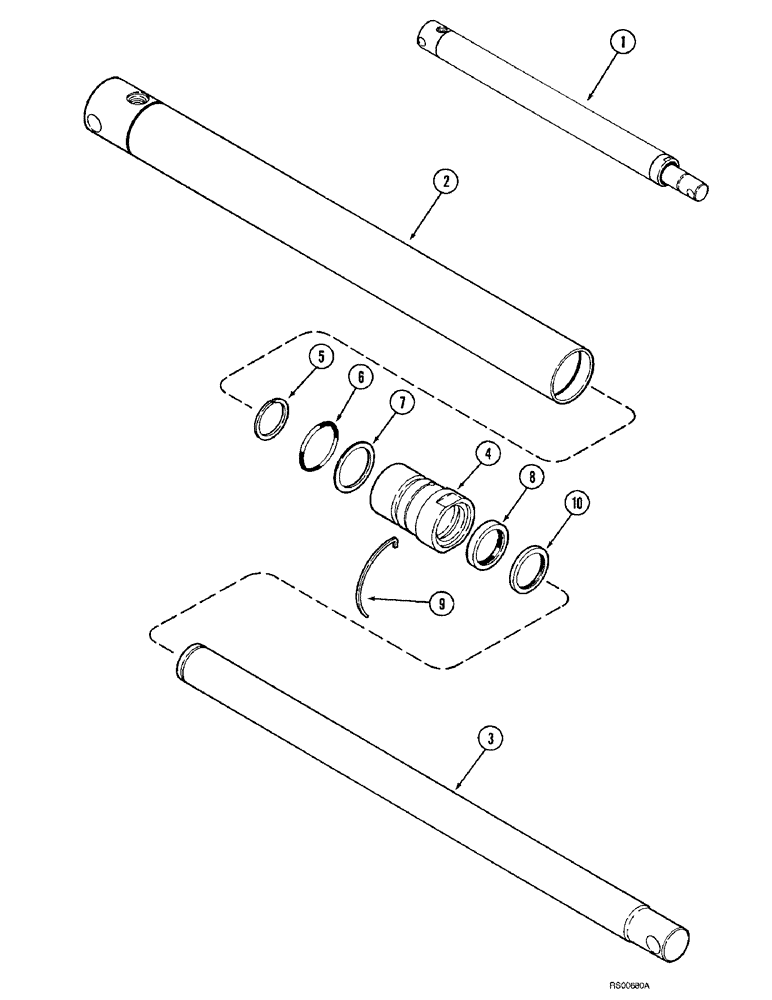

Запчасти Case IH 1680 (8-26) - HEADER LIFT CYLINDER (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, header lift, Includes: Ref. 2 - 10

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), PRIOR TO JJC0045689, ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, header lift. (1/86-12/92)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

2

NSS

NOT SOLD SEPARAT

BODY ASSEMBLY - cylinder

1шт.

3

127780C2

ROD

- piston

1шт.

4

142568C2

HEAD

GLAND - cylinder

1шт.

224718C92

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 5 - 10

1шт.

5

NSS

NOT SOLD SEPARAT

RING - stop, piston rod

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING - 2-1/2 x 2-11/16 inch

1шт.

7

NSS

NOT SOLD SEPARAT

WASHER - O-ring backup

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

9

NSS

NOT SOLD SEPARAT

RING - retaining

1шт.

10

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.
