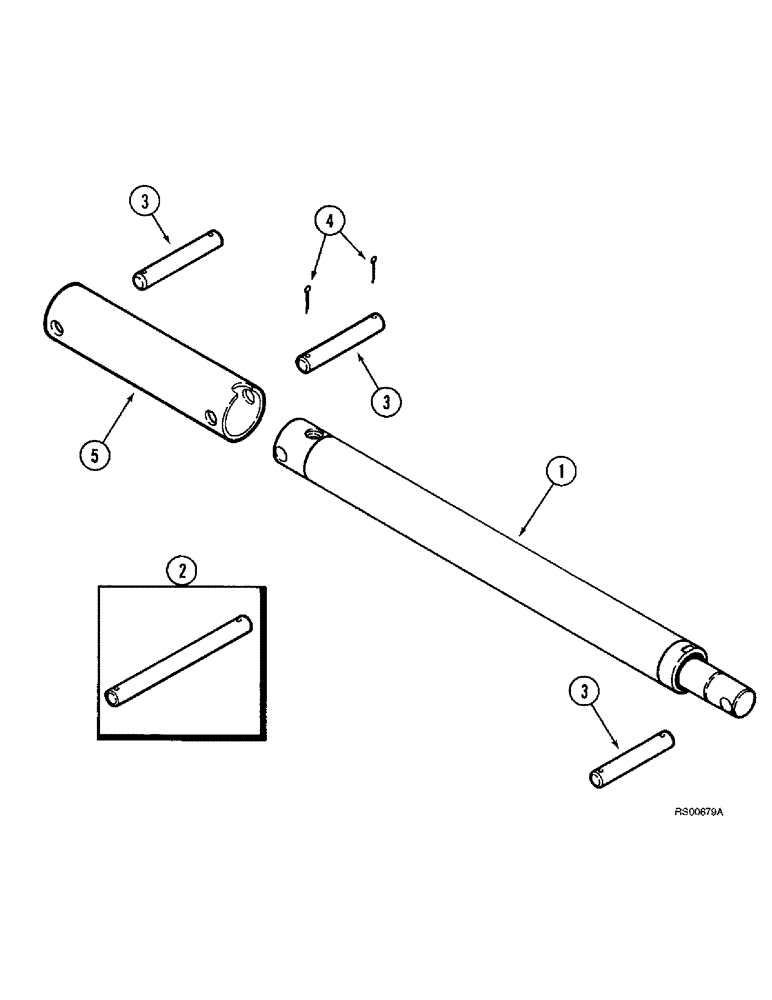

Запчасти Case IH 1680 (8-24) - HEADER LIFT CYLINDER MOUNTING (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, parts list Figure 8-26

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), PRIOR TO JJC0045689, ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke (1/86-12/92)

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch

2шт.

Used on combines with third lift cylinder.

1шт.

3

573762R1

PIN,25.4mm OD x 130.97mm L

- 1 x 5-5/32 inch

1шт.

4

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

5

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- cylinder extension

1шт.

Factory Installation

1шт.
