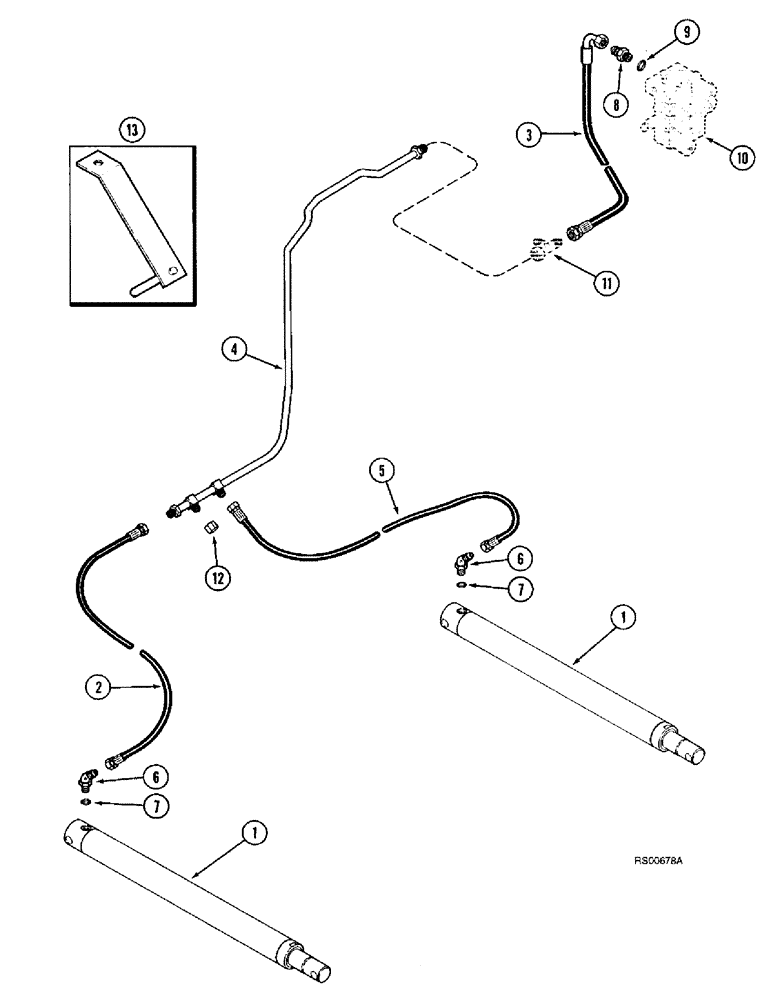

Запчасти Case IH 1680 (8-22) - HEADER LIFT CYLINDER SYSTEM, WITHOUT THIRD LIFT CYLINDER ATTACHMENT (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, header lift, parts list Figure 8-26

2шт.

1

127779C94R

REMAN-HYD CYLINDER

1680 CASE IH AXIAL-FLOW COMBINE (PRIOR TO S/N JJC0045689) (NORTH AMERICA), PRIOR TO JJC0045689, ASSEMBLY - 67 (2-5/8) ID x 521 mm (20-1/2 inch) stroke, header lift. (1/86-12/92)

2шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

2шт.

2

813610C1

HOSE

- 1270 mm (50 inch) long, header lift cylinder

1шт.

3

1310862C1

HOSE

- 737 mm (29 inch) long, header lift

1шт.

4

1321493C2

HYD TUBE

TUBE - header lift cylinder

1шт.

5

144140C1

HOSE,9.53mm ID x 787.4mm L, SAE 100R1

- 787 mm (31 inch) long, header lift cylinder

1шт.

6

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree, 3/4-16 inch flare x adj O-ring boss, Incl. Ref 7

2шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-34 for correct assembly

1шт.

11

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- swivel, 7/8-14 inch flare branch x flare x swivel, used with accumulator attachment, See Figure 8-80, item 8

1шт.

12

218-755

CAP,37 Degree, 3/4"-16

1шт.

13

173143C1

SUPPORT ASSY.

SUPPORT - header lift hose

1шт.
