Запчасти Case IH 1680 (8-16) - HEADER LIFT PUMP MOUNTING AND DRIVE (07) - HYDRAULICS

1

1272258C91

PUMP, HYDRAULIC

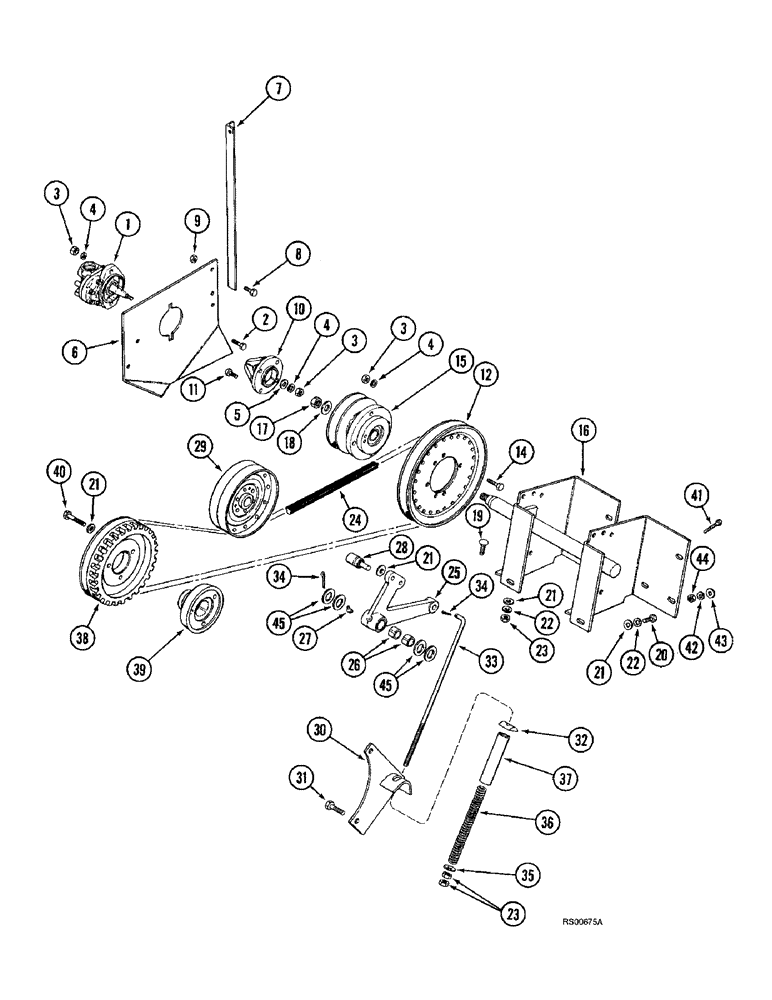

PUMP ASSEMBLY - header lift, new, parts list Figure 8-18

1шт.

1272258C92R

REMAN-HYD PUMP

1680, PRIOR TO S/N JJC0045689 (1/86-12/92). Reman for New P/N 1272258C91.

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

3

425-106

NUT,3/8"-16, Cl 5

7шт.

4

492-11038

LOCK WASHER,3/8"

11шт.

5

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

6

192958C5

PLATE

- hydraulic pump

1шт.

7

187778C2

ANGLE

- support

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

10

191207C1

HUB

- hydraulic pump

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

12

192943C1

PULLEY ASSY.

PULLEY - pump driven, 11-21/32 inch OD

1шт.

14

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

4шт.

15

REF

INSTRUCTION

PULLEY ASSEMBLY - unloader drive, See Figure 9E-10

1шт.

16

191228C4

BRACKET

- auxiliary drive rear

1шт.

17

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

1шт.

18

495-81255

WASHER,0.78" ID x 1.5" OD x 0.18" Thk

- flat, 25/32 x 1-1/2 x 11/64 inch

1шт.

19

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

8шт.

21

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

10шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

7шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

9шт.

24

191288C2

BELT,0.879" W x 96.11" L

V-BELT , Pump drive 0.879" W x 96.11" L

1шт.

25

192946C92

LEVER ASSY.

LEVER ASSEMBLY - pump idler pulley, Includes: Ref. 26

1шт.

26

188068C1

BUSHING,25.4mm ID x 28.57mm OD x 19.05mm L

- lever

2шт.

27

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

28

274844R91

BEARING ASSY,30mm OD x 73.66mm L

- idler pulley

1шт.

29

192865C1

PULLEY

- idler, 8 inch OD

1шт.

30

194729C2

SUPPORT

- pump drive pivot

1шт.

31

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

32

194652C1

PIVOT

- rod

1шт.

33

191823C1

ROD

- auxiliary drive jackshaft

1шт.

34

432-1216

COTTER PIN,3/16" x 1"

1шт.

35

495-81287

WASHER,13.49mm ID x 31.75mm OD x 3.4mm Thk

- flat, 17/32 x 1-1/4 x 7/64 inch

1шт.

36

V368

SPRING

- drive rod

1шт.

37

181119C1

SPACER

- drive rod

1шт.

38

196481C1

PULLEY

- auxiliary pump drive, 9-1/4 inch OD

1шт.

39

196482C2

HUB

- drive pulley

1шт.

40

426-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

- hex, 1/2 NC x 2-1/2 inch, grade 8

3шт.

41

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

4шт.

42

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

43

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

- flat, 11/32 x 1 x 3/32 inch, hardened

4шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

45

495-81073

WASHER,1-1/32" x 1-3/4" x .060" Thk

- flat, 1-1/32 x 1-3/4 x 1/16 inch

1шт.
