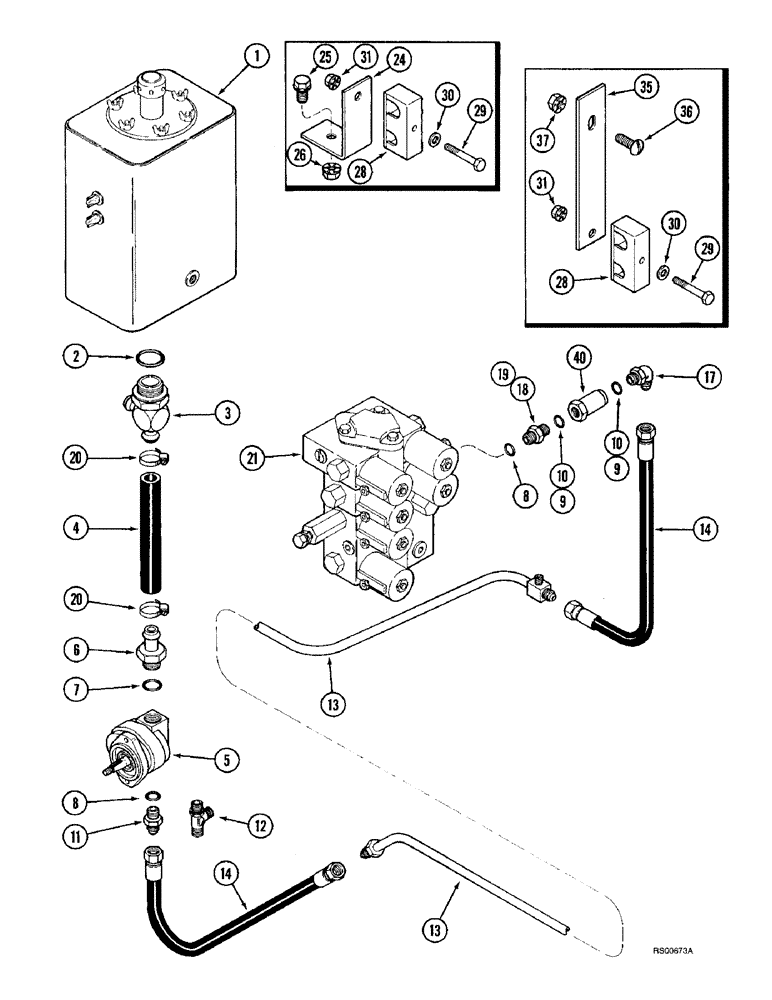

Запчасти Case IH 1680 (8-12) - HEADER LIFT SUPPLY SYSTEM (07) - HYDRAULICS

1

1301237C92

RESERVOIR

ASSEMBLY - hydraulic oil, parts list Figure 8-02

1шт.

2

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

24-1, 90 Duro, 1.72" ID x .118" Thk

6шт.

3

1301506C1

TEE

- adjustable, 1-7/8-12 thread x 1 inch OD beaded tube

1шт.

4

1272624C1

HOSE,1.00" ID x 8.25"

- Header lift pump suction 1.00" ID x 8.25"

1шт.

5

1272258C91

PUMP, HYDRAULIC

PUMP ASSEMBLY - header lift, new, parts list Figure 8-18

1шт.

1272258C92R

REMAN-HYD PUMP

1680, PRIOR TO S/N JJC0045689 (1/86-12/92). Reman for New P/N 1272258C91.

1шт.

1272258C92C

CORE-HYDRAULIC PUMP

Return Number

1шт.

6

180182C1

FITTING

CONNECTOR - 1-5/16-12 thread x 1 inch barb end

1шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

8

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, prior to P.I.N. JJC0038001, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

10

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, P.I.N. JJC0038001 and after, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

13

187811C1

HYD TUBE

TUBE - header lift pressure

1шт.

14

H169052

HYDRAULIC HOSE,12.7mm ID x 508mm L, SAE 100R1

Header Lift Presssure 12.70 mm ID x 508.00 mm, SAE 100R1

2шт.

15

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, prior to P.I.N. JJC0038001, Incl. Ref. 16

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

17

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree, 7/8-14 flare x 1-1/16-12 inch adj O-ring boss, P.I.N. JJC0038001 and after, Includes: Ref. 17A

1шт.

17a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

2шт.

18

1968919C1

FITTING

ADAPTER - reducer, 7/8-14 x 1-1/16-12 inch thread, P.I.N. JJC0038001 and after

1шт.

19

1267158C1

CONNECTOR, ELEC

CONNECTOR - straight, 7/8-14 inch O-ring boss, prior to P.I.N. JJC0038001

1шт.

19a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19b

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

20

214-1524

HOSE CLAMP,#24, 1.06" - 2", Type F Worm, W/ Liner

CLAMP - adj, 1-1/16 - 2 inch dia

2шт.

21

REF

INSTRUCTION

VALVE ASSEMBLY - control, See Figure 8-28 or 8-30 for correct assembly

1шт.

24

178950C1

ANGLE

SUPPORT - steering tubes

2шт.

25

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

26

231-5146

FLANGE NUT,3/8"-16

1шт.

28

121714C1

CLAMP

- header lift tubes

3шт.

29

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch

3шт.

30

496-21028

WASHER,.281" x 5/8" x .075", HDN

- flat, 9/32 x 5/8 x 5/64 inch, hardened

3шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

35

187510C2

BAR

- header lift tubes, 7-1/2 inch long

1шт.

36

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

- serrated slotted truss head, 5/16 NC x 3/4"

1шт.

37

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

40

1267150C91

FILTER ASSY

FILTER - valve pressure line, prior to P.I.N. JJC0038001, no longer available, for service order 1272346C1 filter, 1968919C1 adapter, and 218-5119 elbow, items 40, 18 and 17

1шт.

40

1272346C1

FILTER

- valve pressure line, P.I.N. JJC0038001 and after

1шт.
