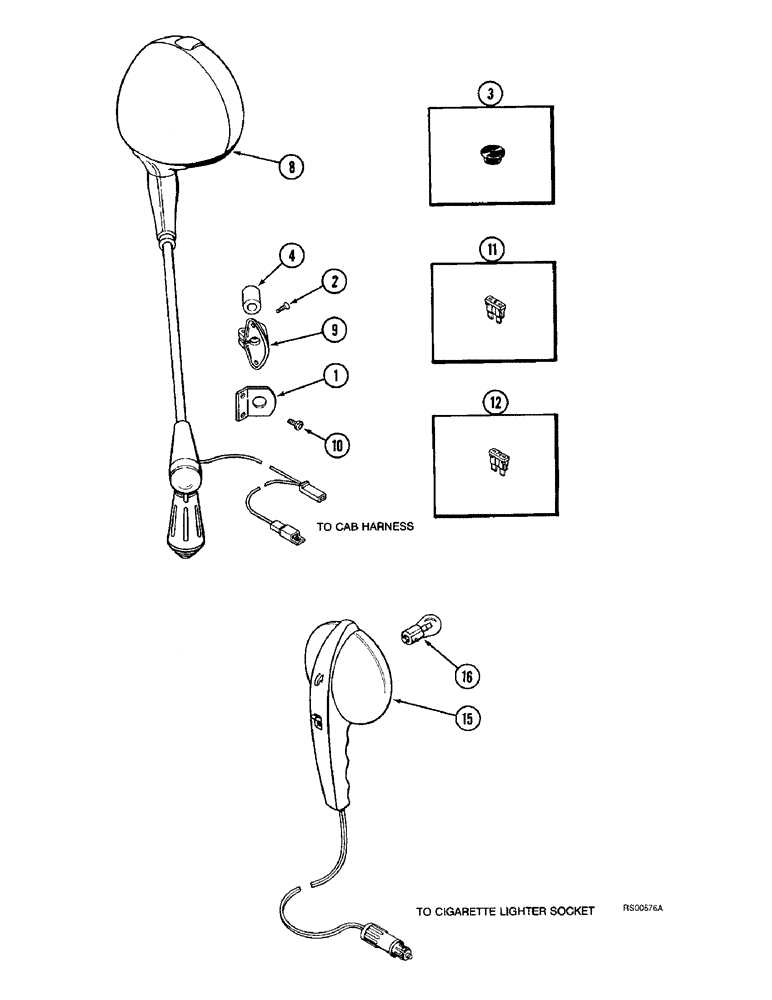

Запчасти Case IH 1680 (4-80) - MOUNTED SPOTLAMP, HAND SPOTLAMP (06) - ELECTRICAL

1

1329859C1

BRACKET

- flood lamp

1шт.

2

264-2056

SELF-TAP SCREW,Slotted Pan Hd, #10 x 3/8"

SCREW - self-tapping, pan head slotted, No. 10 NC x 3/8 inch

2шт.

3

1330144C1

GROMMET

- wire

1шт.

4

1330145C1

BUSHING

- pivot

1шт.

8

91938C1

INTERIOR LIGHT

LAMP - flood

1шт.

9

92015C1

BRACKET

- flood lamp

1шт.

10

27073R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"

SCREW - tapping, No. 10-16 x 1/2 inch

2шт.

11

A149798

FUSE

- tan, 5 ampere

1шт.

12

A149799

FUSE

- brown, 7-1/2 ampere

1шт.

15

1312876C1

LAMP

SPOTLAMP ASSEMBLY - hand held, hand spotlamp, Includes: Ref. 16

1шт.

16

3131227R1

BULB,P25-1, 12V, 21W

Spotlight, Hand P25-1, 12V, 21W

1шт.
