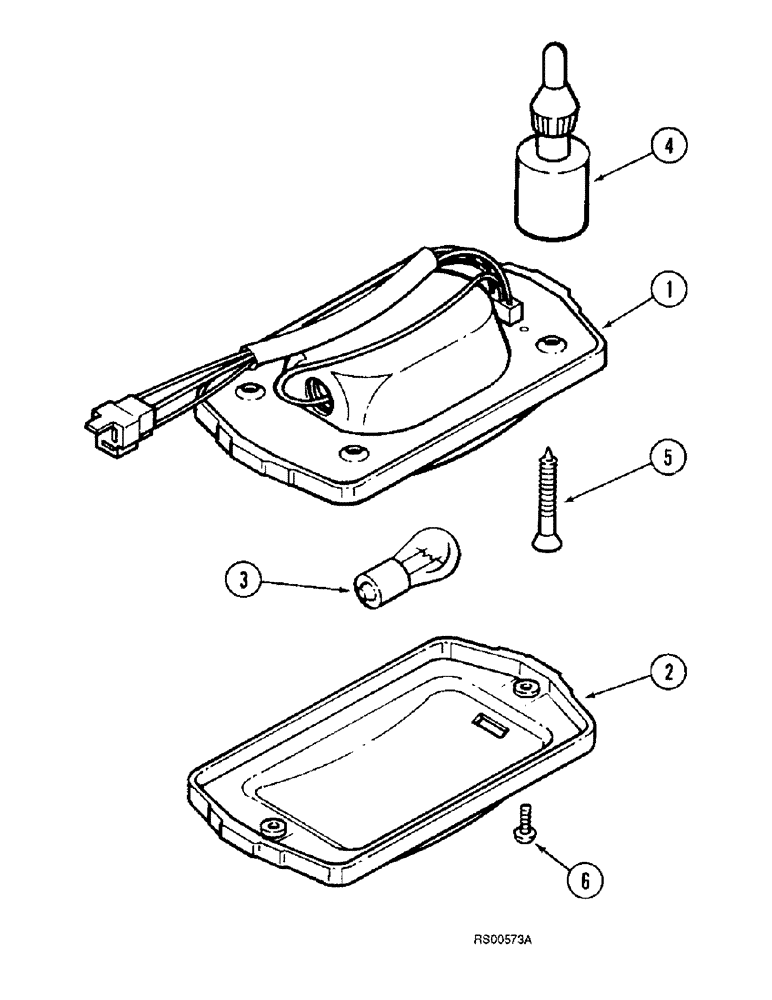

Запчасти Case IH 1680 (4-74) - DOME LAMP (06) - ELECTRICAL

1

245659C91

LAMP

ASSEMBLY - dome, Includes: Ref. 2 & 3

1шт.

2

245679C1

LENS

- dome lamp

1шт.

3

142457

BULB,C6, #1142, 12.8V

LAMP - type C-6, No. 1142

1шт.

117995C1

PACKAGE

KIT - fastener, package of 5, Includes: Ref. 4

1шт.

4

NSS

NOT SOLD SEPARAT

FASTENER - dome lamp

4шт.

5

27071R1

SELF-TAP SCREW,Cross Oval Hd, #8 x 1 1/2"

SCREW - tapping, No. 8-18 x 1-1/2 inch

4шт.

6

NSS

NOT SOLD SEPARAT

SCREW - lens mounting, order 245659C91 lamp assembly

2шт.
