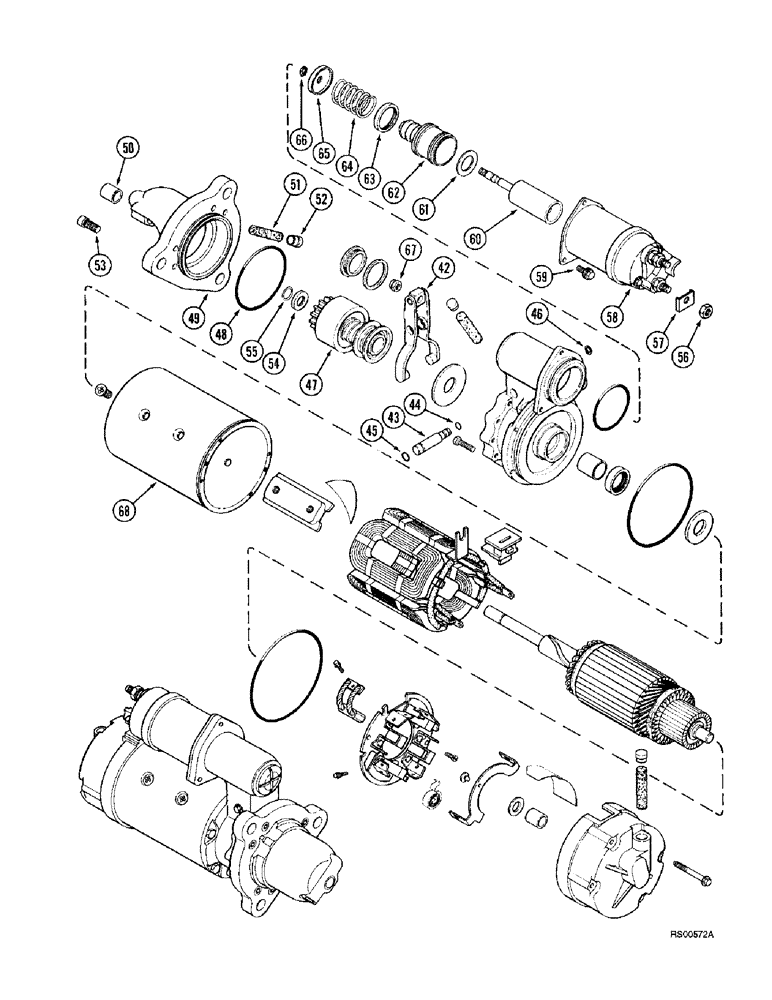

Запчасти Case IH 1680 (4-72) - STARTER, DELCO REMY, HEAVY DUTY SEALED (CONTD) (06) - ELECTRICAL

REF

INSTRUCTION

STARTER ASSEMBLY - engine, Includes: Ref. 30 - 70 & 8 - 29 and bolt, nuts, and washers on Figure 4-70

1шт.

30

A49625

SPACER

- armature

1шт.

31

A49580

HOUSING

ASSEMBLY - lever, Includes: Ref. 32 - 41

1шт.

32

A49581

BUSHING

- housing

1шт.

33

A49567

WICK

- oil, armature bushing

1шт.

34

A49573

PLUG

- oil wick

1шт.

35

A49562

OIL SEAL

- oil

1шт.

36

A49582

WASHER

- brake

1шт.

37

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

38

238-5243

O-RING,0.139" Thk x 4.11" ID, -243, Cl 5, 75 Duro

- 4-1/4 ID x 1/8 inch wide

1шт.

39

R21587

PLUG

- inspection, lever housing

1шт.

40

A41924

GASKET

- inspection plug

1шт.

41

A187741

BOLT,Torx Drive, 1/4" - 28 x 1", T Pt

- housing retaining

5шт.

Used with starter 1993891

1шт.

41

414-416

BOLT,Hex, 1/4" - 28 x 1", Gr 5

- hex, 1/4 NF x 1 inch

5шт.

Used with starters 1990321 and 1993791

1шт.

42

A49583

LEVER

- shift

1шт.

43

A187739

SHAFT

- shift lever

1шт.

Used with starter 1993891

1шт.

43

A42199

PIN

SHAFT - shift lever

1шт.

Used with starters 1990321 and 1993791

1шт.

44

A47259

O-RING,0.244" ID x 0.391" OD

- shaft

1шт.

45

A47258

O-RING,0.369" ID x 0.515" OD

- 1/4 ID x 1/16 inch wide

1шт.

46

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

47

A49754

DRIVE

- motor

1шт.

48

A43854

O-RING,3.237" ID x 0.106" THK

- housing

1шт.

49

1986351

HOUSING

ASSEMBLY - drive end, Includes: Ref. 50 - 52

1шт.

50

A40868

BUSHING

- frame, commutator

1шт.

51

A49567

WICK

- oil, armature bushing

1шт.

52

A49573

PLUG

- oil wick

1шт.

53

10499637

SCREW

- drive housing

6шт.

Used with starter 1993891

1шт.

53

D32489

HEX SOC SCREW,5/16" - 18 x 0.86"

SCREW - drive housing

6шт.

Used with starters 1990321 and 1993791

1шт.

54

A49585

STOP

- pinion

1шт.

55

A49586

CLIP,ELECTRICAL

RING - retaining

1шт.

56

10497770

BOLT,Torx Hd, 1/4" - 20

- torx head, special, 1/4 NC x 35/64 inch (1993891 starter)

1шт.

56

425-106

NUT,3/8"-16, Cl 5

(1993791 and 1990321 starters) 3/8"-16, G5

1шт.

57

1987678

CLIP

- field coil connect

1шт.

58

1115628

SOLENOID

SWITCH - solenoid, Includes: Ref. 59 - 67

1шт.

Used with starter 1993891

1шт.

58

1115612

SOLENOID SWITCH

SWITCH - solenoid (1993791 starter), Includes: Ref. 59 - 67

1шт.

58

1115589

SOLENOID SWITCH

SWITCH - solenoid (1990321 starter), Includes: Ref. 59 - 67

1шт.

59

A49587

CAPTIVE WASHER SCREW,Hex, 1/4" - 20 x 0.50"

SCREW - special

3шт.

60

A49757

PLUNGER

- solenoid

1шт.

61

A41922

WASHER

- plunger seat

1шт.

62

A49589

BOOT

- plunger

1шт.

63

A43380

BACK-UP RING

SEAT - plunger spring

1шт.

64

A41242

SPRING

- plunger return

1шт.

65

A43419

SEAT

- spring

1шт.

66

100-1137

SNAP RING,#37, Ext

Ring, Snap, #37, Ext

1шт.

67

131-489

LOCK NUT,5/16"-24, G8

NUT - hex, self-locking

1шт.

68

NSS

NOT SOLD SEPARAT

HOUSING - (Order 1993891)

1шт.

69

L128826

SHIELD

GUARD - starter terminal (Not Shown)

1шт.

70

10468109

CONNECTOR, ELEC

CONNECTOR - straight (Not Shown)

1шт.
