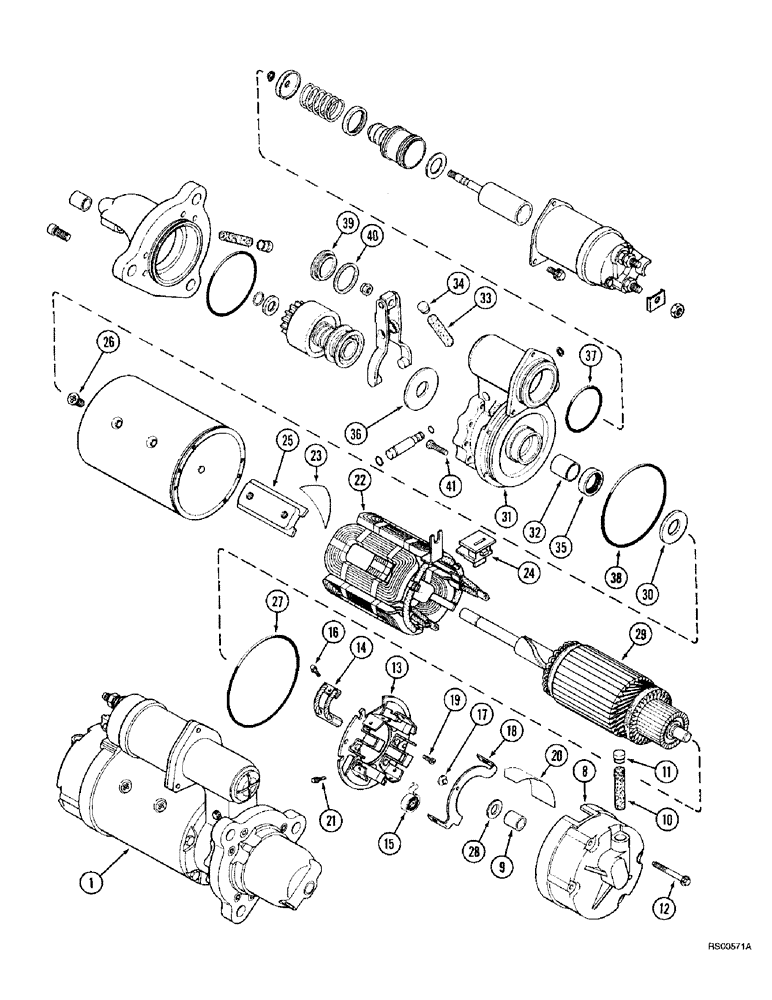

Запчасти Case IH 1680 (4-70) - STARTER, DELCO REMY, HEAVY DUTY SEALED (06) - ELECTRICAL

1

1993891

STARTING MOTOR

STARTER ASSEMBLY - engine, replaces 1990321 and 1993791 starter assembly, Includes: Ref. 8 - 29 and bolt, nuts, and washers listed below and 30 - 70 on Figure 4-72

1шт.

1

104211A1GV

STARTER MOTOR

Value

1шт.

1

104211A1R

REMAN-STARTER

Remanufactured Starter

1шт.

1

104211A1C

CORE-STARTER

Return Number

1шт.

1

87297380

REMAN-STARTER

Remanufactured Starter

1шт.

1

87297381

CORE-STARTER

Return Number

1шт.

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

BOLT - hex, 3/8 NC x 4-1/2 inch

3шт.

425-106

NUT,3/8"-16, Cl 5

NUT, 3/8"-16, G5

4шт.

492-11038

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

225-14210

NUT,#10-32

NUT, #10-32

1шт.

8

10468709

HOUSING

FRAME ASSEMBLY - commutator end, Includes: Ref. 9 - 11

1шт.

Used with starter 1993891

1шт.

8

1985315

FRAME

FRAME ASSEMBLY - commutator end, Includes: Ref. 9 - 11

1шт.

Used with starters 1990321 and 1993791

1шт.

9

A40868

BUSHING

BUSHING - frame, commutator

1шт.

10

A49769

WICK

WICK - oil, armature bushing

1шт.

Used with starter 1993891

1шт.

10

A49567

WICK

WICK - oil, armature bushing

1шт.

Used with starters 1990321 and 1993791

1шт.

11

A49573

PLUG

PLUG - oil wick

1шт.

12

A49574

CAPTIVE WASHER SCREW,Torx, #10 - 32 x 2.28"

BOLT AND WASHER - commutator frame

4шт.

13

14068705

BRUSH PLATE ASSEMBLY - commutator frame, Includes: Ref. 14 - 18

1шт.

Used with starter 1993891

1шт.

13

1985303

PLATE

BRUSH PLATE ASSEMBLY - starter, Includes: Ref. 14 - 18

1шт.

Used with starters 1990321 and 1993791

1шт.

14

1852889

BRUSH, COMMUTATOR

BRUSH BRUSH - starter

1шт.

15

A49575

SPRING

SPRING - brush

4шт.

16

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

4шт.

Used with starter 1993891

1шт.

16

A49576

SELF-TAP SCREW,Hex Washer, #8 - 32 x 0.44"

SCREW - brush attaching

4шт.

Used with starters 1990321 and 1993791

1шт.

17

A49561

INSULATOR

INSULATOR - conductor

1шт.

18

A49577

TERMINAL STRIP

CONDUCTOR - starter

1шт.

19

A49753

PIN, SPLIT (COTTER)

PIN, COTTER PIN - roll

2шт.

Used with starter 1993891

1шт.

19

177-134

SCREW,Sl Fil Hd, #10 - 32 x 7/16""

SCREW - machine, brush plate

2шт.

Used with starters 1990321 and 1993791

1шт.

20

NSS

NOT SOLD SEPARAT

INSULATOR - brush plate

2шт.

21

A47894

SCREW,#8 - 32 x 5/16"

SCREW - brush retainer

2шт.

22

10496940

COIL

COIL - field

1шт.

Used with starter 1993891

1шт.

22

1985324

COIL

COIL - field

1шт.

Used with starters 1990321 and 1993791

1шт.

23

A41977

RUBBER INSULATOR

INSULATOR - field coil

2шт.

24

A49500

RUBBER INSULATOR

INSULATOR - outer, field terminal (Not Shown)

1шт.

Used with starter 1993891

1шт.

A49501

RUBBER INSULATOR

INSULATOR - inner, field terminal (Not Shown)

1шт.

Used with starter 1993891

1шт.

24

1985318

GROMMET

GROMMET - field coil

1шт.

Used with starters 1990321 and 1993791

1шт.

25

A49579

PLATE

POLE SHOE - field

4шт.

26

142955A1

SCREW,Torx Flat Hd, Csk, 3/8" - 24 x 0.735"

SCREW - machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

Used with starter 1993891

1шт.

26

188-100

SCREW,Cross Flat Hd, 3/8"-24 x 5/8"

SCREW - machine, flat Phillips, 3/8 NF x 21/32 inch

8шт.

Used with starters 1990321 and 1993791

1шт.

27

238-5158

O-RING,0.103" Thk x 4.737" ID, -158, Cl 5, 75 Duro

O-RING, -158, 70 Duro, 4.737" ID x .103" Thk

1шт.

28

195-2056

WASHER,5/8" x 1" x .065"

WASHER - flat, 9/16 x 1 x 1/16 inch

1шт.

29

1985249

ARMATURE

ARMATURE - starter

1шт.
