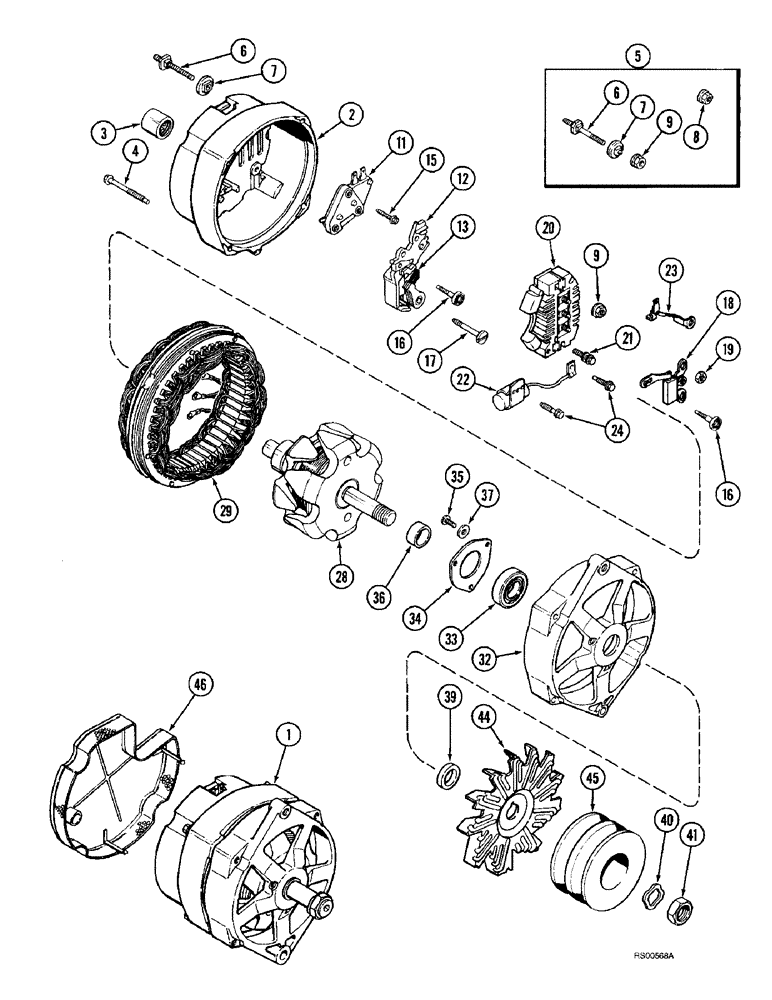

Запчасти Case IH 1680 (4-64) - ALTERNATOR, 105 AMPERE DELCO-REMY (06) - ELECTRICAL

1

A163085

ALTERNATOR

ALTERNATOR ASSEMBLY - engine, replaces 245713C94 alternator assembly, Includes: Ref. 2 - 41

1шт.

1

87297294

REMAN-ALTERNATOR

Reman For New PN A163085

1шт.

1

87297295

CORE-ALTERNATOR

Return Part Number

1шт.

1

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

1

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

1

104023A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 80 AMP Alternator

1шт.

1

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

1

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

1

104024A1C

CORE-ALTERNATOR

Return Part Number\r\n, 12 VOLT, 100 AMP Alternator

1шт.

1

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 135 ampere

1шт.

1

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

2

A48252

FRAME

FRAME ASSEMBLY - slip ring end, Includes: Ref. 3

1шт.

3

A48253

ROLLER BEARING

BEARING - roller

1шт.

4

463-11028

SCREW,Hex Hd, #10-24 x 1 3/4"

SCREW - machine, hex head, No. 10 NC x 1-3/4 inch

4шт.

5

A47597

TERMINAL CONNECTOR

KIT - terminal, battery

1шт.

6

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

7

NSS

NOT SOLD SEPARAT

INSULATOR - terminal

1шт.

8

NSS

NOT SOLD SEPARAT

NUT - terminal

1шт.

9

NSS

NOT SOLD SEPARAT

NUT - terminal

1шт.

11

A45213

REGULATOR

REGULATOR - voltage

1шт.

12

A48256

HOLDER

HOLDER - brush

1шт.

13

A47987

BRUSH, COMMUTATOR

BRUSH BRUSH - alternator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

1шт.

17

A48257

SCREW,#8 - 32 x 1.486"

SCREW - brush holder

1шт.

18

A48254

DIODE

DIODE - trio

1шт.

19

225-14108

NUT,#8-32

NUT - hex, No. 8 NC

3шт.

20

A48255

RECTIFIER

RECTIFIER BRIDGE - alternator

1шт.

21

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge retaining

1шт.

22

A47734

CAPACITOR

CAPACITOR - alternator

1шт.

23

A48258

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor bracket

2шт.

28

A48250

ROTOR

ROTOR - alternator

1шт.

29

A48251

STATOR

STATOR - alternator

1шт.

32

A48259

FRAME

FRAME - drive end

1шт.

33

A49389

BEARING ASSY

BEARING - ball

1шт.

34

R15101

PLATE

PLATE - bearing retainer

1шт.

35

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - machine, round head slotted, No. 10 NC x 3/8 inch

3шт.

36

A48261

COLLAR

COLLAR - rotor shaft

1шт.

37

495-11022

WASHER,5.56mm ID x 11.13mm OD x 1.25mm Thk

WASHER, (Flat, 7/32" x 7/16" x 3/64") #10

3шт.

39

A48260

COLLAR

COLLAR - rotor shaft

1шт.

40

R16171

SPRING WASHER

WASHER - lock

1шт.

41

A25546

NUT

NUT - pulley and fan retaining

1шт.

44

A164281

FAN

FAN - alternator ventilating

1шт.

45

L59716

PULLEY

PULLEY - alternator

1шт.

46

33-1391T1

COVER

SHIELD - alternator

1шт.
