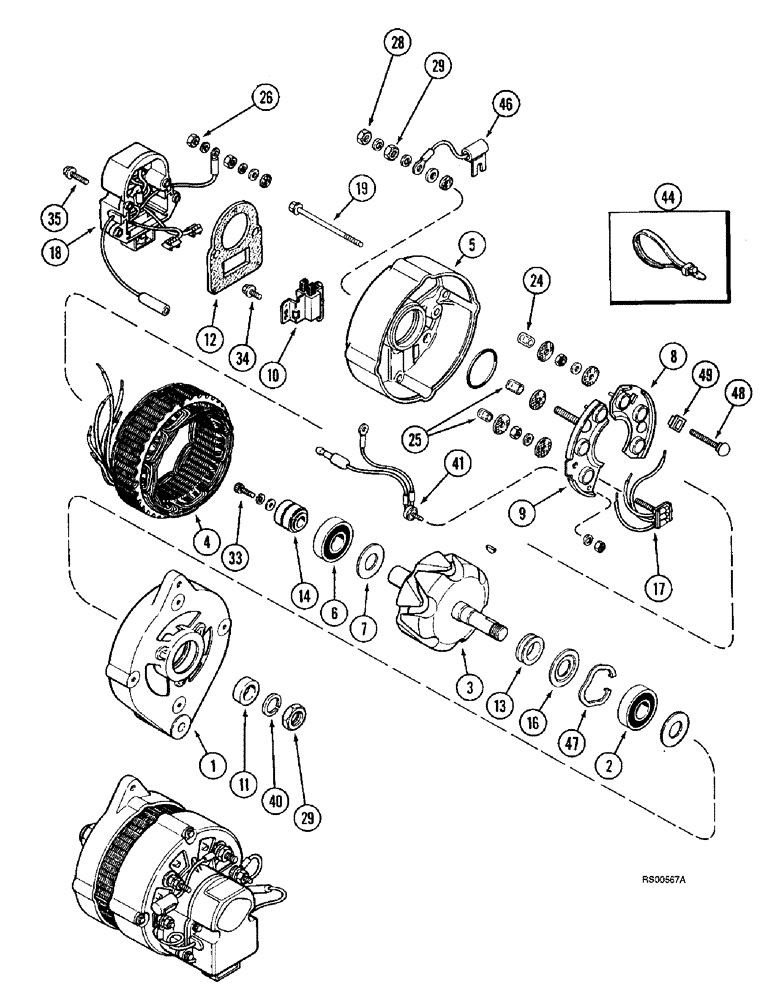

Запчасти Case IH 1680 (4-62) - ALTERNATOR, 90 AMPERE MOTOROLA (06) - ELECTRICAL

NSS

NOT SOLD SEPARAT

ALTERNATOR ASSEMBLY - 90 ampere, Includes: Ref. 1 - 49

1шт.

To replace Motorola alternator 245713C94 order Bosch alternator 91448C2 and alternator conversion kit 19790358C1

1шт.

87297294

REMAN-ALTERNATOR

Remanufactured Alternator

1шт.

87297295

CORE-ALTERNATOR

Return Part Number

1шт.

146466C91

ALTERNATOR

Alternator, 12 VOLT, 80 AMP

1шт.

104023A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 80 AMP Alternator

1шт.

104023A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 80 AMP Alternator

1шт.

146472C91

GENERATOR

ALTERNATOR-GENERATOR, Niefoff, metric, 100 ampere

1шт.

104024A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator

1шт.

104024A1C

CORE-ALTERNATOR

Return Part Number, 12 VOLT, 100 AMP Alternator

1шт.

125849A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 135 ampere

1шт.

125849A1C

CORE-ALTERNATOR

Return Part Number

1шт.

1

91533C1

HOUSING

HOUSING - front

1шт.

2

76675C91

BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"

BEARING - front

1шт.

3

91534C1

ROTOR

ROTOR - alternator

1шт.

4

91535C1

STATOR

STATOR - alternator

1шт.

5

91536C1

HOUSING

HOUSING - rear

1шт.

6

76675C91

BALL BEARING,0.6693" ID x 1.5748" OD x 1.724"

BEARING - front

1шт.

7

91537C1

RETAINER

RETAINER - rear bearing

1шт.

8

91538C1

RECTIFIER

RECTIFIER - diode negative

1шт.

9

91539C1

RECTIFIER

RECTIFIER - diode positive

1шт.

10

91540C1

BRACKET

BRUSH - alternator

1шт.

11

91541C2

SPACER

SPACER - fan

1шт.

12

A41341

GASKET

GASKET - regulator

1шт.

13

91543C1

RING

RING - V

1шт.

14

A44581

RING

RING - slip

1шт.

91544C1

SPACER

SPACER - not shown

1шт.

16

91545C1

SEALING RING

RING - seal

1шт.

17

91546C1

RECTIFIER

RECTIFIER - diode field

1шт.

18

91547C2

REGULATOR

REGULATOR - voltage

1шт.

19

91548C1

BOLT

BOLT - through

2шт.

91549C1

WASHER

WASHER - 1/4 x 3/4 inch

1шт.

91550C1

SLEEVE

SLEEVE - plastic, No. 10 x 19/32 inch

1шт.

450145C1

WASHER

WASHER - No. 10 x 3/4 inch, not shown

1шт.

23

91551C1

INSULATOR

INSULATOR - sleeve, 1/4 x 1/2 inch

1шт.

24

91552C1

INSULATOR

INSULATOR - sleeve, No. 10 x 1/2 inch

1шт.

25

91553C1

INSULATOR

INSULATOR - sleeve, 3/4 x 1/16 x 17/64 inch

1шт.

26

91554C1

NUT

NUT - hex, No. 10-24

1шт.

91555C1

NUT

NUT - hex lock, No. 10-24

1шт.

28

91556C1

NUT

NUT - hex, 1/4 inch

1шт.

29

91557C1

NUT

NUT - hex, 5/8 inch

1шт.

91558C1

NUT

NUT - hex, not shown

1шт.

91559C1

NUT

NUT - square, No. 10-32

1шт.

225-14210

NUT,#10-32

NUT, #10-32

1шт.

33

91561C1

SCREW,Hex, 5/8" - 10 x 32"

SCREW - No. 10-32 x 5/8 inch

1шт.

34

91562C1

SELF-TAP SCREW,Hex, 8"-20 x 1/2"

SCREW - tapping, No. 8 x 1/2 inch

1шт.

35

91563C1

SELF-TAP SCREW,8" x 3/4"

SCREW - tapping, No. 8 x 3/4 inch

1шт.

A49693

WASHER

WASHER - special, not shown

1шт.

91565C1

WASHER

WASHER - No. 10 x 5/16 inch, not shown

1шт.

91566C1

LOCK WASHER

WASHER - lock, not shown

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

40

91568C1

LOCK WASHER

WASHER - lock, 5/8 inch

1шт.

41

91569C1

SWITCH

SWITCH - thermal

1шт.

91570C1

BRACKET

BRACKET - identification, not shown

1шт.

91571C1

INSULATOR

INSULATOR - armite, not shown

1шт.

44

869707C1

STRAP,368.3mm L

STRAP - nylon

1шт.

91573C1

CONNECTOR, ELEC

CONNECTOR CONNECTOR - sleeve, not shown

1шт.

46

91574C1

CAPACITOR

CAPACITOR - regulator

1шт.

47

A43394

RETAINER

RETAINER - front bearing

1шт.

48

91935C1

BOLT

BOLT - carriage, No. 10-24 x 1/2 inch

1шт.

49

91936C1

INSULATOR

INSULATOR - molded square

1шт.
