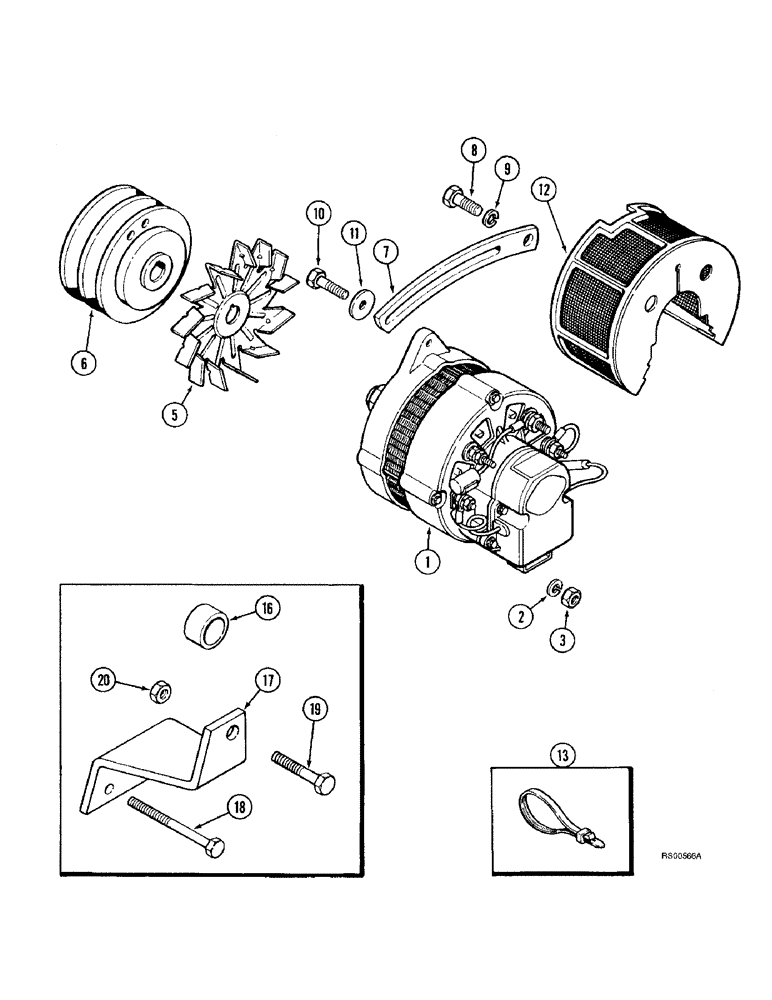

Запчасти Case IH 1680 (4-60) - ALTERNATOR MOUNTING, MOTOROLA (06) - ELECTRICAL

1

REF

INSTRUCTION

ALTERNATOR ASSEMBLY - 90 ampere, Motorola, parts list Figure 4-62

1шт.

2

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

3

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

5

221425R1

FAN

- alternator

1шт.

6

131042C1

PULLEY

- alternator

1шт.

7

532418R1

BRACE

- alternator

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

492-11038

LOCK WASHER,3/8"

1шт.

10

1014921C1

BOLT

BOLT - hex, 8 x 30 mm

1шт.

11

396-41034

WASHER,8.74mm ID x 25.4mm OD x 2.49mm Thk

- flat, 11/32 x 1 x 3/32 inch, hardened

1шт.

11

30183R1

WASHER,M8 x 21.5 x 2.5, HT

- flat, 9 x 21 x 3 mm

1шт.

12

245165C1

SHIELD

- alternator cover

1шт.

13

245163C1

STRAP

- shield

1шт.

16

1982256C1

SPACER

- pulley, bosch

1шт.

17

1977053C1

SUPPORT ASSY.

SUPPORT - alternator, bosch

1шт.

18

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

- hex, 5/16 NC x 3-1/2 inch, bosch

1шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Bosch Hex, 3/8"-16 x 2", G5

1шт.

20

429-106

NUT,3/8"-16, G8

- hex, 3/8 inch NC, grade 8, bosch

1шт.
